• Model NO.：GD13823
• Trademark：GOLD
• Origin：Chongqing China(Mainland)
• HS Code：9031809090
• Production Capacity：500 Sets, Year

Basic Info.

Model NO. GD13823 Trademark GOLD Origin Chongqing China(Mainland) HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

EN 13823 Single Burning Item SBI For Building Materials




Introduction

EN 13823 Single Burning Item SBI For Building Materials (SBI), as European's the evaluation of fire-resistance performance of building materials ,measures heat release rate (H.R.R), smoke growth rate index (SPR), oxygen consumption, CO, CO2 production, mass loss rate and so on.

EN 13823 Single Burning Item SBI For Building Materials test method is to measure response behavior of the product for building materials (except flooring materials) against fire when the product for building materials is exposed to heat attack(by Sand-Box burner of propane fuel) from Single Burning Items.

The specimen is settled on the Trolley (moving cart) located in Frame just below the emission system. Response of specimen against burner is displayed by mechanically and visually. In mechanically, it calculates Heat Release Rate (H.R.R) and Smoke Release Rate (S.R.R), and physical properties are evaluated by visual observation. Measuring range of SBI, Fire Growth Rate Index (FIGRA) by oxygen consumption quantity of combustion products is the most representative measuring element; otherwise, representative measuring elements are oxygen consumption, CO, CO2 production, Smoke Growth Rate Index (SMOGRA) and so on. The maximum heat release rate can be measured up to 1MW.

Standard

• BS EN 13823: Reaction to fire tests for building products-Building products excluding floorings exposed to the thermal attack by a single burning item

Specification

Size:

Test Room (mm) : 3,000 (w) * 3,000 (d) * 2,600 (h)

Hood  (mm) : 1,450 (w) * 1,255 (d) * 1,093 (h)

Sandbox Burner (mm) : 250 (w) * 250 (d) * 80 (h)

Power Voltage : 220 V,60 Hz ,20 A

Exhaust : 0.55 m3/s ~ 0.65 m3/s

Control Unit

• Main Sandbox Burner & Trolley

• Fixed Frame & Auxiliary Burner

• Hood

• Collector

• Measuring Tube(J-Shaped)

• Sandbox Burner ( Main & Auxiliary )

• Gas Diverter

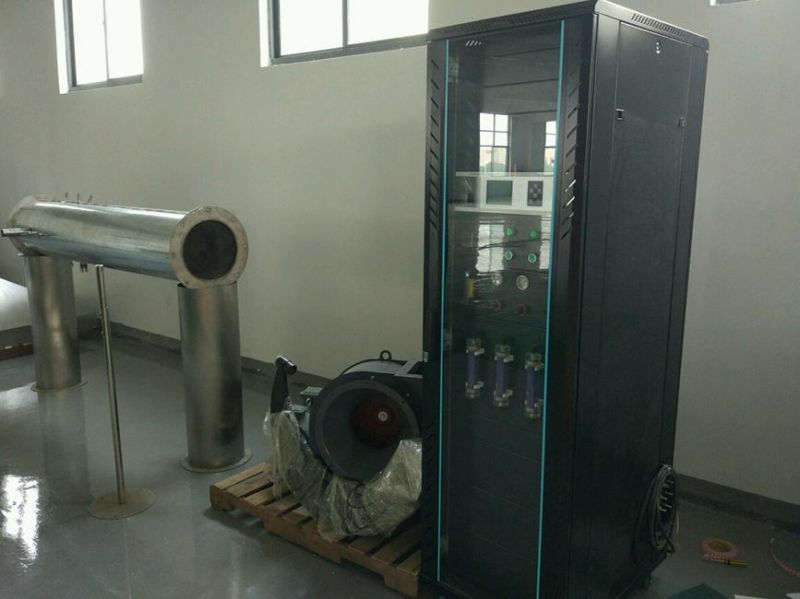

• Smoke Exhaust System

• Three Thermocouples(by EN 60584-1)

• Bi-directional Probe

• Gas Sampling Probe

• Analyzer ( O2 ,CO2, CO )

• Light Attenuation System

• Atmospheric Pressure Measurement

• Cold Trap

Auxiliary

• Propane Gas & 2 Stage Regulator

• N2 & CO/CO2 Gas & 2 Stage Regulator
