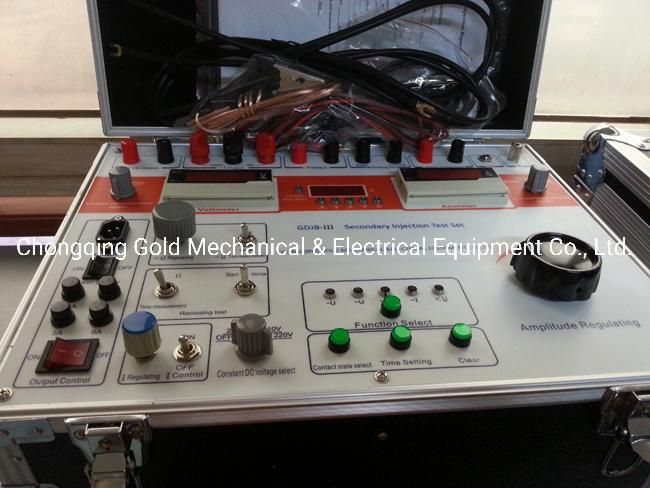

Single Phase Secondary Circuit Inspection Secondary Injection Relay Test Set

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • DC Voltage Output：0~350V Continuous Adjustable,Output Capacity:960va
  • AC Voltage Output：0~380V Continuous Adjustable, Output Capacity:400V
  • DC Current Output：0~10A Continuous Adjustable, Output Capacity:80va
  • AC Current Output：0~10A 0~100A,Capacity:1000va
  • Volt Ampere Feature Test：Voltage 0~240V Current 0~5A
  • Device Precision：0.5 Grade

Base Info

  • Model NO.：GDJB-III
  • Joint Action Time Test：0~9999s
  • Power Supply：AC220V+,-10%, 50Hz,60Hz;
  • Transport Package：Plywood Case
  • Specification：33KG
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9030849000
  • Production Capacity：200piece,Month

Description

AC short circuit voltage analog outputDC voltage selection output(it can be used as the operation power of static relay)OutputVoltage24V,48V,110V,220V,all the output current is 0.4ADevice precision0.5 gradeJoint action time test0~9999sResolution1ms.Power supplyAC220V+/-10%, 50Hz/60Hz;Environment temperature0-50 centigrade;Size550mm*410mm*340mmWeight33kg

Functions:

  • DC voltage relay test;

  • DC current relay test;

  • AC voltage relay test;

  • AC current relay test;

  • High current injection;

  • Time counter in relay test;

Single Phase Secondary Circuit Inspection Secondary Injection Relay Test Set
