• Model NO.：GD-ISO4589
• Power：AC 220V, 50,60Hz, 5A
• Weight：30kg
• Transport Package：Plywood Case
• Trademark：GOLD
• Origin：Chongqing China(Mainland)
• HS Code：9031809090
• Production Capacity：500 Sets, Year

Basic Info.

Model NO. GD-ISO4589 Power AC 220V, 50/60Hz, 5A Weight 30kg Transport Package Plywood Case Trademark GOLD Origin Chongqing China(Mainland) HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

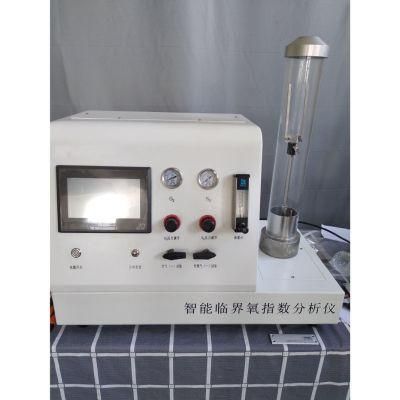

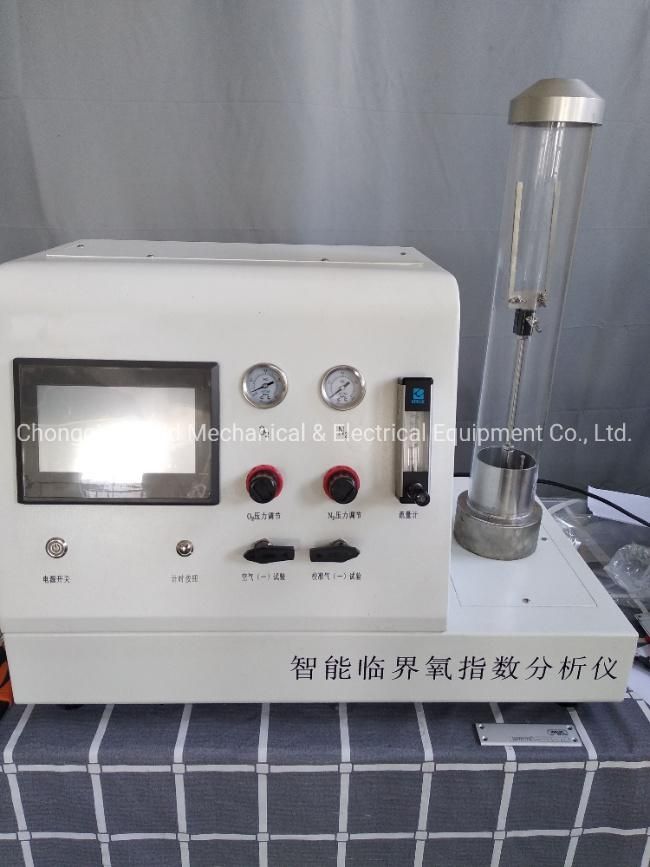

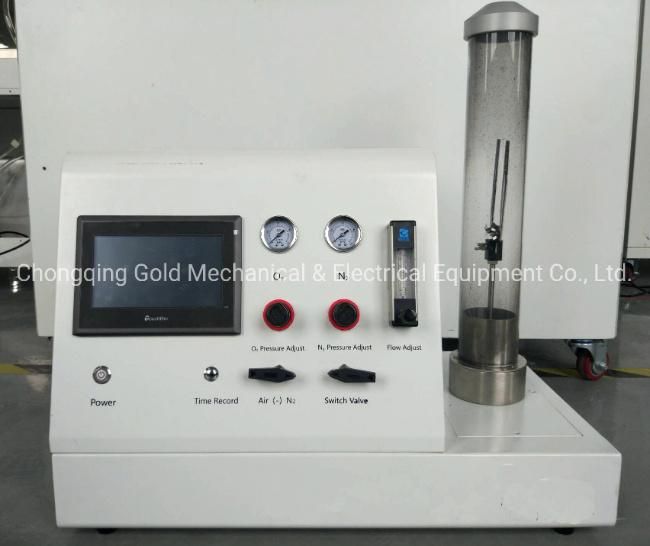

ISO 4589 Limiting Oxygen Index Test Instrument



Introduction:

Automatic Limited Oxygen Index (LOI) Tester is for the determination under the test conditions specified in oxygen and nitrogen gas mixture just to maintain a minimum sample combustion oxygen concentration required. This tester equipped with the imported oxygen concentration sensor, to make sure the measurement accuracy and durability. For the assessment of the performance of homogeneous combustion of solid materials, laminates, foams, films and films under specified conditions.



Standards:

ASTM D 2863

ISO 4589-2

NES 714



Technical Parameters:

1.  The oxygen concentration measurement range: 0~100%

2.  The oxygen concentration inaccuracy of ± 0.1%

3.  N2 mass flow controller range: 1.0~15.0L/min, Accuracy: 2%

4.  O2 mass flow controller range: 1.0~15.0L/min, Accuracy: 2%

5.  Oxygen sensor response time: <2s

6.  The gas flow rate in the combustion tube is 40mm / s ± 2mm /s

7.  The gas flow rate in top of the combustion tube is 90mm ± 10mm/s

8.  The portable ignition flame can be adjusted

9.  The measurement time is 5mins, and the accuracy is ± 0.5s

10.  Pressure meter accuracy is ± 1%

11.  Burning tube inner diameter: 80mm

12.  Burning tube height: 500mm

13.  Working pressure: 0.1Mpa



Main Features:

1.  Imports of paramagnetic oxygen concentration sensor, the oxygen concentration accuracy is ± 0.1%.

2.  Equipped with a high-temperature quartz glass tube, the outlet inner diameter is 40mm.

3.  Mass flow controller automatically adjusts oxygen and nitrogen gas flow rate according to set concentration.

4.  After set oxygen concentration on the screen, PLC control system automatically adjusts the oxygen concentration according to the set value, precision and convenient.

5.  The colour LCD touch screen displays the parameters such as flow rate, time and experimental results in real-time.

6.  The gas mixing chamber with patent design ensures that the oxygen concentration is measured more accurately, and the mixing of oxygen and nitrogen is more complete.

7.  Equipped with special ignition; portable and easy to operate.



Control System:

1.  PLC touch screen with a higher degree of test automation.

2.  The system automatically adjusts the oxygen concentration after the value is set.

3.  The key electrical components are imported which are accurate, reliable and durable.

4.  With a safety protection circuit.



Specification:

Dimension	550(L)×435(W)×670(H)mm
Packing dimension	860(W)x670(L)x670(H)mm
Power	AC 220V, 50/60Hz, 5A
Weight	30kg



Our company:

Since 2008, Gold has developed 70 kinds of fire testing instruments and served for many industries such as building materials, aviation, rails, IMO, wire & cable, safety protection and so on.

Our mission is to provide reliable products to our customers to meet their requirements of testing, R&D and quality control. In addition, Gold insists for high-quality standard in niche markets and targets to minimize the gap between Chinese local products and imported products.

We work with trust, honesty and a sense of responsibility, so the quality and service are always our advantages among all competitors.
