• Model NO.：GD-ASTMD2843
• Weight：50kg
• Gas：Purity of More Than 85% of Commercial Propane, Cus
• Transport Package：Plywood Case
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：500 Sets, Year

Basic Info.

Model NO. GD-ASTMD2843 Weight 50kg Gas Purity of More Than 85% of Commercial Propane, Cus Transport Package Plywood Case Trademark GOLD Origin China HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

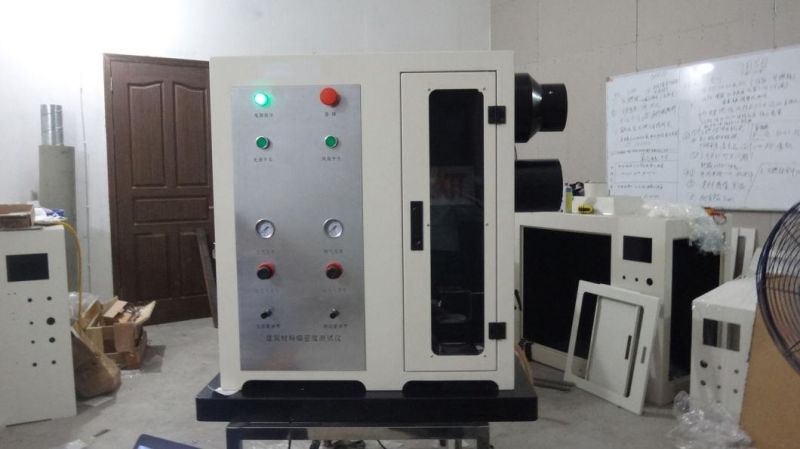

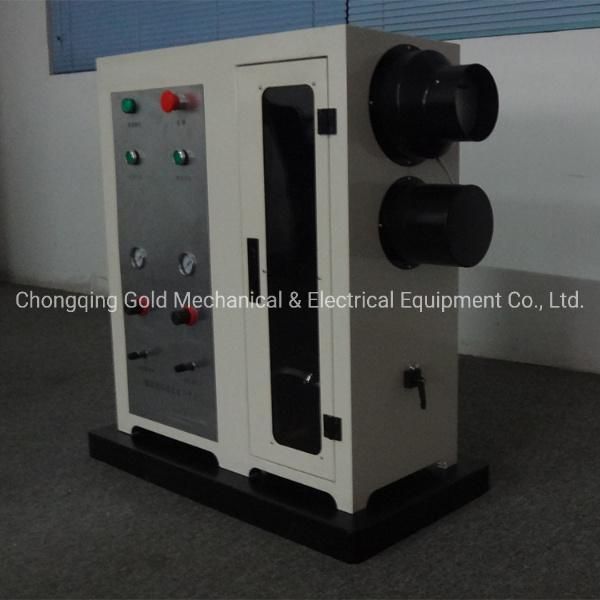

ASTM 2843 Smoke Density Tester for Building Material

Introduction:

In a fire, people are often smoke suffocated or unable to escape because of the invisible road, so in the prevention of fires, the smoke density of the test material is essential.

ASTM D2843 Smoke Density Chamber for Building Materials conforms to the national standard GB/t 8627-2007 specification and requirements, can be used to measure and describe materials, products, components, response to heat and flame under controlled laboratory conditions, measurement of construction materials in combustion or decomposition of the experimental conditions of static yield cigarettes.

Standard:

ASTM D2843 Smoke Density Test

GB/T 8627 Smoke Density Test



Feature:

1. The test chamber of ASTM D2843 Smoke Density Chamber for Building Materials is painted, beautiful, durable anti-corrosion.

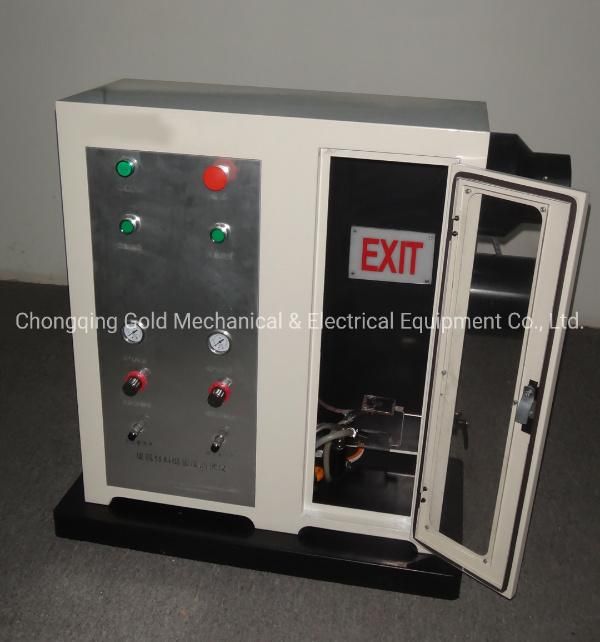

2. Transparent glass doors for easy observation of the test.

3. Stainless steel sample holder and sample templates.

4. The light absorption rate: 0-100% can be measured continuously. Smoke density resolution 0.1%.

5. The smoke density measurement accuracy: ± 3%.

6. With the main burner and pilot burner.

7. Equipped with exhaust fan, exhaust the smoke after test; exhaust volume 1700L/min.

8. 300mm optical path. 480mm height distance above the base.

9. The optical glass is easy to clean and keep the clean translucent glass to avoid soot particles adhered to affect the light effect.

Specification:

Power	220VAC 3A 50HZ
Weight	50kg
Gas	Purity of more than 85% of commercial propane, customer-owned




Our company:
Chongqing Gold, which is dedicated in design, manufacture and service of Fire Testing Equipment.
Since 2009 Gold has developed 70 kinds of instruments and has helped many customers in China, USA, India, Singapore, Pakistan, Indonesia and European.
Major industries including Building materials, Aviation, Rails, IMO, Wire and Cable, Safety Protection, Automotive Interior and so on.
