• Model NO.：GD-2265A
• Loading Method：Dynamic Load
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• ASTM D2265：High Temperature Dropping Point Apparatus
• ASTM D566：Apparatus for The Determination of Dropping Point
• Operating Voltage：AC220V, 50Hz
• Operating Power：1200W
• Metal Bath Type：Aluminum
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：refer to ASTM D2265
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-2265A Loading Method Dynamic Load Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under ASTM D2265 High Temperature Dropping Point Apparatus ASTM D566 Apparatus for The Determination of Dropping Point Operating Voltage AC220V, 50Hz Operating Power 1200W Metal Bath Type Aluminum Warranty 1 Year Transport Package Wooden Case Specification refer to ASTM D2265 Trademark GOLD Origin China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

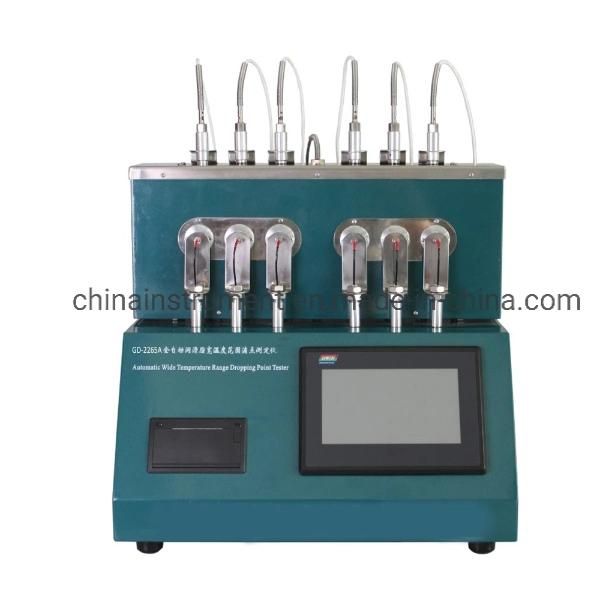

GD-2265A AUTOMATIC DROPPING POINT TESTER for lubricants & grease



Brief Introduction:

1. Dropping point determinations are used for identification and quality control purposes, and can be an indication of the highest temperature of utility for some applications. The sample is heated at a prescribed rate in a precision machined cup whose sides slope toward an opening at its center. The temperature at which a liquid drop first falls from the cup is the dropping point of the sample.
2. The High Temperature Dropping Point Apparatus comes with high efficiency which can test 6 samples one time.
3. The High Temperature Dropping Point Apparatus is designed and made according to the requirements of the People's Republic of China Standard GB/T 3498 Petroleum products--Determination of dropping point of lubricating greases(wide temperature range).
4. The instrument is also in accordance with ASTM D2265 Standard Test Method for Dropping Point of Lubricating Grease Over Wide Temperature Range.
5. It is applicable to the automatic determination of lubricating grease dropping point when its first drop reaches the bottom of the test tube.


Advantages:

1. 7-inch high-resolution LCD display, touch screen buttons. All English man-machine dialogue interface, operation menu prompts.
2. The high-performance single-chip microcomputer constitutes the embedded control system as the core, and realizes the automatic control of the whole process of the test.
3. Set heating, temperature control, automatic detection in one.
4. It adopts the SMD surface package components to ensure high stability and anti-interference.
5. The imported high temperature resistant photoelectric sensor detects the grease dropping point and has high detection sensitivity.
6. The instrument adopts six-hole six-style structure, which can be tested separately or simultaneously.
7. The instrument is equipped with fault self-diagnosis system and alarm reminding function, which has superior user experience.
8. The test result data is automatically printed after the test is completed and automatically saved.
9. The test procedure is simple, no manual intervention is required, quick test with one button, and the average test time is 2 minutes.


Paramaters:


1	Operating voltage	AC220V, 50Hz
2	Operating power	1200W
3	Metal bath type	Aluminum
4	Sample channels	6 holes
5	Temperature detection	German Class A PT100*6
6	Detection method	Automatic photoelectric detection
7	Detection mechanism	6-channel photoelectric detection
8	Temperature control range	R.T. ~ 400ºC
9	Temperature control point	121ºC, 232ºC, 288ºC, 316ºC, 343ºC
10	Metal bath temperature control accuracy	±1ºC
11	Photoelectric sensor temperature range	-50~400°C
12	Test result capacity	Automatic saving 200 test results
13	Printing method	Auto thermal printer
