• Model NO.：FTBB-10B-I TTR tester
• Load Way：Electronic Load
• Display：Digital
• Control：Computer Control
• Weight：2 Kgs
• Power Source：AC220V+_10%, 50Hz
• Ratio Testing Range：0.8-20000
• Group Testing Range：1-12
• Input Power：40va
• Connect：Standard AC Socket 60320
• Function：Transformer Ratio, Group, Polarity Test
• Input Volts：Hv Side AC 24V, LV Side AC 4V
• Allowable Frequency：Transformer Ratio, Group, Polarity Test

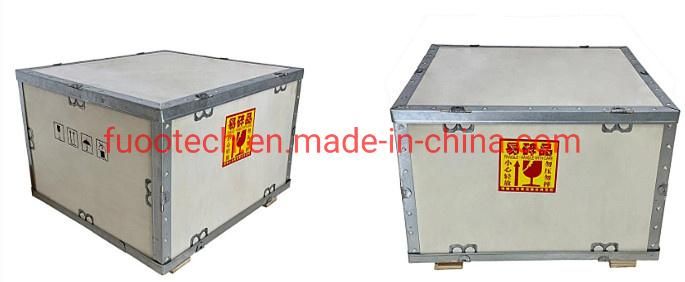

• Transport Package：in Standard Exportation Plywood Case
• Specification：270 * 190 *70mm
• Trademark：FUOOTECH
• Origin：Chongqing, China
• HS Code：9030849000
• Production Capacity：1000 PCS,Month

Detailed PhotosFeatures

 1. The tester makes automatic measurement with no need to set any parameters and automatically completes the three-phase ratio and connection group measurements with easy operation. All you need to do is to press a button.

2. The tester measures three-phase and single-phase transformer ratios automatically, and calculates the ratio error.

3. The tester has inner three-phase signal source, which can make measurement of Y / y, Y / d, D / y, D / d, ZN / y, ZN / d, rectifier transformer, traction transformer and all kinds of ratios of transformer connection groups.

4. The tester can measure transformer connection group label and polarity to clearly display the first and second winding connection vector.

5. The tester can track the transformer on-load tap-changer position automatically, and indicate the current tap point automatically.

6. The tester can display a transformer's first and secondary voltage Oscillograms and phase relationship. It can measure transformer's first and second harmonic voltages, to facilitate the analysis of transformer failure.

7. The tester has perfect and reliable automatic protection, to ensure the intactness of the tester under abnormal conditions.

8. The tester is has small size and light weight. It makes accurate measurement at fast speed (about 3 seconds to complete the test).

9. The tester is available to store and print all the test results. It has Built-in 128M memory (extendable to 4G memory card), available to export the database by USB, or upload to computer. The database supports excel spreadsheet opening, easy for edit or archive.

10. The tester has 5-inch true color touch screen operation, emwinGUI interface and Chinese input, which is easy and convenient. It also has no power-down calendar and clock function. The test time can be stored at any time.

11. The tester support on-site record print by Bluetooth or serial printer.
