• Model NO.：GDYJ-502
• Measuring Voltage Range：AC 0V~100kv
• Test Error：3%Rdg+0.3%Fs
• Dimension and Weight：620 mm*430mm*330mm, 41kg
• Certificate：CE
• Usage：Transformer Oil Bdv Test
• Transport Package：Standard Wooden Case
• Specification：50kg
• Trademark：Gold
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. GDYJ-502 Measuring Voltage Range AC 0V~100kv Test Error 3%Rdg+0.3%Fs Dimension and Weight 620 mm*430mm*330mm, 41kg Certificate CE Usage Transformer Oil Bdv Test Transport Package Standard Wooden Case Specification 50kg Trademark Gold Origin Chongqing, China HS Code 9031809090 Production Capacity 5000PCS/Month

Product Description

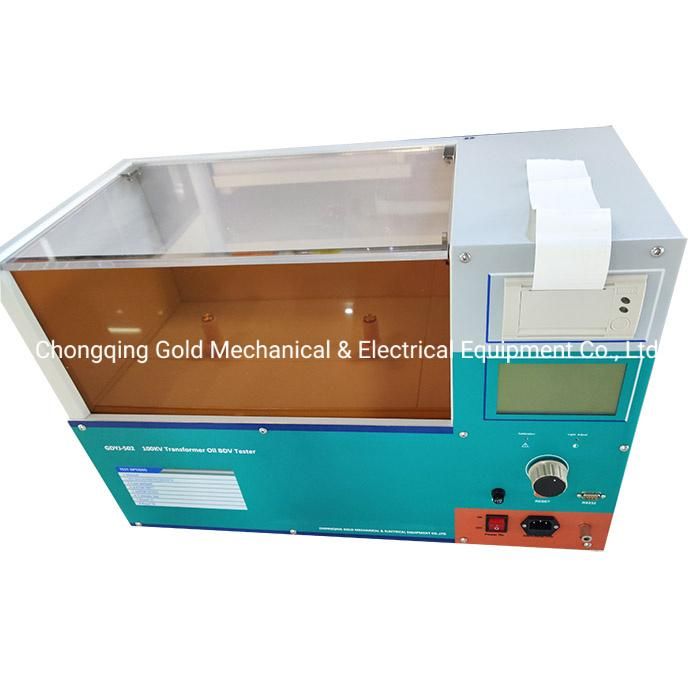

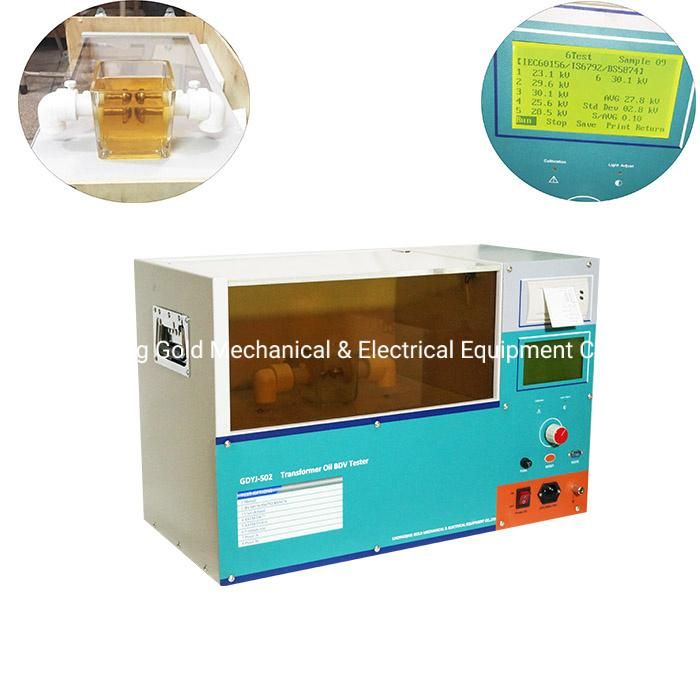

GDYJ-502 Fully Automatic Insulating Oil Dielectric Strength Tester
( Transformer Oil BDV Tester )


  I. General Introduction  GDYJ-502 Fully Automatic Insulating Oil Dielectric Strength Tester is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse . GDYJ-502 Fully Automatic Insulating Oil Dielectric Strength Tester is very easy for customers to measure the breakdown voltage of all kinds of oil. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise. II. Functions 1   Breakdown test of user-defined2   Proof test3   IEC60156/IS6792/BS5874 test4   ASTM D1816 standard test5   ASTM D877 standard test6   5 minutes standard test7   Manual test8   Calibration interface for customers9   Uploading data to PC and making word report automatically10 Result print

 III. Parameters

1	Output voltage : AC 0V~100KV
2	Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3	Max test times setting for user-defined mode: 9
4	Stir time setting for user-defined mode: 0~999s
5	Waiting time setting for user-defined mode: 0~999s
6	Test error: 3%RDG+0.3%FS
7	Display: 256 ´ 128 LCD
8	Maximum storage capacity: 100 groups of test data
9	Power supply : AC220V±10%, 50Hz/60Hz
10	Environment temperature: 0-50 °C
11	Relative humidity ≤ 80%RH
12	Weight:41kg
13	Size: 620 mm ´ 430mm ´ 330mm
