• Model NO.：ES-10
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Sine Force：10000n
• Max. Acceleration：1000m,S2
• Max. Speed：2.0m,S
• Frequency Range：5 Hz to 3000Hz
• Impact Displacement：51mm
• Moving Coil Weight：14kg
• Vibration Wave：Sine,Random,Shock
• Vibration Directions：Vertical Horizontal Vibration
• Control Method：Amplifier
• Application：Transport Package
• Transport Package：Wooden Case
• Specification：CE, ISO, SGS
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. ES-10 Display Digital Control Computer Control Weight 500-1000Kg Power Source AC380V Sine Force 10000n Max. Acceleration 1000m/S2 Max. Speed 2.0m/S Frequency Range 5 Hz to 3000Hz Impact Displacement 51mm Moving Coil Weight 14kg Vibration Wave Sine,Random,Shock Vibration Directions Vertical Horizontal Vibration Control Method Amplifier Application Transport Package Transport Package Wooden Case Specification CE, ISO, SGS Trademark ASLi Origin Guangdong, China HS Code 8514109000 Production Capacity 50 Sets/Month

Product Description

ISTA 1A 2A 3A Transport Package Simulation High Frequency Vibration Test Machine for Random Vibrating


Product Description

Model	Rated Sine Force (N)	Rated Random	Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed (m/s)	Rated displacement (p-p) mm	Max. Loading (Kg)	moving coil (Kg)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450

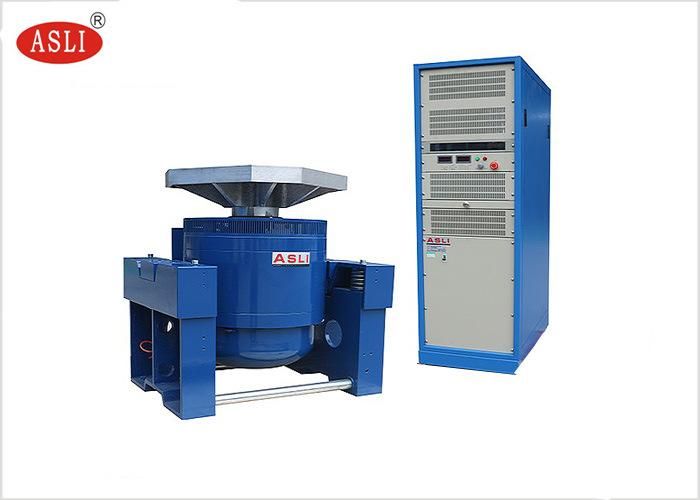

Air Cooling Electromagnetic High Frequency Vibration Tester/Vibration Testing Equipment  is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

Features:

1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 3500 Hz frequency.
3 Computer connecting line control, immediately store materials.

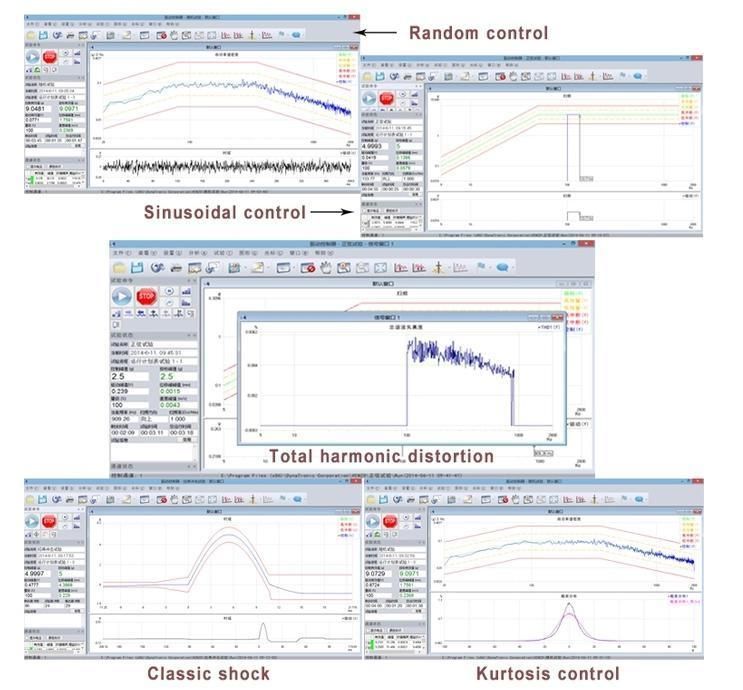

4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.



 Detailed Images

 If you need more information about Transport Package Simulation High Frequency Vibration Test Machine for Random Vibrating, please feel free to contact us.
