• Model NO.：DTH-80-A
• Temperature Rising Approx：0.1~3.0degree Per Min
• Temperature Falling Approx：0.1~1.5degree Perr Min
• Inner Material：SUS 316
• Exter Material：SUS 304
• Transport Package：Standard Wood Case
• Specification：400*500*400mm
• Trademark：ASLI
• Origin：Made in China
• HS Code：90248000
• Production Capacity：500sets Per Month

ModelDTH-80ADTH-80BDTH-80CInternal Dimensions
WxHxD (mm)400X500X400External Dimensions
WxHxD (mm)1150X1150X1050Temperature Range(RT+10ºC) ~+150ºC0~+150ºC-20 ~+150ºCHumidity Range20%~98%R.H.Analytic Accuracy /
Distribution Uniformity
of Temperature & Humidity0.1ºC; 0.1% R.H / ±2.0ºC; ±3.0% R.H.Control Accuracy of
Temperature & Humidity±0.5ºC; ±2.5% R.H.Temperature Rising / Speed RateTemperature rising approx. 0.1~3.0ºC/min; temperature falling approx. 0.1~1.5ºC/min;Internal and External MaterialMaterial of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated.Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materialsCooling SystemWind coolingProtection DevicesFuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and
over-temperature protection switch, fuses, fault warning system, water short storage warning protectionOptional AccessoriesInner door with operation hole(Optional), Recorder(optional),Water PurifierCompressorFrench Tecumseh Brand,Germany Bizer BrandPowerAC 220V, 1∮ 3 Lines , 50/60HZ;Weight (Kg)75



Application:

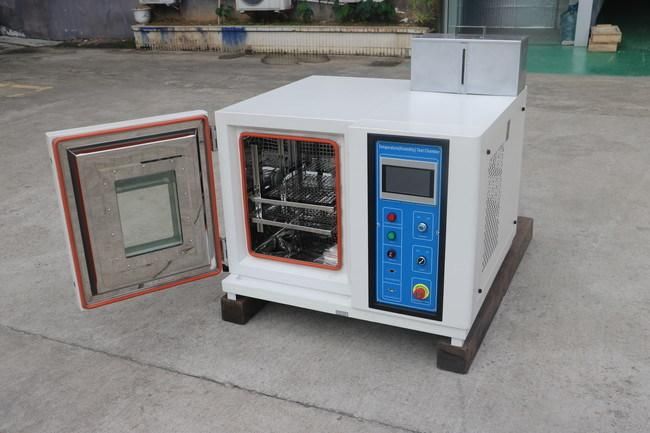

Desktop Temperature Humidity Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity, and applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food,  chemical, building materials, medical and aerospace industries.

Structure:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no
reaction. Easy to operate, safe and reliable.
2 Interior material: SUS#304 stainless steel , mirror polishing.
3 .Exterior material: SUS#304 stainless steel or paint coated.
4. Insulation Material: Resistant to high temperature, high density, PU foam insulation materials.
5. Test hole: One hole (Dia.50mm) on left side of chamber, for connecting outside's power line or signal line.

Cooling system:
1. Imported power saving full closed compressor
2. Cooling method: air cooling. Environmental protection refrigerant
3. Imported dry filter, electro valve. ,etc freeze accessories.
4. Air cooling type Condenser, attached with heat dissipation motor device or water cooling pipe.
5. Pyogenic system adopts dual refrigeration loop, fast cooling.
6. Expansion system: capillary capacity control refrigeration system.


Heated humidification system:
1. Adopt U-TYPE SUS#304ss Electric heat pipe heater
2. Humidify barrel made of SUS#304ss, with observation glass and electromagnetic valve of Water level
3. Independently heat, wet humidify, dehumidify system.
4. With auto heating, wetting and demist function, with observation glass and imported tube.

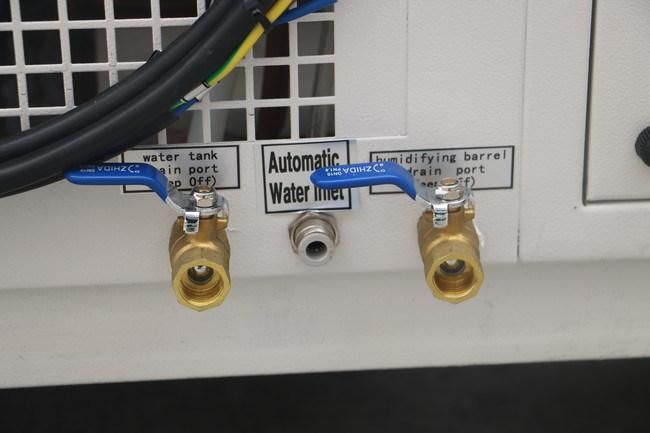

5. Humidification water recycling, automatic filling water system, 25L built in draw-out type
water tank.

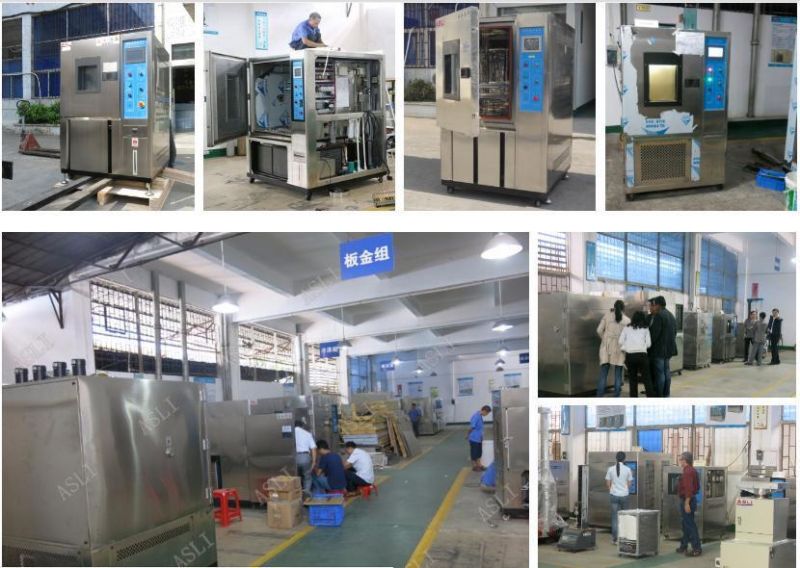

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.HAST Un-Saturated Steam Chamber is our star products, and we had obtained the CE certification for this machine.


 1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.

2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.

3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.

5. How to install and training?
If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.

6.What's your main products?
 Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.

Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us
