• Model NO.：(PHLD-16)
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Length：1100 Mm
• Width：650 Mm
• Height：1000 Mm
• Gross Weight：150 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Set,Sets Per Month Negotiation

Basic Info.

Model NO. (PHLD-16) Control Computer Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Top Length 1100 Mm Width 650 Mm Height 1000 Mm Gross Weight 150 Kg Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Set/Sets Per Month Negotiation

Product Description

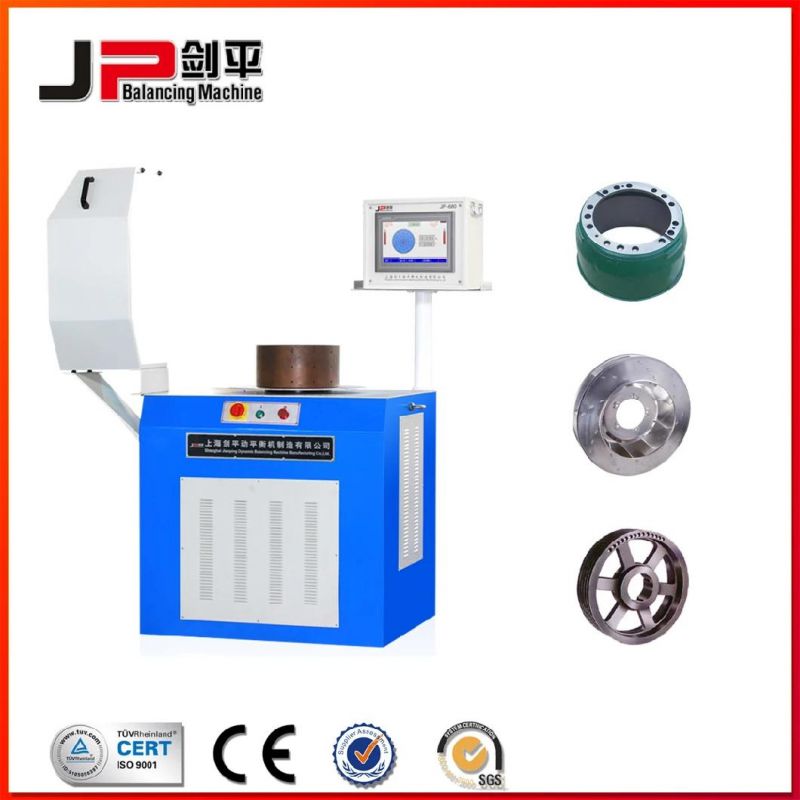

Flywheel special balancing machine (PHLD-16)

Production Description

Specially designed, solid brackets can effectively transmit mechanical force
Durable and reliable sensor possesses high sensitivity and good linearity
Permanent calibration brings high accuracy
Special clamp offers higher accuracy and easier operation
. Advanced electrical measuring system and friendly man-machine interface
As the customer's request, the de-weighting system can be equiped

Range of Application

Flywheel special balancing machine (PHLD-16) is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk, brake drum. Saw blade. Clutch, belt pulley, chuck, pump impeller, flywheel, grinding wheel, range hood fan, brake, torque converter, tool etc. High speed and precision are advanages of this balancing machine.
According to user's requirement, The machine can install de-weight device

Special Features

The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters

Technical data at a glance	PHLD-16	PHLD-42	PHLD-65
Max Mass of Workpiece (kg)	16	42	65
Max Diameter of Workpiece (mm)	510 1) 800 2)	510 1) 800 2)	510 1) 800 2)
Height of workpiece(mm)	160	160	160
Spindle speed(r/min)	900	800	700
Motor power(kw)	1.5	1.5	2.2
Min Achievable Residual Unbalance Amount (emar)	5g . mm/kg	5g . mm/kg	5g . mm/kg
