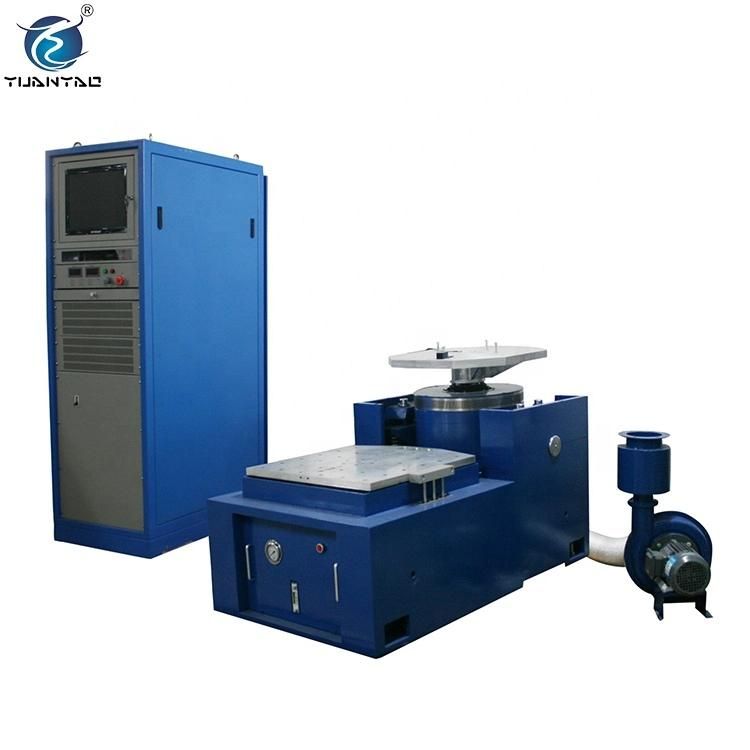

High Frequency 3 Axis Vibration Tester for Lead - Acid Batteries
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：900mm
- Mass Scope of Workpiece：1000kg
- Type：Vibration Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YEV-15
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC220V
- Oil Cylinder Position：N,a
- Frequency Range：2-3000Hz
- Max.Vibration Force：500kg.F
- Max.Displacement：25mmp-P
- Max.Acceleration：83G
- Max.Speed：150cm,S
- Size(Mm)：800*600*710
- Cooling Way：Air Cooling
- Warranty：12 Months
- Max.Load：190kg
- Excitor Weight：690kg
- Transport Package：Strong Wooden Case
- Specification：CE, TUV, SGS Certificate
- Trademark：Yuan Yao
- Origin：Guangdong, China
- Production Capacity：100 Sets,Month
Description
ModelYEV-14 YEV-15 YEV-13 Exciter Model GV300/40 GV500/25 GV300/25 Frequency range (Hz) 2-2500 2-3000 2-4000 Max Eciting Force (kg.f) 300 500 300 Max Displacement (MMP-p) 40 25 25 Max Acceleration (G) 33 83 80 Max Speed (cm/s) 120 150 160 Payload (kg) 120 190 110 Moving Coil Mass (kg) 9 6 4 Circumference of the movable ring(mm) 225 202 150 Exciters Weight (kg) 760 690 240 Dimensions (LWH) mm 675×560×660 800×600×710 675×560×660 Power amplifier Model SA4K SA5K SA3K Power developed weight (kg) 300 300 250 Cooling method Air cooling Air cooling Air cooling Power Amplifiers Size (L×W×H)(mm) 720×545×1625 720×545×1625 720×545×1625 Power Source[k.w] AC 1Ψ 220V/50Hz; 3Ψ 380V 50Hz
Except Vibration tester, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.
If you are interested in vibreation tester, please contact me soon.
Except Vibration tester, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.
If you are interested in vibreation tester, please contact me soon.
