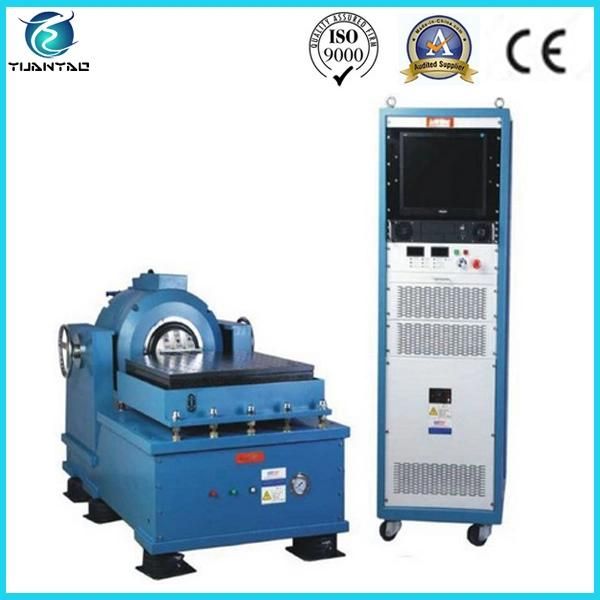

High Frequency 3 Axis Vibration Table

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Type：Vibration Testing Machine
  • Display：Needle
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：N,a

Base Info

  • Model NO.：YEV-11
  • Frequency Range：2-2500Hz
  • Max.Vibration Force：300kg.F
  • Max.Displacement：40mmp-P
  • Max.Acceleration：33G
  • Max.Speed：120cm,S
  • Size(Mm)：675*560*660
  • Cooling Way：Air Cooling
  • Warranty：12 Month
  • Max.Load：120kg
  • Excitor Weight：760kg
  • Transport Package：Strong Wooden Case
  • Specification：CE, TUV, SGS Certificate
  • Trademark：Yuan Yao
  • Origin：Guangdong, China
  • Production Capacity：100 Sets,Month

Description

ModelYEV-14YEV-15YEV-13Exciter ModelGV300/40GV500/25GV300/25Frequency range (Hz)2-25002-30002-4000Max Eciting Force (kg.f)300500300Max Displacement (MMP-p)402525Max Acceleration (G)338380Max Speed (cm/s)120150160Payload (kg)120190110Moving Coil Mass (kg)964Circumference of the movable ring(mm)225202150Exciters Weight (kg)760690240Dimensions (LWH) mm675×560×660800×600×710675×560×660Power amplifier ModelSA4KSA5KSA3KPower developed weight (kg)300300250Cooling methodAir coolingAir coolingAir coolingPower Amplifiers Size (L×W×H)(mm)720×545×1625720×545×1625720×545×1625Power Source[k.w]AC 1Ψ 220V/50Hz; 3Ψ 380V 50Hz

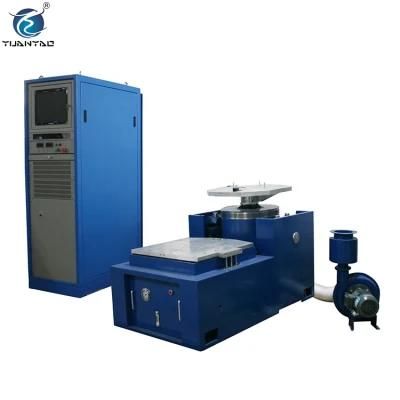

High Frequency 3 Axis Vibration Table
Except Vibration test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

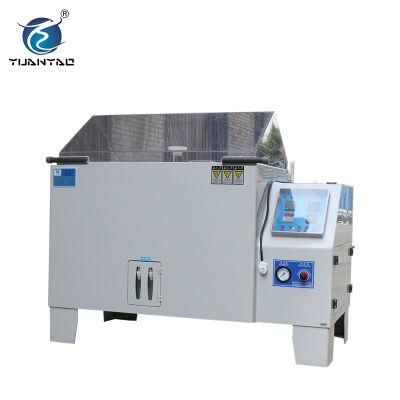

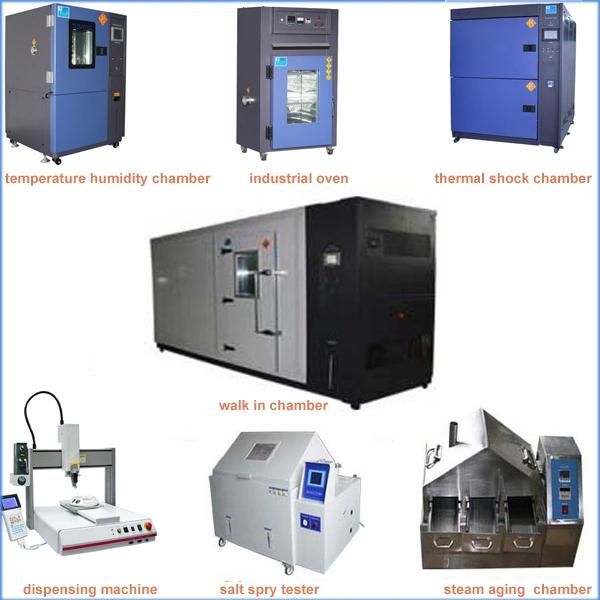

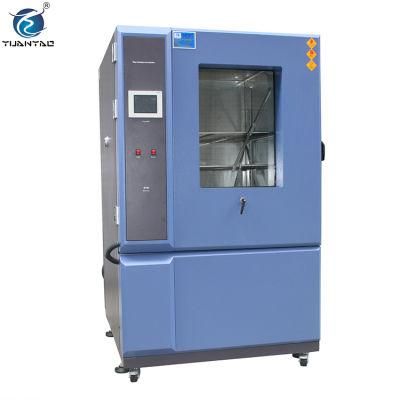

Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.

If you are interested in the items, please contact me soon.
