• Model NO.：GDHL-III
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Na
• Apparatus：Digital Display CB Contact Resistance Tester
• Application：Circuit Breaker Contact Resistance Tester
• Funcion：Digital Display Loop Resistance Test Set
• Device：Contact Resistance Tester for High Voltage Switch
• Accuracy Class：0.5%Rgd+0.2uohm
• Operating Temperature：0~50c
• Max Voltage Output：5V
• Measurement Range：0~1999.9uohm
• Size：340mm*280mm*210mm
• Warranty：1 Year
• Transport Package：Standard Wooden Case
• Specification：ISO Certificate
• Trademark：Gold
• Origin：Chongqing of China
• HS Code：9030820000
• Production Capacity：200PCS,Month

Basic Info.

Model NO. GDHL-III Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Na Apparatus Digital Display CB Contact Resistance Tester Application Circuit Breaker Contact Resistance Tester Funcion Digital Display Loop Resistance Test Set Device Contact Resistance Tester for High Voltage Switch Accuracy Class 0.5%Rgd+0.2uohm Operating Temperature 0~50c Max Voltage Output 5V Measurement Range 0~1999.9uohm Size 340mm*280mm*210mm Warranty 1 Year Transport Package Standard Wooden Case Specification ISO Certificate Trademark Gold Origin Chongqing of China HS Code 9030820000 Production Capacity 200PCS/Month

Product Description

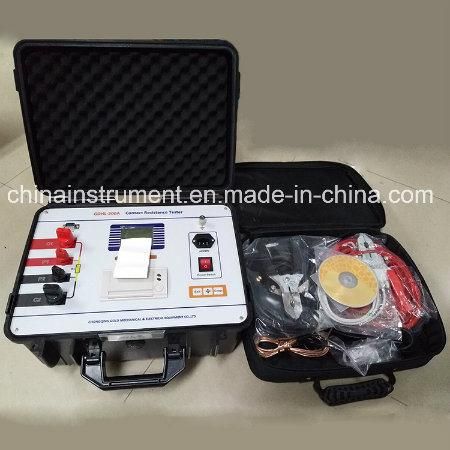

GDHL-III IEC62271 Digital CB Contact Resistance Tester



Introduction:

1. Contact resistance tester is used to test the contact resistance of circuit breaker or high current cable contacts.
2. It is designed according to IEC62271.
3. The main application of the tester is measurement of circuit breaker contact resistance.
4. All the test results of the tester could be print by the micro-printer which is integrated in the tester.
5. Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.

Features:

1. Rapid test;
2. Result print;
3. Upload data to PC;


Specifications:

No.	Item Name	GDHL-III IEC62271 Digital CB Contact Resistance Tester
1	Measuring range	0-1999.9 μΩ Resolution:0.1 μΩ
2	Measuring current	DC 100A, 200A, 400A, 600A for choice
3	Measuring precision	0.5 %RGD+0.05%FS
4	Display mode	LCD
5	Data storage	Save no more than 100 groups of data
6	Data connection	RS232 computer interface
7	Rated power supply	AC220V
8	Size	340mm× 280mm × 210mm
9	Environment temperature	-10 ºC~+40 ºC
10	Relative humidity	<80%

Product Show:

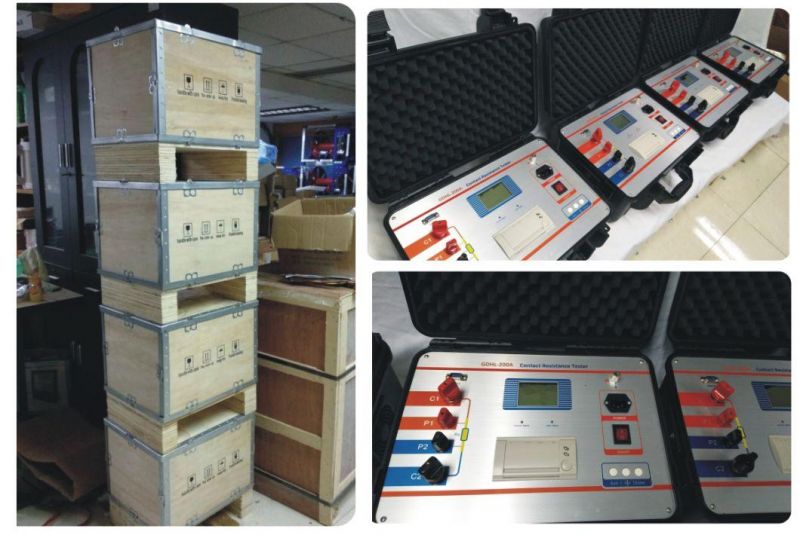

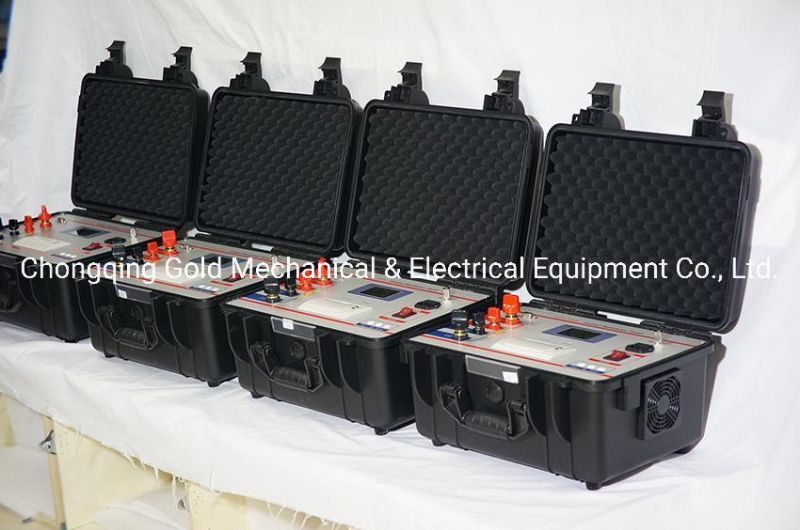

Four Sets GDHL-200A Contact Resistance Tester Sold to USA
