• Model NO.：DH-TA-01
• Testing Before Delivery：Yes
• After-sale Customer Service：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DH-TA-01 Testing Before Delivery Yes After-sale Customer Service Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China HS Code 9027809900 Production Capacity 300 Sets/Month

Product Description

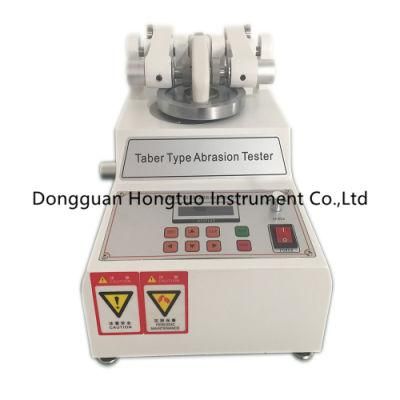

DH-TA-01 Taber Abrasion Tester ASTM D7255 Leather Rotary Abraser For Wear Test





Application



Taber Rotary Abraser. To determine the wear resistance of all kinds of structures including fabrics, leather and rubber, paper, metals, paints, plated surfaces, coated materials, glass etc.

Taber Abrasion Tester (Taber Abraser) uses the X pattern of abrasion produced by a rotary action of a pair of abrasive wheels. Taber abraser supplies with a full range of auxiliary Weights, specimen holders, abrasive wheels, wheel refacer and vacuum unit.



Standard

DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 5470, ASTM D 1175, ASTM D1044.



Specification



1.Testing sheet:inner diameter(D)3mm

2. Abrasion wheel:?2"(Max.45mm)(W)1/2"

3. Centre interval for abrasion wheel :63.5mm

4. Interval for abrasion wheel and testing sheet:37~38mm

5. Rotating speed:60-72r/min(can be adjustable)

6. Load:250,500,1000g

7. Counter:LED 0~999,9999

8. Distance from testing sheet to suction inlet:3mm

9. Dimension:45 x 35 x 42cm

10. Weight:30kg

11. Power supply:AC 220V,10A

12. One pair of imported grinding wheel H-18;One set of cleaner

Packaging & Shipping






Company Information


We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.


Certification
