• Model NO.：DH-300B
• After-sale Customer Service：Yes
• Testing Before Delivery：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DH-300B After-sale Customer Service Yes Testing Before Delivery Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/Month

Product Description

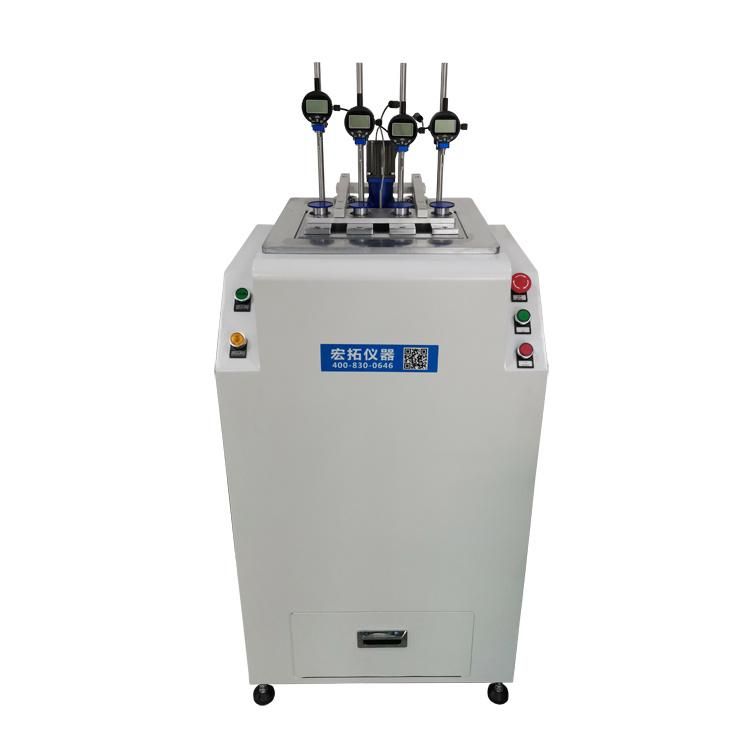

DH-300B Plastic HDT Vicat tTesting Machine , Digital HDT Heat Distortion Vicat Softening Point Tester, HDT Vicat Measurements

Application

This machine is a non-metallic material testing instrument designed and manufactured according to the latest international standards and national standards. It is mainly used for non-metal such as plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting laminates. Determination of the heat distortion temperature of the material and the Vicat softening point temperature. It is easy to operate and precise in control. It is a highly intelligent test instrument widely used in colleges and universities, research institutes and product quality supervision and inspection units. It adopts single-chip control, PID phase-modulated output, with upper limit temperature setting, and automatically stops heating when the test temperature reaches the upper limit temperature.

Standard


GB/T1633 "Determination of vicat softening temperature (VST) of thermoplastics"
GB/T1634 "Determination of plastic load deflection temperature part 1: general test method"
GB/T8802 "Determination of softening temperature of plastic pipe fittings"
IS075-2013 "Determination of plastic load deformation temperature"
ASTM D 648 "Plastic heat deflection temperature test method"
ASTM D 1525 "Plastic vicat softening temperature test method



Features

1.Intelligent PID adjustment, accurate heating rate, precise temperature control
2.Can do thermal deformation test of various standard specimen
3.Can do Vicat softening point test of various standard specimen
4.The required load can be automatically calculated according to the test standard and sample size
5.Two heating rates can be selected, free switching, simple operation
6.When the test is completed or the temperature exceeds the upper limit, the temperature control will be turned off and shut down automatically
7.With software over-temperature protection and leakage protection
8.Has air-cooled and water-cooled dual rapid cooling



Technical Parameter

Temperature control range	ambient temperature~300ºC
Heating rate	(120±10)ºC/h (12±1)ºC/6min, (50±5)ºC/h (5±0.5)ºC/6min
Temperature indication error	0.1ºC
Temperature control accuracy	±0.5ºC
Maximum deformation indication error	±0.001mm
Deformation measurement range	0-10mm
Number of sample racks	4
The weight of the load bar and the tray	76g
Test span range	64 or 100mm according to the standard
Fuel tank volume	about 13L
Heating medium	methyl silicone oil
Cooling method	built-in active air cooling or external water cooling
Heating power	1.5kw
Appearance size	length 60cm*width 50cm*height 132cm



About  Company

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.

Certification
