Insulating Oil Automatic Oil Tester
Chongqing Zhongneng Oil Purifier Manufacture Co., Ltd.- Max Diameter of Workpiece：500mm
- Mass Scope of Workpiece：<900kg
- Type：Strength Testing Machine
- Maxcapacity：80kv
- Accuracy Grade：0.5
- Load Way：Mechanical Load
Base Info
- Model NO.：IIJ-II
- Loading Method：Dynamic Load
- Display：Digital
- Control：Manual Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：Top
- Condition：New
- Power(W)：21kw
- Dimension(L*W*H)：38*37*38cm
- Warranty：1 Year
- Color：White
- Working Height：<1500m
- Break Down Sensitivity：<2kv
- Transport Package：Wooden Case
- Specification：CE, ISO, CCC, SGS
- Trademark：Zhongneng
- Origin：Chongqing, China
- HS Code：8421299090
- Production Capacity：200 Set,Month
Description
Basic Info.
Model NO. IIJ-II Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Top Condition New Power(W) 21kw Dimension(L*W*H) 38*37*38cm Warranty 1 Year Color White Working Height <1500m Break Down Sensitivity <2kv Transport Package Wooden Case Specification CE, ISO, CCC, SGS Trademark Zhongneng Origin Chongqing, China HS Code 8421299090 Production Capacity 200 Set/MonthProduct Description

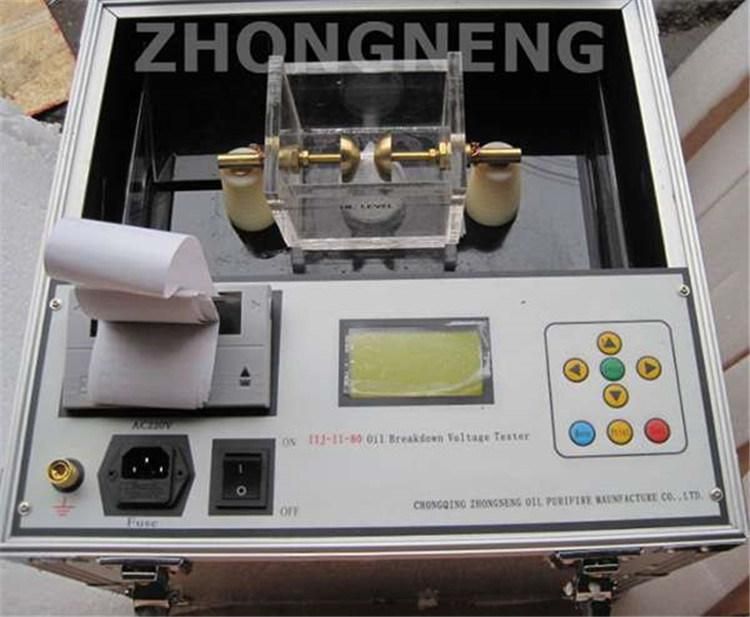

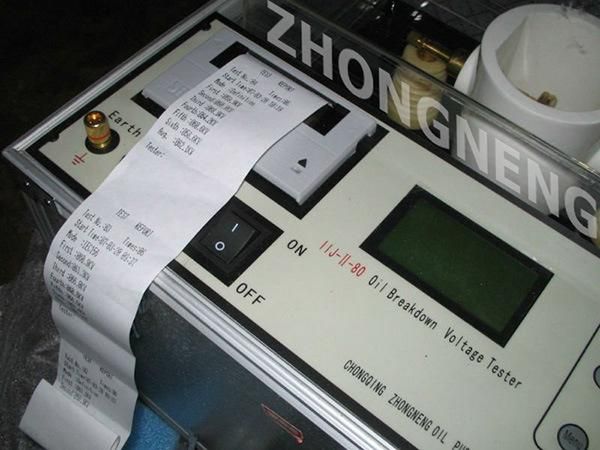

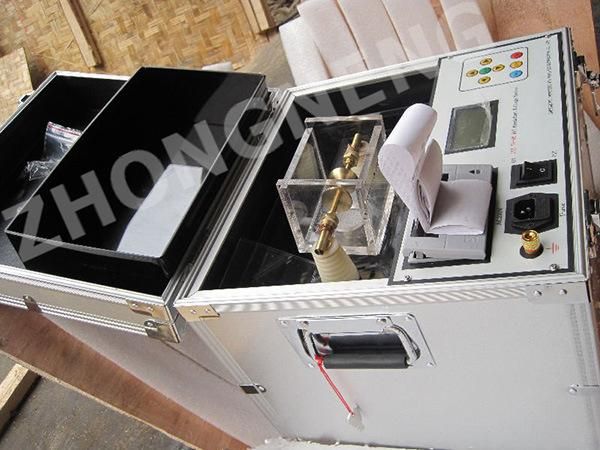

Insulating oil automatic oil tester
APPLICATION
IIJ-II Series Transformer Oil Dielectric Strength Tester is specially designed for testing dielectric strength
(Breakdown Voltage) of transformer oil.
In the electric power system, the insulation oil is widely applied in many insulation electric equipment. The breakdown voltage (dielectric strength) is one of the most important parameters, it is a rule of the voltage withstand. The value of breakdown voltage (dielectric strength) indicates whether the oil contains water, impurity and electric particles, and you'll know the oil value via the breakdown voltage (dielectric strength).
IIJ-II Series Transformer Oil Dielectric Strength Tester provides repeatable, accurate measurement of breakdown voltage of insulating oils used in electrical equipment. These versatile, light weight units have been designed for both field and laboratory use.
IIJ-II Series Transformer Oil Dielectric Strength Tester is designed as per the standard of IEC156 dielectric strength of insulating oil.This product adopt industrial single-chip control system, large-scale integrated circuit, new-style I/O interface, with unique inspection and anti-jamming technique, which greatly improve the equipment performance and reliability.
FEATURES
- Simple operation, automatically (can be finished just press on key).
- Menu controlled. Input data is clear.
- Can store 99 groups of oil testing data, which is convenient to reading and print. The testing data can keep 100 years under the condition of power off.
- System time can go on running under power off; (The system time is just for reference which can not be the standard of timing).
- High capacity of anti-jamming, high precision of testing.
- Small volume, light, which can be operated in the open air very conveniently.
TECHNICAL DATA
- Power supply: AC220V ± 10%, 50HZ
- Output voltage: 80KV, 100KV
- Capacity: 1.6KVA, 2.0KVA
- Pressure increase speed :about 2KV/S
- Pressure testing speed: 3%
- Dielectric strength sensitivity : <2KV
- Wave form distortion : ≤3%
- Time of dielectric strength: ≤10ms
- Polar distance: 2.5mm
- Operational environment: Temperature:0ºC-40ºC, Humidity: the most relative humidity 85%
- Storage environment : Temperature:-20ºC-60ºC, Humidity: the most relative humidity 75%.
- Working altitude: <1500m (if over 1500m can be designed specially)
- Packing: Wooden Case
- IIJ-II-80 Series Transformer Oil Dielectric Strength Tester Testing range: 0 - 80KV
- IIJ-II-100 Series Transformer Oil Dielectric Strength Tester Testing range: 0 - 100KV
