• Model NO.：GD-ASTMD1230
• Instructions：Provided
• Flame Height Scale：One
• Sample Holder：One
• Tool：Vacuum Cleaners, Propane Gas
• Transport Package：Plywood Case
• Trademark：Gold
• Origin：China
• HS Code：9031809090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. GD-ASTMD1230 Instructions Provided Flame Height Scale One Sample Holder One Tool Vacuum Cleaners, Propane Gas Transport Package Plywood Case Trademark Gold Origin China HS Code 9031809090 Production Capacity 100 Sets/Month

Product Description

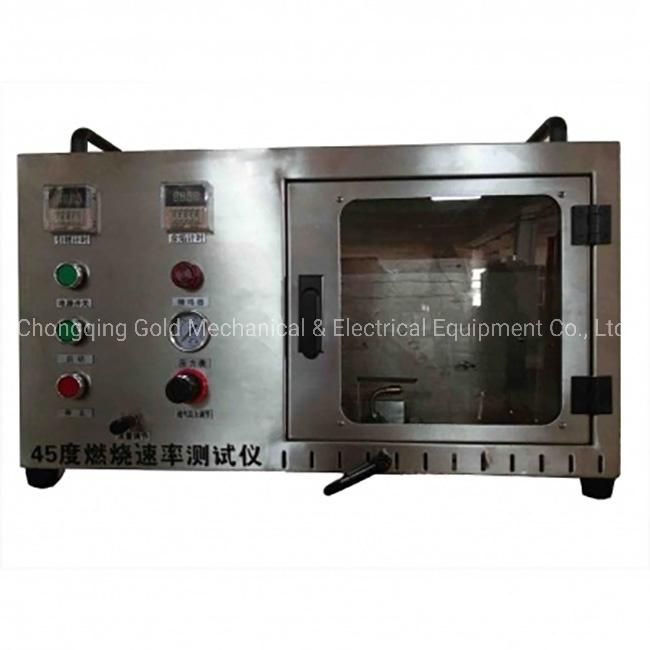

45 Degrees Determination Test Machine of Flame Spread Rate



Introduction:

Textiles 45 ° Damaged Area Experimental Device is designed according to the latest edition of the national standard GB/T14645 design and manufacturing; applies to the textile fabric in under 45 ° combustion, determination of the damaged area and damage length determination of heat or melt number to provide exposure to the flame length. Combustion evaluation of refractory materials fire-resistant and can be based on compliance with the implementation of standards, measurement of a sample is installed at a 45-degree angle light and perfect combustion characteristics. 45-degree flammability tests for measuring burning time and passive smoke glow time, graphic placement sample received some radiation and fixed heat generated in the Chamber.



Standard:

ASTM D 1230

NFPA 702

CA TB 117 (2000)



Feature:

Structure parts:

1.  Test box is painted treatment, beautiful, corrosion-resistant.

2.  Heat-resistant glass window easy to observe internal test status.

3.  Internal tooling materials are made of stainless steel.

4.  Power switch and start switch.

5.  Tank top and side of the box have six air vents.

6.  Do different experiments to replace sample holder.

7.  The sample holder should be replaced when doing different experimental.

8.  Japan imported flow control valve, precise control of the flame height.

9.  Imported brands gauge and pressure regulator valve.



Damaged area of the test section:

1.  Needle valve adjust flame height to 45 ± 2m.

2.  Complete combustion time: The counter display glow time, resolution 0.1s.

3.  Glow time:The counter display complete combustion time, resolution 0.1s.

4.  Flame spread time: The set time of sample ignition (flame spread time).

5.  The counter is set to "0" reset switch.

6.  Temperature display range and accuracy: 0 ~ 90 ± 1 ºC.

7.  Imported brands gauge and pressure regulator, gas pressure can be displayed.

8.  Complete combustion stop switches.

9.  Planimeter is optional.



   Specification:

Model	GD-ASTMD1230
Size	750(W) x 300(D) x 900(H)mm
Power	AC 220V, 50/60Hz, 5A
Weight	30 kg
Instructions	Provided
Flame height scale	One
Sample holder	One
Tool	Vacuum cleaners, propane gas



Our company:

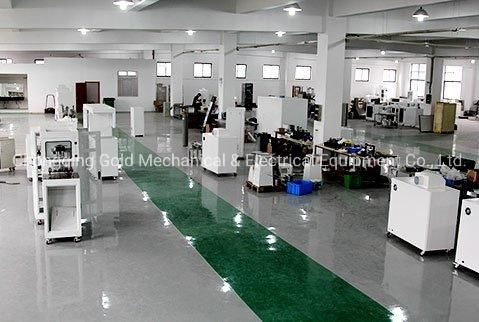

Since 2008, Gold has developed 70 kinds of fire testing instruments and served for many industries such as building materials, aviation, rails, IMO, wire & cable, safety protection and so on.

Our mission is to provide reliable products to our customers to meet their requirements of testing, R&D and quality control. In addition, Gold insists for high-quality standard in niche markets and targets to minimize the gap between Chinese local products and imported products.

We work with trust, honesty and a sense of responsibility, so the quality and service are always our advantages among all competitors.
