High Accuracy CT PT Test Unit Hv CT PT Analyzer
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Usage：Transformer Tester
- Test Standards：IEC60044-1,2,5,6
- Voltage Output：0.1~180V (AC)
- Current Output：0.001~5A(RMS)
- Maximum Knee Voltage：45kv
- Power Supply：220V 50Hz
Base Info
- Model NO.：GDVA-404
- Product Name：Current Power Transformer Tester CT PT Analyzer
- Current Measurement Range：0~10A
- Secondary Current：1A,3A,5A
- Power Output：500va
- Transport Package：Wooden Case
- Specification：65*46*40CM
- Trademark：Gold
- Origin：Chongqing
- HS Code：9031809090
- Production Capacity：200PCS,Month CT PT Analyzer
Description
GDVA-405 CT PT Analyzer1 Test standards IEC60044-1, IEC60044-6, GB1208, GB16847, C57.13 2 Power supply AC220V±10%,50Hz/60Hz±10% 3 Power output 0.1~125V (AC) 4 Current output 0.001~5A(RMS) 5 Power output 300VA 6 Max. knee voltage measurement 45kv 7 Current measurement range 0~10A (automatically change range in 0.1/0.4/2/10A) 8 Current measurement error <±0.1%+0.01%FS 9 Voltage measurement range 0~200 V (automatically change range in 1V/10V/70V/200V) 10 Voltage measurement error < ±0.1%+0.01%FS 11 Turns ratio measurement range 1~30000;
1~2000 error<0.05%; 2000~5000 error>0.1%; 5000~35000 error<0.2% 12 Phase measurement error:±2min,resolution:0.01min 13 Coil resistance measurement Range: 0~8kΩ(automatically change range in 2ohm /20ohm /80ohm/800ohm/8kohm)
Error< 0.2%RDG+0.02%FS Maximum resolution: 0.1mΩ 14 Temperature measurement -50~100 Celsius degree, error<3 Celsius degree 15 CT Secondary burden Range 0-160ohm (automatically change range in 2ohm/ 20ohm/80ohm/160ohm)
Error <0.2%RDG+0.02%FS Maximum resolution 0.001ohm 16 PT Secondary burden Range 0-80kohm (automatically change range in 800ohm / 8kohm /80kohm)
Error <0.2%RDG+0.02%FS Maximum resolution: 0.1ohm 17 PT ratio measurement Range: 1~30000, 1~5000 error<0.2% 5000~30000 error<0.5% 18 Saved data groups >1000groups 19 Work condition Temperature:-10ºC-50ºC, moist:≤90% 20 Size 70*50*41CM 21 Weight 40kg

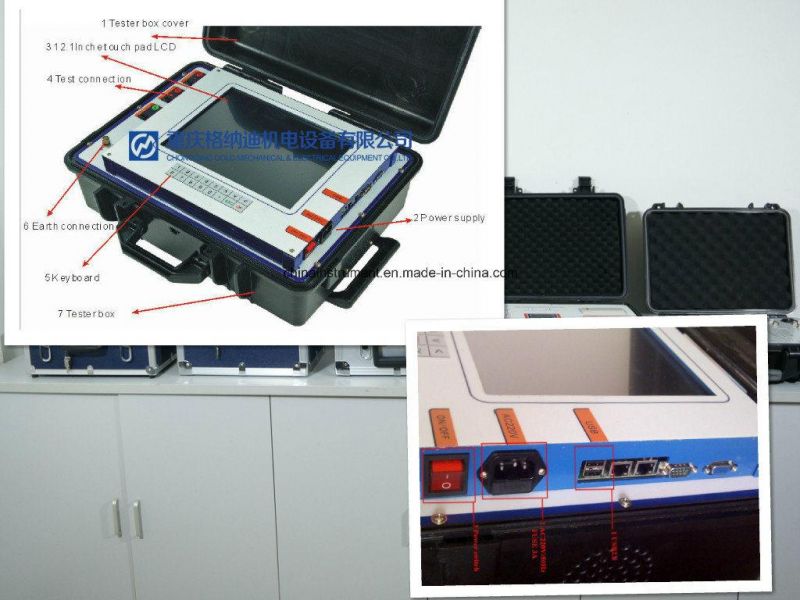

More details for CT PT Analyzer:
Order & Customer Feedback:
Our Company:
Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is founded in 2008. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality. we mainly design and manufacture the Transformer Tester, Circuit Breaker Analyzer, CT PT Analyzer, Hipot Tester , Relay Tester and so on for more than 10 years.
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;
We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.
1~2000 error<0.05%; 2000~5000 error>0.1%; 5000~35000 error<0.2%
Error< 0.2%RDG+0.02%FS Maximum resolution: 0.1mΩ
Error <0.2%RDG+0.02%FS Maximum resolution 0.001ohm
Error <0.2%RDG+0.02%FS Maximum resolution: 0.1ohm
More details for CT PT Analyzer:

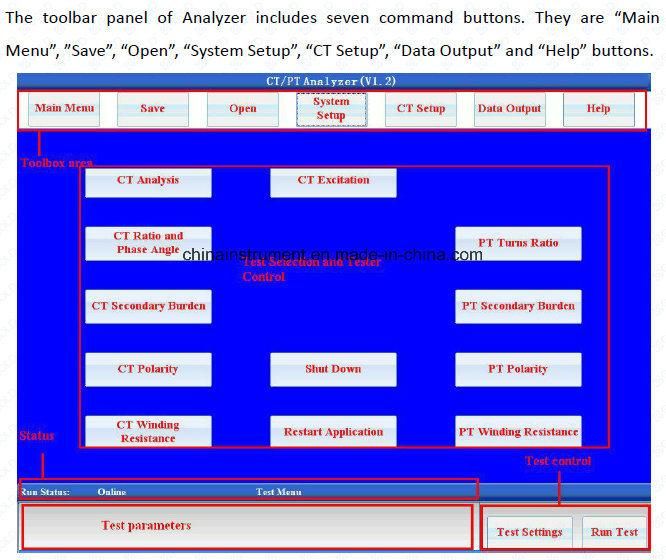

About CT/PT Analyzer software:
GDVA-405 Top-Rated Automatic Current Transformer and Potential Transformer CT PT Tester
Standard configuration for CT/PT Analyzer:
| Name | Quantity | Description |
| Host machine | 1 | |
| 3M mask cable | 2 | Test cable for power out and CT secondary connection |
| 10M mask cable | 1 | Test cable for CT primary connection |
| Grounding cable | 1 | |
| Big test pliers | 2 | One red and one black |
| Test gasket | 4 | Two red and two black |
| Test pin | 4 | Two red and two black |
| Test pliers | 12 | Three red and nine black |
| Short connection cable | 1 | Including six connection terminals |
| 3A fuse | 3 | |
| Power cable | 1 | |
| Accessories bag | 1 | |
| Production disk | 1 | Include Analysis application and user manual |
| User manual | 2 | |
| Inspection report | 1 | |
| Pass certificate | 1 |
