• Model NO.：HJ-4
• Power Source：AC220V
• Action Stroke：10mm (Fixed)
• Working Height Adjustment Range：100mm
• Fixture Holding Capacity：400*300mm
• Probe Installation Range：350*250mm
• Test Speed：60-300rpm
• Probe Height Adjustment：15mm
• Number of Probes：15 (Expandable to 120)
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-4 Power Source AC220V Action Stroke 10mm (Fixed) Working Height Adjustment Range 100mm Fixture Holding Capacity 400*300mm Probe Installation Range 350*250mm Test Speed 60-300rpm Probe Height Adjustment 15mm Number of Probes 15 (Expandable to 120) Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Summary :

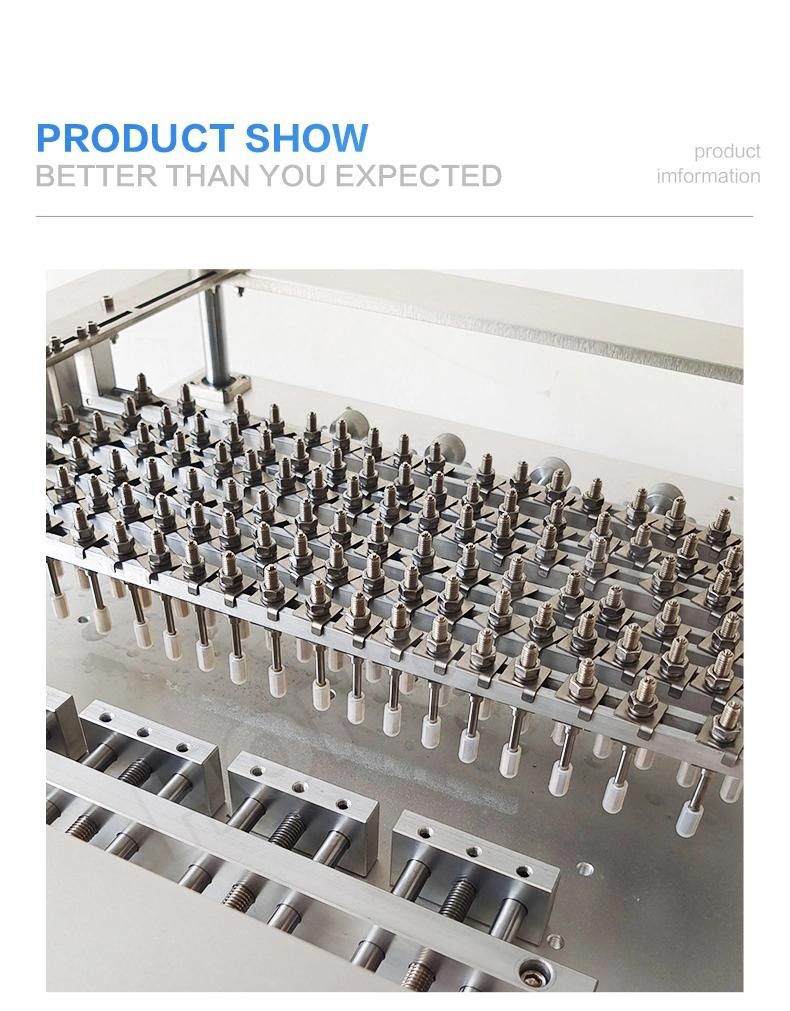

The Automatic Keyboard Key Life Test Machine can test the typing resistance life of various rubber and metal shrapnel keys such as NOTE-BOOK laptop, mobile phone, walkie-talkie, electronic dictionary, computer and other buttons and various buttons and switches for life test, especially for the fatigue test of computer keyboard keys. It can test multiple products at the same times, each products can be multi-point testing. Each key can set different load pressure and different height of pressure.


Action stroke	10mm (fixed)
Working height adjustment range	100mm
Fixture holding capacity	400*300mm
Probe installation range	350*250mm
Number of trials	999999*10 times
Test speed	60-300Rpm
Probe height adjustment	15mm
Number of probes	15 (expandable to 120)
Minimum distance between two probes	X direction 10mm, Y direction 20mm
physical dimension	520*420*980mm
weight	110kg
Voltage	AC 220V

Test Standards:
GB/T4967-95 silicone rubber and key life test is equivalent to JIS IEC related standards

Test theory:

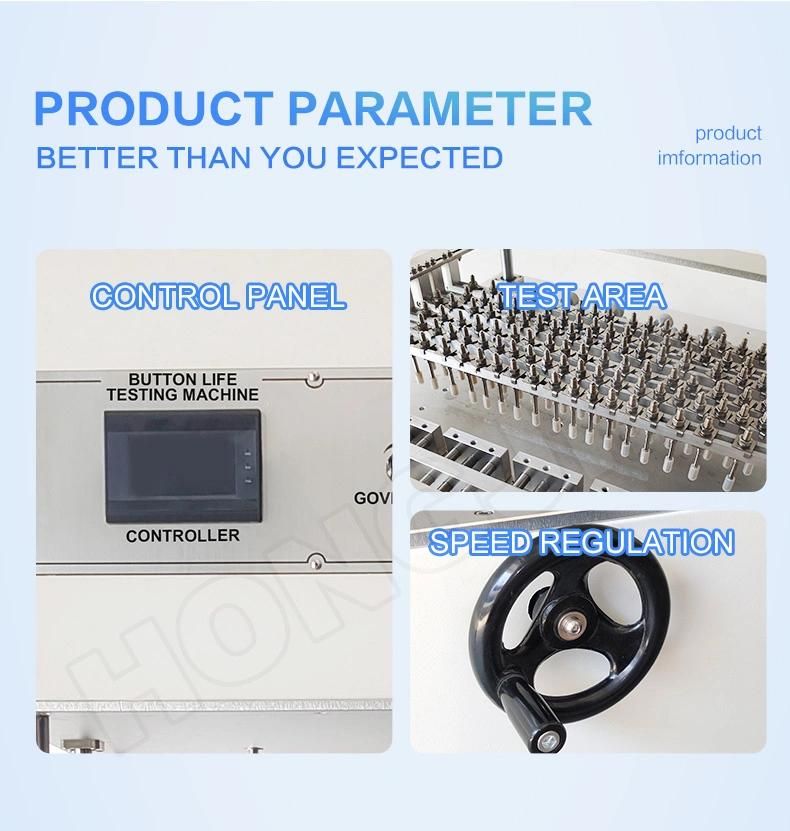

The key life testing machine uses the stepping motor drive eccentric structure to move the worktable up and down, so as to make the key or keyboard move relative to the probe. Set the test times of the counter. After the times arrive, check the damage of the key, so as to judge the quality and service life of the key.
