Fast Change Rate Climate Camber for Testing Electronic Instruction
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：900mm
- Mass Scope of Workpiece：<900kg
- Type：Material Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：YICT-225
- Loading Method：Dynamic Load
- Display：Digital
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC110V
- Oil Cylinder Position：Under
- Item：Fast Change Rate Climate Camber
- Inner Chamber Size(W*H*D)：50*75*60cm
- Exterior Chamber Size (W*H*D)：Can Custom
- Test Temperature：-70 C ~150c(Ks)
- Fast Change Rate：-70c Model: -50c ~+85c(Ks)
- Heating up &Cooling Down Time：3c~15c,Min
- Temp. Fluctuation：+,-2c
- Temp. Uniformity：+,-1.5c
- Temp. Resolution：0.01c
- Standard Power：AC 220V 50Hz
- Transport Package：Strong Wooden Case
- Specification：CE, SGS, TUV certificated.
- Trademark：Yuanyao
- Origin：Guangdong, China
- HS Code：9031200000
- Production Capacity：20 Sets,Week
Description

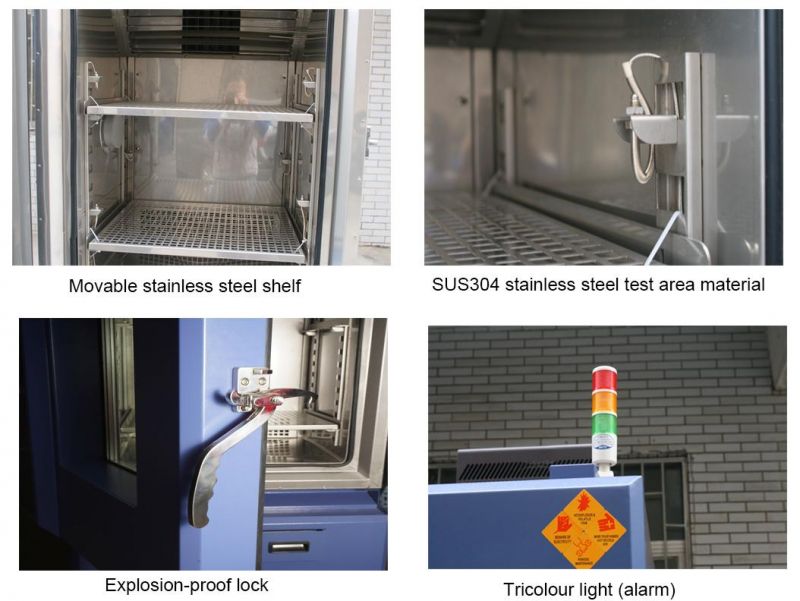

ModelYICT-1000 Inner chamber size w×h×d(cm) Exterior chamber size w×h×d(cm) Depends on inner chamber size Testing temperature range -70~150ºC(KS);-40~150ºC(KL);-20~150ºC(KR) Fast change temperature range -70ºC kinds:-50~+85ºC(KS);-40ºC kinds:-20~+85ºC(KL);-20ºC kinds:0~+85ºC(KR) Heating-up&Cooling-down speed 3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(Linear or Non-linear) Performance Temp.fluctuation ±2.0ºC Temp.uniformity ±1.5ºC Temp.resolution 0.01ºC Heating-up time -70~150ºC<60min;-40~150ºC<50min;-20~150ºC<35min Cooling-down time +20~ -70ºC<70min;+20~ -40ºC<55min;+20~ -20ºC<35min Material Exterior chamber material Cold-rolled steel+Powder coating Interior chamber material SUS#304 Stainless steel Insulation PU fiberglass wool System Wind circulation Cooling fan Heating system SUS#Stainless steel high-speed heater Refrigeration system Imported tecumseh compressor+fin type evaporator+air(water)cooling system Other components Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) Safety protection device Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp Power supply AC 3phase380V 60/50Hz Customization service Non-standard or special requirements are all welcome
Customization service is available, we can set & design equipments according to your own specific requirements!
Product detailes:
Company profile
In addition to water rain spray test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
If you want to know more about water resisitance test chamber,please feel free to contact us.
