• Model NO.：JbW-C
• Span of Sample Support：40mm
• Specimen Specification：10 *10 *55mm
• Feeding Speed：Less Than 2 Second
• Power Supply：Three-Phase Four-Wire 380V,50Hz
• Impact Energy：300j 450j 500j 600j 750j
• Impact Speed：5.24m,S
• Impact Blade：2-2.5mm
• Knife Thickness：16mm
• Temperature Range：Room Temperature
• Appearance：1700×2000×1450mm
• Transport Package：Plywood Standard Ocean Case
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• Production Capacity：100 PCS , Month

Basic Info.

Model NO. JbW-C Span of Sample Support 40mm Specimen Specification 10 *10 *55mm Feeding Speed Less Than 2 Second Power Supply Three-Phase Four-Wire 380V/50Hz Impact Energy 300j 450j 500j 600j 750j Impact Speed 5.24m/S Impact Blade 2-2.5mm Knife Thickness 16mm Temperature Range Room Temperature Appearance 1700×2000×1450mm Transport Package Plywood Standard Ocean Case Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 100 PCS / Month

Product Description

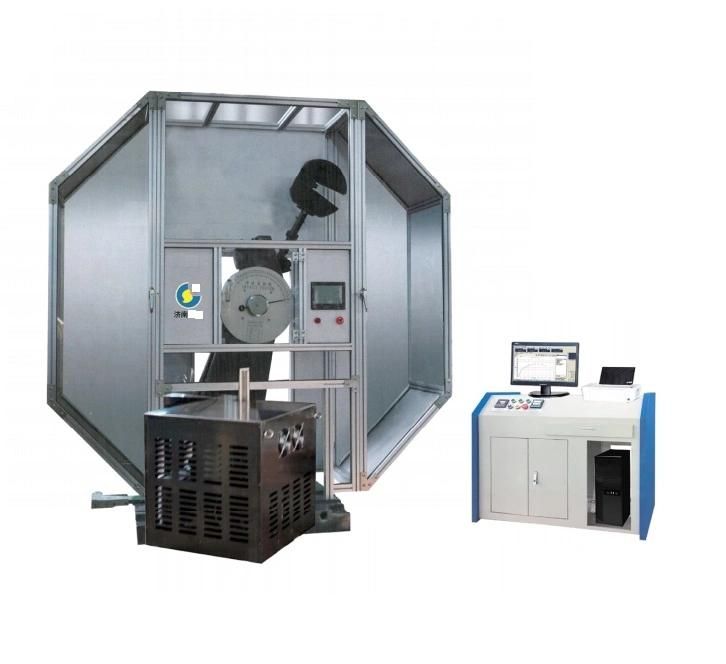

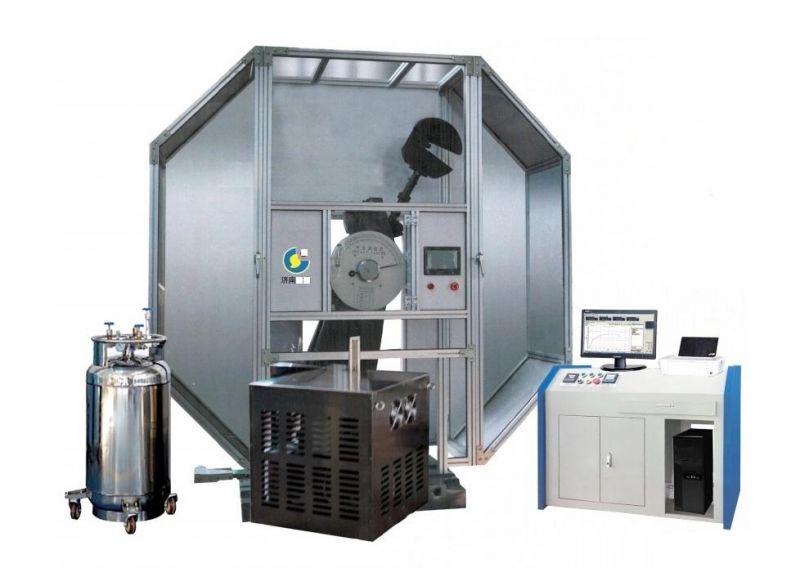

JbW-C 300j 450j 500j 600j 750j Computerized Auto Metal Specimen Impact Testing Machine

 1. Introduction
The device is the impact resistance of metal materials under dynamic load testing instrument, can do continuous heavy metal impact test, adopt the automatic control, control system adopts imported programmable controller (PLC), controlled by a computer software program take place, the whole process of impact test. This machine is equipped with aluminum alloy housing, provides conditions for the user's safety operation. Is indispensable for metal materials manufacturers, qualitative inspect branch testing instrument, also an important part of the scientific research units for the new material research instrument.
2. Technical Specification Standard bipolar reducer to replace the old pendulum complex transmission system, simple structure, convenient assembly and maintenance, long service life, low failure rate, maintenance free.
Reducer with the pendulum shaft through special electromagnetic clutch connection, the clutch torque, low noise, fast response, etc;Host base and integrated design casting post processing, high stability, high rigidity, pillar is symmetrical, before and after the pendulum shaft adopts beam method, simple structure, high machining accuracy;Conveyor belt sample recovery unit, the use of motor ways, facilitate sample collection;
Totally enclosed safety guards, can effectively prevent fracture sample splash, also can prevent into the scope of sample. Shield sets threshold position switch, in the case of a door open, test opportunity self-locking, the main operation is invalid, so as to prevent wrong operation, ensure the safety of test personnel. Gantry structure to facilitate equipment maintenance and adjustment pendulum mechanism.
