• Model NO.：STDM-3
• Accuracy Grade：1
• Load Way：Digital Display
• Loading Method：No
• Display：Digital
• Control：Digital
• Weight：50kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stdm-3 Compressometer,Extensometers
• Application：Measure Elastic Modulus of Concrete Prism
• Dial Gauge：1mm, 0.001
• Distance From Upper Ring Center to Botto：150mm
• Specimen Size：150*150*300mm 100*100*300mm
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STDM-3 Accuracy Grade 1 Load Way Digital Display Loading Method No Display Digital Control Digital Weight 50kg Power Source AC220V Oil Cylinder Position No Product Name Stdm-3 Compressometer/Extensometers Application Measure Elastic Modulus of Concrete Prism Dial Gauge 1mm, 0.001 Distance From Upper Ring Center to Botto 150mm Specimen Size 150*150*300mm 100*100*300mm Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

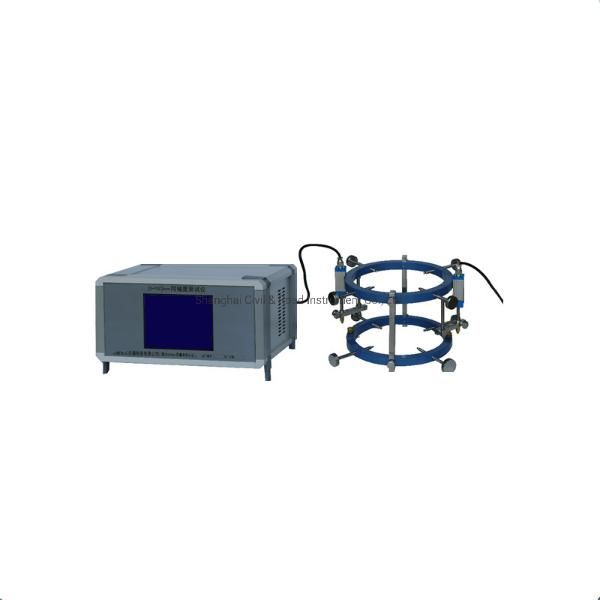

STDM-3 Concrete Compressometer Extensometer With Carry Case
Concrete Compressometer extensometer Elastic Modulus Testing Machine


Application: it is mainly used to measure elastic modulus of concrete prism/cylinder specimen against static force.
It is used for determining the axial deformation and diametrical extension of concrete cylinder specimens during the compression test. Complete with 1x0.001 mm dial gauge and wooden box.It is used to determine the strain and deformation characteristics of concrete and cylindrical specimens. It is comprises two lightweight metal castings for clamping to the specimens, two length gauge bars, a dial gauge 1mm travel x 0.001 mm divisions. Compressometer for cylinder dia. 150x150 x 300, 100 x 100x300 mm

Technical Parameters:

Include 2PCS Clamping Rings,2PCS Dial Gauge 1 x 0.001 mm and Carry Case


Product Name	Concrete Compressometer Apparatus
Size of specimen	150×150×300mm,100×100×300mm
Dial gauge	1mm, 0.001
Distance from upper ring center to bottom ring center	150mm
The ring from the bottom of the distance	75mm
