Pavement Material Strength Tester
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service:24 Hours Online Support
- Warranty:1 Year
- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:<900kg
- Type:Material Testing Machine
- Maxcapacity:No
Base Info
- Model NO.:STLQ-1
- Accuracy Grade:1
- Load Way:No
- Loading Method:No
- Display:Digital
- Control:Digital Display
- Weight:402kg
- Power Source:AC220V
- Oil Cylinder Position:No
- Transport Package:Wooden Case
- Specification:88x85x169cm
- Trademark:SHTG
- Origin:China
- HS Code:9031809090
- Production Capacity:100PCS,Month
Description
Basic Info.
Model NO. STLQ-1 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 402kg Power Source AC220V Oil Cylinder Position No Transport Package Wooden Case Specification 88x85x169cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

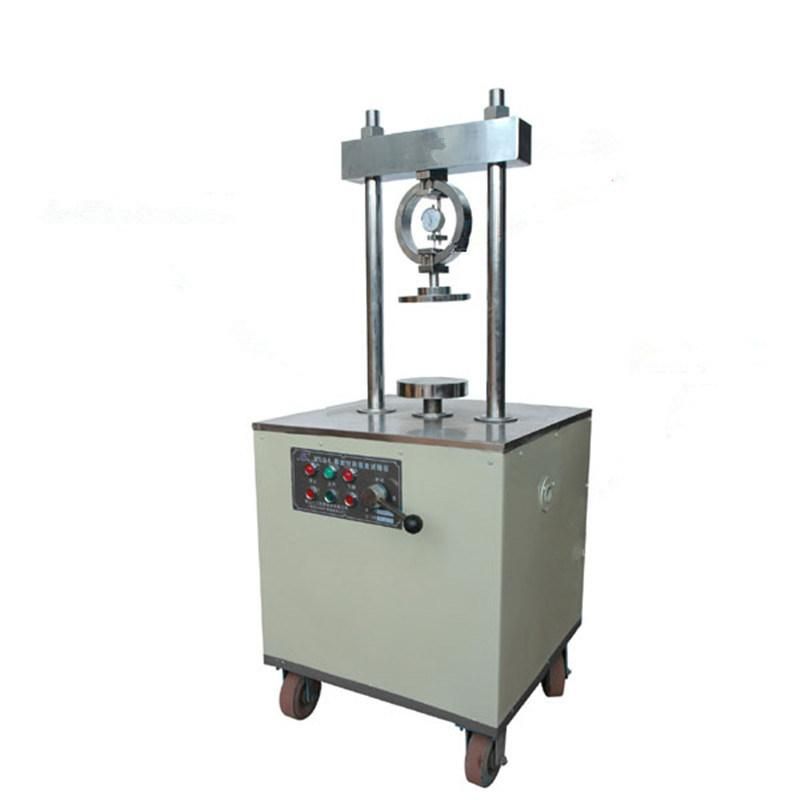

STLQ-1 Pavement Material Strength TesterProduct Specification: Pavement material strength tester is a multi-functional road sub-grade material experimental instrument, which is composed of a base, a gearbox, a column, a bracket, a motor, and an electrical switch.
Application: the pavement material strength tester is applied to perform unconfined strength test, CBR test, Marshall test, rebound modulus test, cleavage strength test on pavement materials.
This testing machine can also test all kinds of adhesive materials and stabilized soil specimen's unconfined compression strength and indirect tensile strength, test CBR for soil and pavement materials, test asphalt mixture's hot stability and anti-plastic flow-stability and flow value. Adjustable flat top plate can automatically ascend and descend to leveling.
The exposed part of turn screw have protective cover, it can avoid the screw exceed the position and take off in operation, and avoid the screw be jammed by other materials as well.
Specification:
Max. rated load | 100k N |
Max. rise distance of the plate of the lead screw | 200mm |
Controllable velocity | High-speed: 50mm/min Low-speed: 1mm/min |
Rating of machine | JW7134 550W,AC220V± 10%, AC380V± 10% |
Feature | Stainless steel working table |
