• Model NO.：MP-1B
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Trademark：OEM ODM
• Origin：China Shandong Others
• Production Capacity：2000 Set Per Year

Basic Info.

Model NO. MP-1B Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Trademark OEM ODM Origin China Shandong Others Production Capacity 2000 Set Per Year

Product Description

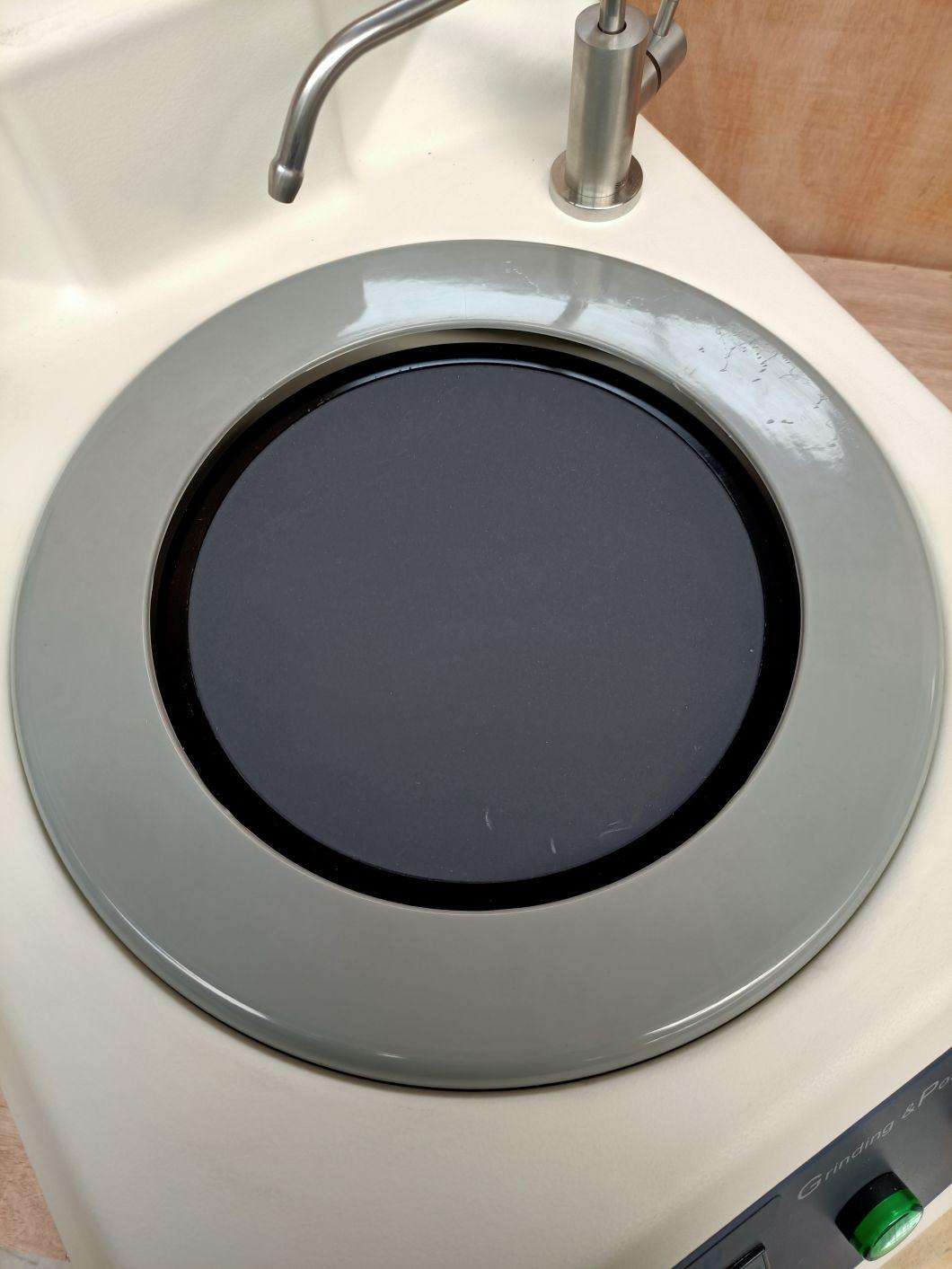

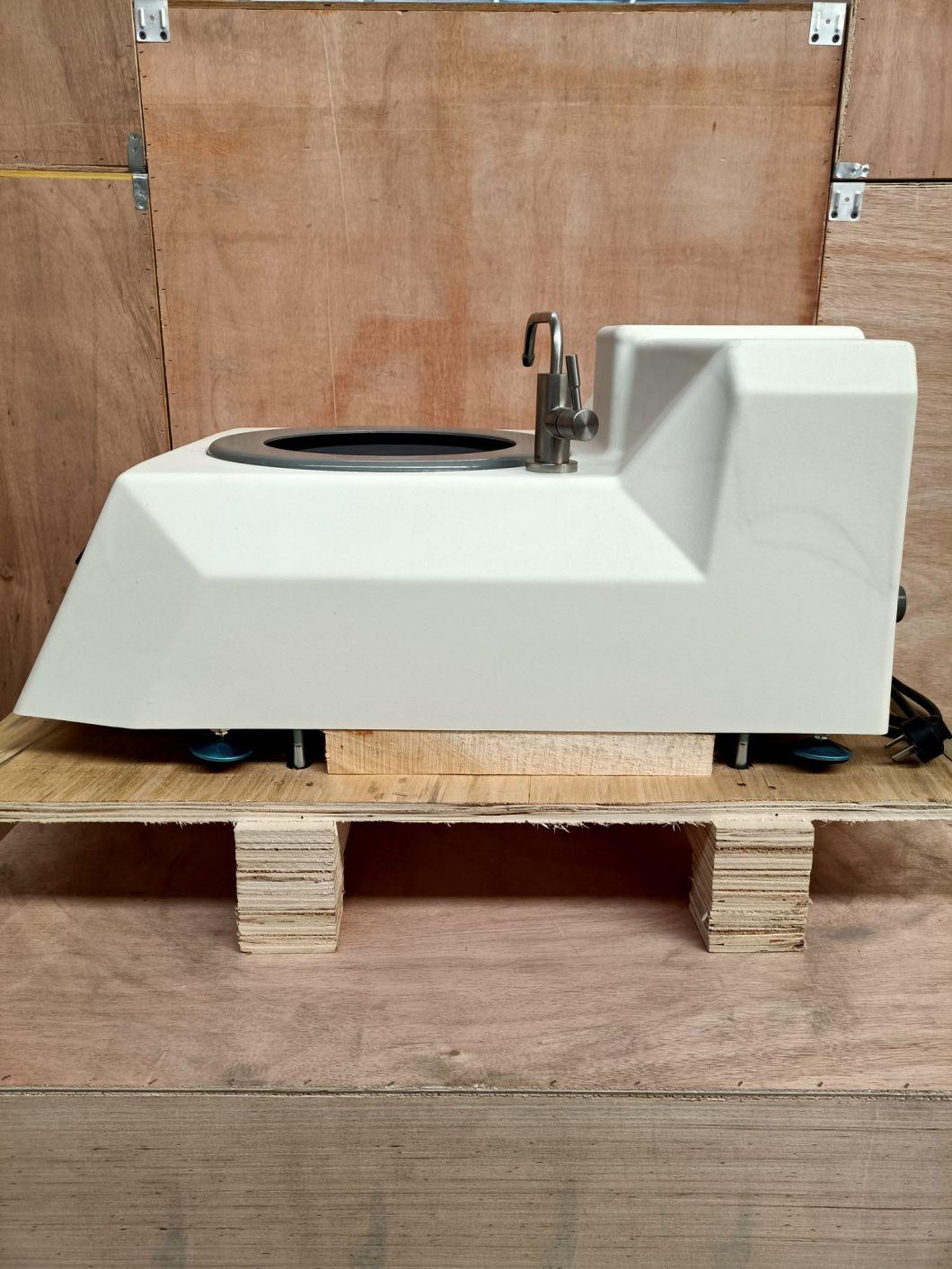

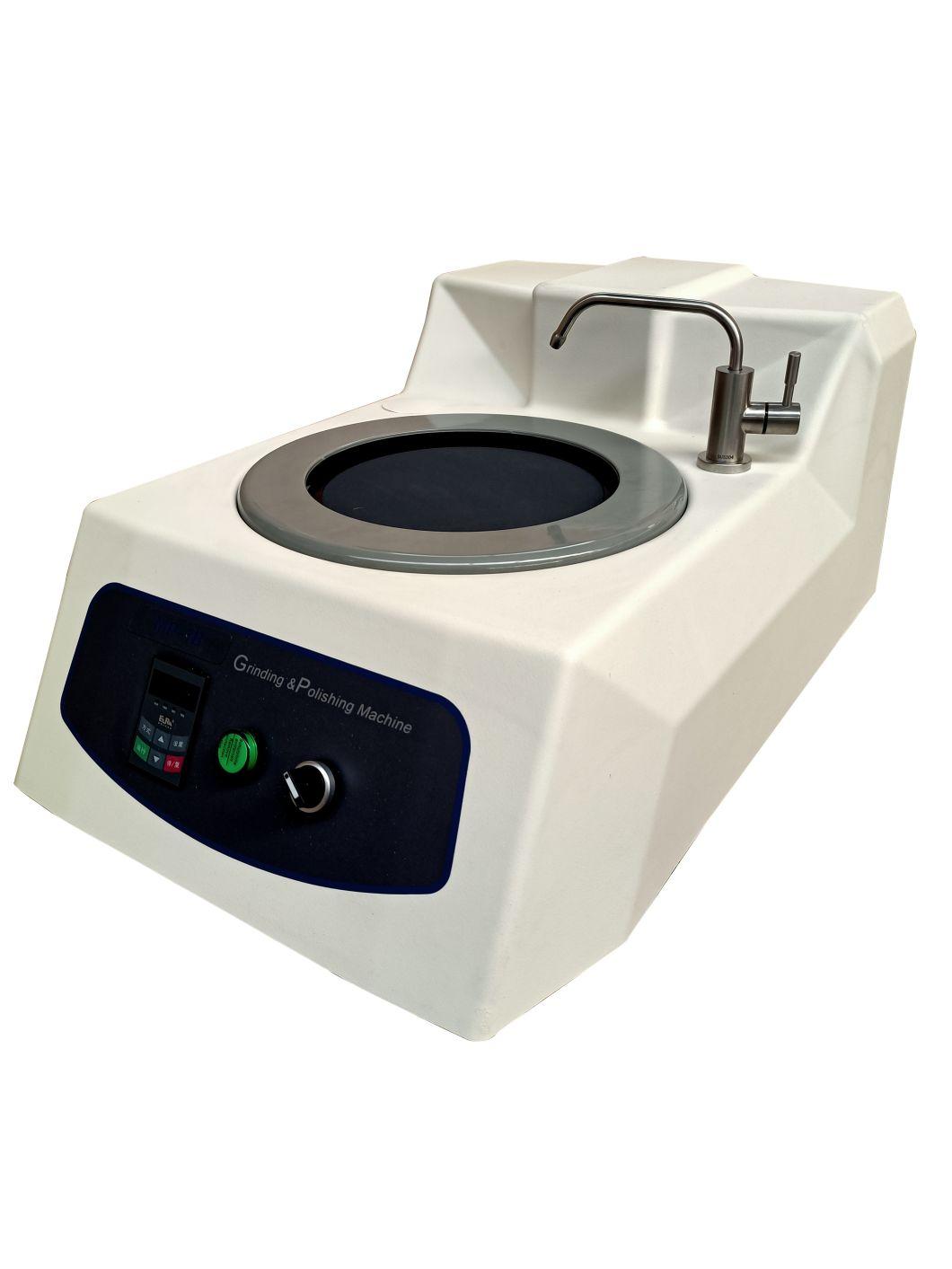

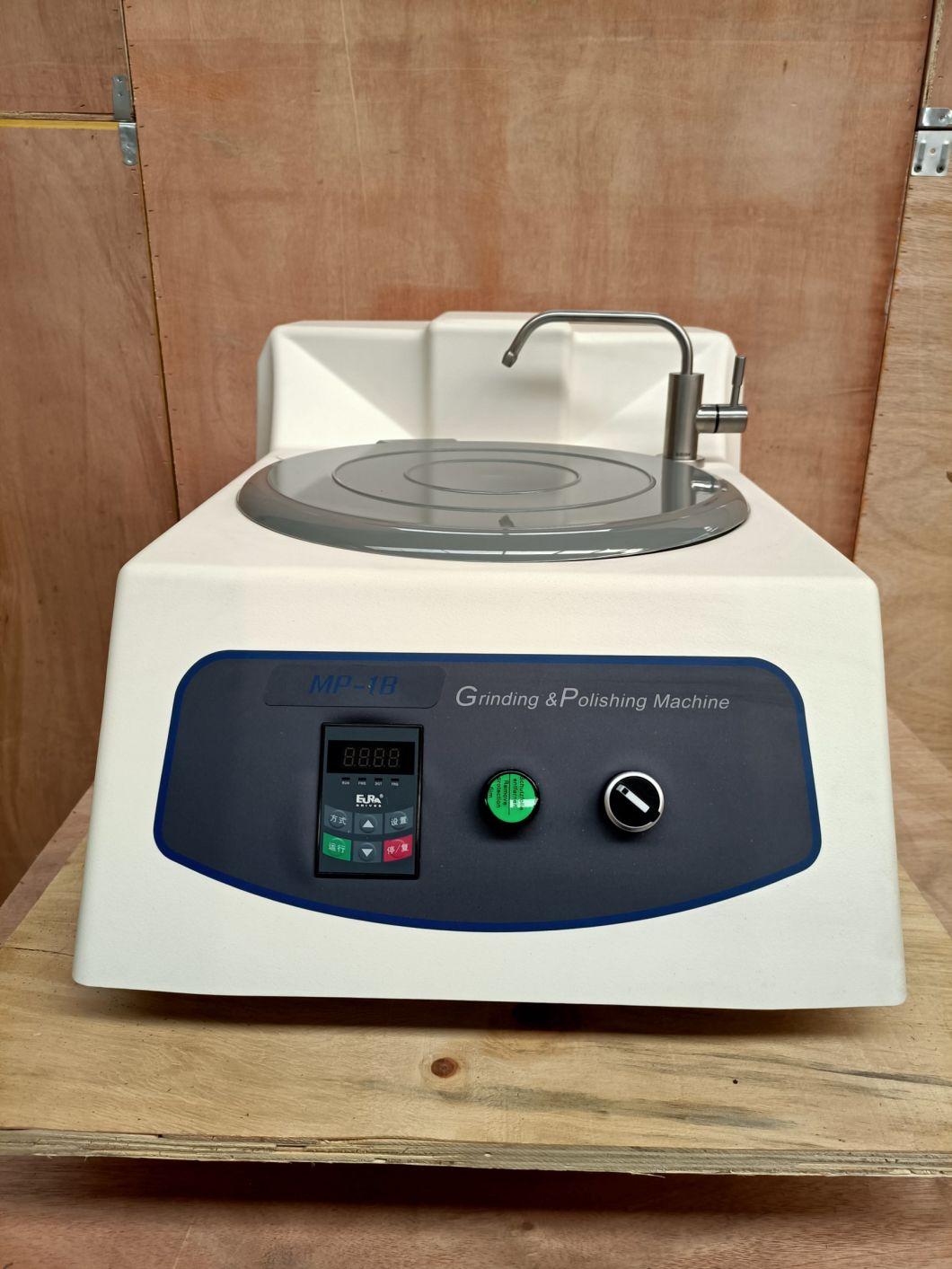

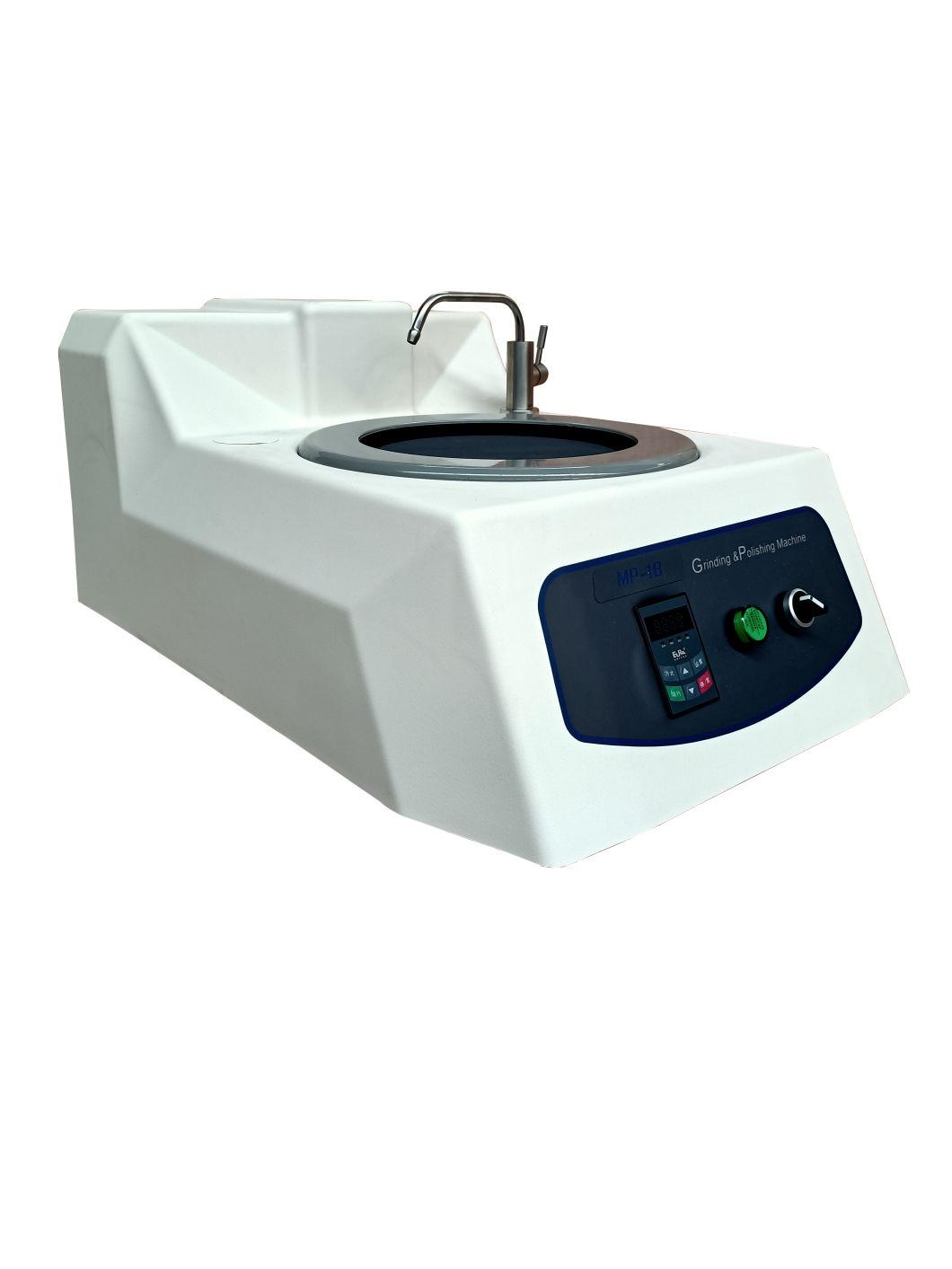

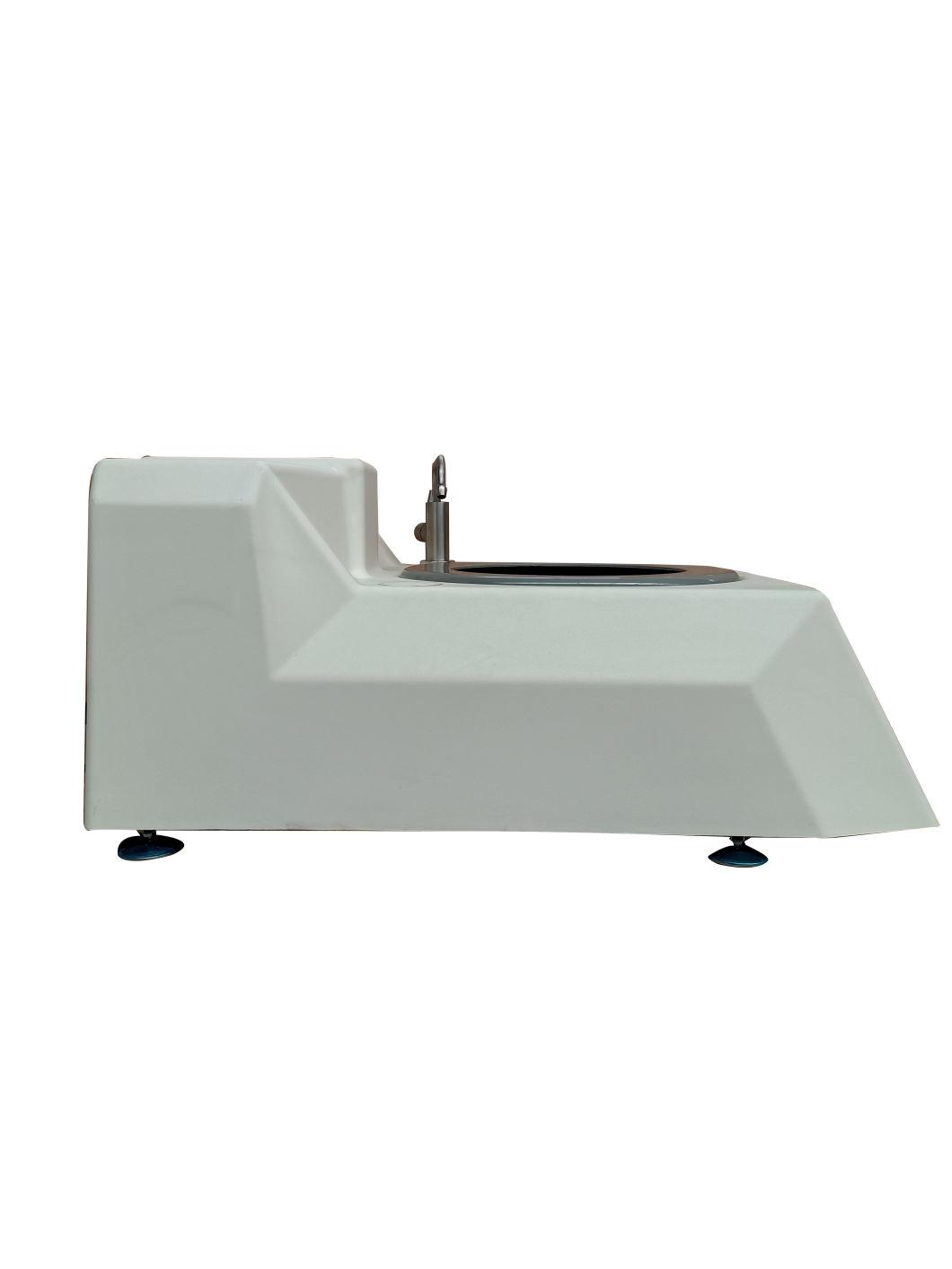

MP-1B Metallographic sample grinding and polishing machine
Appliance and characteristics of grinding and polishing machine

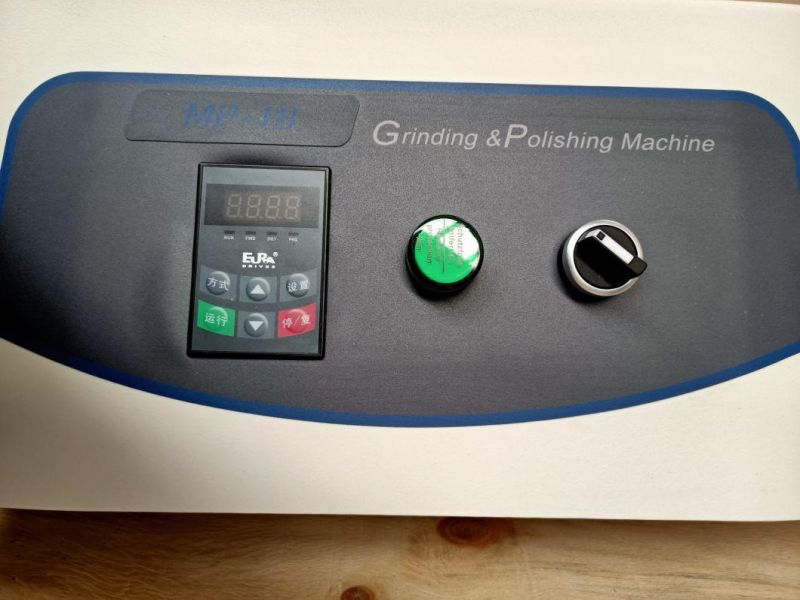

This grinding and polishing machine is a single-disc machine, which is suitable for pre-grinding, grinding and polishing metallographic samples. The speed of this machine is adjusted by the frequency converter, which can directly obtain the speed between 150~1000 rpm, so that the machine has a wider range of applications. It is an indispensable equipment for users to make metallographic samples. This machine is equipped with a cooling device, which can cool the sample during pre-grinding to prevent damage to the metallographic structure due to overheating of the sample. The machine is easy to use and reliable, and it is an ideal sample preparation equipment for factories, research institutes and laboratories of universities and colleges.

Technical Data

Model	MP-1B Metallographic Sample Grinding and Polishing Machine
Grinding and polishing disc	Standard ф230mm/Optional ф203mm
Rotating speed	150-1000r/min
Operating Voltage	220V/50Hz
Electric machine	YSS7124, 550W
Dimensions	750mm×350mm×500mm
weight	38kg
