Microcomputer Control Pavement Material Strength Tester

Shanghai Civil & Road Instrument Co., Ltd.
  • After-sales Service：24 Hours Online Support
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Material Testing Machine
  • Maxcapacity：No

Base Info

  • Model NO.：STLQ-5
  • Accuracy Grade：1
  • Load Way：No
  • Loading Method：No
  • Display：Digital
  • Control：Digital Display
  • Weight：402kg
  • Power Source：AC220V
  • Oil Cylinder Position：No
  • Transport Package：Wooden Case
  • Specification：88x85x169cm
  • Trademark：SHTG
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：100PCS,Month

Description

Basic Info.

Model NO. STLQ-5 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 402kg Power Source AC220V Oil Cylinder Position No Transport Package Wooden Case Specification 88x85x169cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

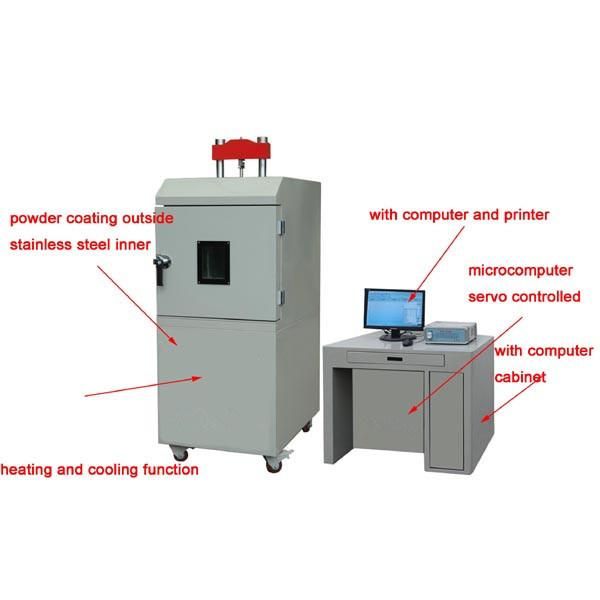

STLQ-5 Microcomputer Control Pavement Material Strength Tester

Function: the pavement material strength tester is applied to perform single axial compression test , bending test, unconfined strength test, CBR test, Marshall test, rebound modulus test, cleavage strength test on pavement materials. Feature: PC control, with refrigerating and heating function, total stainless steel production inside, High quality spraying plastics outside.

Specification:

Max load100kN    200kN
Precision±1%
Allowed overload+10% long-time overload not reccomended;
Display speed20times/second
Scanning speed100times/second
FeaturesDigital servo control, Stainless steel working table, spray-paint, ABS plastic control cabinet, unconfined compression pressure head.
 Microcomputer Control Pavement Material Strength Tester
