• Model NO.：VLF
• Voltage Waveform Distortion：≤5%
• Power Supply：AC220V ± 10%, 50Hz,60Hz
• Environment Temperature：0~50°c
• Humidity：≤85%Rh
• Transport Package：Standard Wooden Case
• Specification：Controller and booster
• Trademark：GOLD
• Origin：China
• HS Code：9030849000
• Production Capacity：1000 Sets , Month

PARAMETERVLF-SERIESStructureController and boosterOutput voltage30kV/40kV/50kV/60kV/70kV/80kV for optionOutput frequency0.1Hz, 0.05Hz, 0.02HzStability of frequencyFluctuation<0.5%Measurement accuracy±3%Positive and negtive voltage peak errors≤3%Voltage waveform distortion≤5%Use condition10°C to +50°C, humidity ≤85%Power supplyAC220V ± 10%, 50Hz/60HzPositive and negative voltage peak errors< 3%RDG+0.3%FSMeasurement error≤35

• Main Features:

1. Advanced technique: adopts digital inverter technology, microcomputer control, fully automated test;

2. Easy to operate;

3. Full protection: multiple protection (over-voltage protection, over-current protection), prompt action (action time≤20ms), the device safe and reliable;

4. Safe and reliable: the controller connect with HV generator, photoelectric control, safe and reliable;

5. Adopts high and low voltage closed-loop negative feedback control circuit, output without capacitance-rised effect;

6. Completely equipped: LCD, auto save and print data;

7. Wide measurement range: 0.1Hz, 0.05Hz and 0.02Hz multi-frequency selection;

8. Small in volume, light in weight: benefit to field tests.

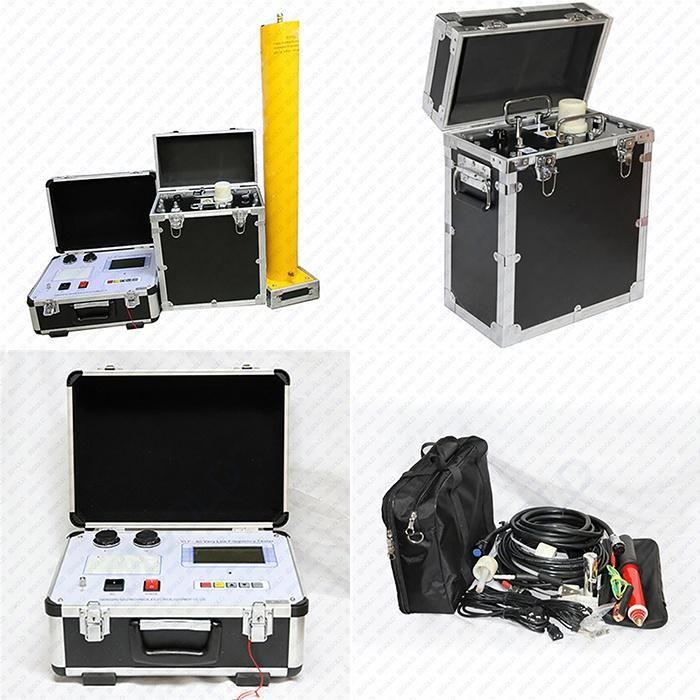

• Product Show:
