• Model NO.：CXGJ-10M
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：by Others
• Name：Pipe Hydrostatic Testing Machine
• Usage：PE PP-R PVC
• Pipe Diameter：D16mm- D1000mm-1200mm
• Test Stations：1-40
• Pressure Adding Range：0.4~10.000MPa
• Timing Range：0-9999h
• Timing Precision：1s
• Transport Package：Plywood Case
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• Production Capacity：100 PCS , Month

Basic Info.

Model NO. CXGJ-10M Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position by Others Name Pipe Hydrostatic Testing Machine Usage PE PP-R PVC Pipe Diameter D16mm- D1000mm-1200mm Test Stations 1-40 Pressure Adding Range 0.4~10.000MPa Timing Range 0-9999h Timing Precision 1s Transport Package Plywood Case Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 100 PCS / Month

Product Description

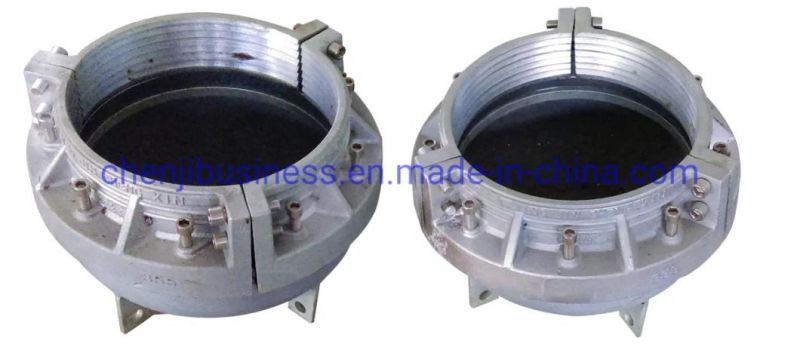

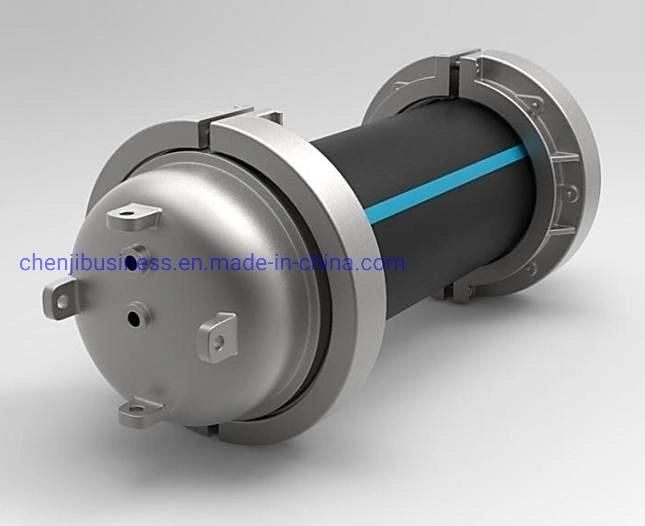

CXGJ-10M Plastic Pipe hydrostatic Testing Machine within 10Mpa Pressure burst



.Application
The machine is designed and manufactured according to GB/T6111      Thermoplastics pipes for the conveyance of fluids ----Resistance to internal pressure----Test method and GB/T15560Standard test method for short-time hydraulic failure and resistance to constant internal pressure of the plastics pipes for the transport of fluids . It is suitable to determine the pressure-resisting broken time or the maximum pressure value of instantaneous blast of thermoplastic pipes and compound pipes (such as PP-R ,PP-B ,PP-A ,PE ,PE-X ,PVC ,PVC-U and PVC-C ) under long-term constant internal pressure and temperature .It is indispensable for manufacturers of plastic pipes and testing institutions .
The machine meets the following standards :
GB/T18742.1  Polypropylene piping systems for hot and cold water
                    installation - Part 1 :General
GB/T18742.2 Polypropylene piping systems for hot and cold water
                    installation - Part 2 :Pipes
GB/T18742.3   Polypropylene piping systems for hot and cold water
                    installation - Part 3 :Fittings
GB/T13663     Polypropylene pipes for water supply
GB/T15558.1  Buried polyethylene (PE) pipes for the supply for
                   gaseous fuels
GB/T15558.2Buried polyethylene (PE) fittings for the supply for
                   gaseous fuels
GB/T18992.1 Crosslinked polyethylene (PE-X) piping systems for hot
                  and cold water installation - Part 1 :General
GB/T18992.2 Crosslinked polyethylene (PE-X) piping systems for hot
                   and cold water installation -Part 2 :pipes
GB/T10002.1 Unoplasticized polyvinyl chloride (PVC-U) pipe for
                   water supply
GB/T10002.2  Unoplasticized polyvinyl chloride (PVC-U) fitting for
                   water supply
GB/T18993.1   Chlorinated poly (vinyl chloride) piping system for hot
                    and cold water installations -Part 1:General
GB/T18993.2 Chlorinated poly (vinyl chloride) piping system for hot
                   and cold water installations -Part 2:pipes
GB/T18997.1 Polyethylene/Aluminum /polyethylene composite pressure
            pipe- Part 1 :PE/AL/PE pipe overlap-welded by aluminum pipe
GB/T18997.2 Polyethylene/Aluminum /polyethylene composite pressure
               pipe- Part 2 : PE/AL/PE pipe butt-welded by aluminum pipe
ISO 1167   Plastic piping systems - Thermoplastics pipes - Determination of resistance to internal pressure at constant temperature.
.Feature
1.1 This instrument is used for testing a certain range of internal pressure in a long period of time of plastic pipes.

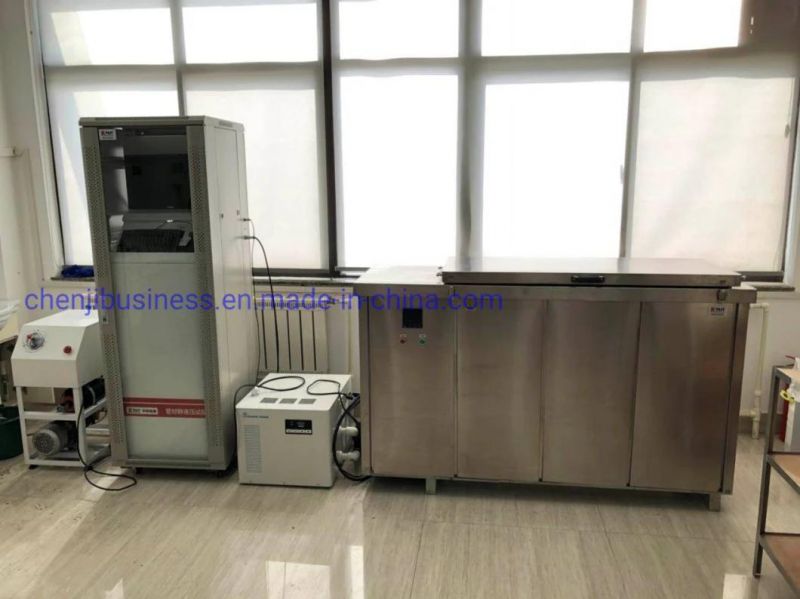

1.2 The instrument consists of a pressure host, a pressure station, a water tank, a temperature control system and a computer software system.
Main Frame: It consists of pressure micro control parts, automatic filling pressure and electric discharge pressure parts, pressure micro control part adopts the microcomputer MCU control; equipped with high resolution, high speed of ∑ - delta 16-bit adc chip, real-time communication and computer; and it can automatically fill and relief pressure according to the situation of pressure.
Pressure Station: Its main function is to provide pressure to the main frame, the requirement of lower limit pressure of pressure station requirement must be higher than all tested specimen. The plunger pump of the station is made in the United States (large flow, low noise, high pressure, free maintenance).
Water Tank: It consists of electric opening part, self-circulation part, heating part, automatic water filling part and insulation part.
Temperature Control System: Accurately control the temperature of the water tank, temperature display, set temperature individually. It can control the liquid level of tank at a reasonable position, at the same time it can also guarantee the temperature.
Software System: By connecting with RS232 serial interface to the pressure on the host, it can provide the parameters setting, calibration, pressure relief, zero, amplitude modulation, drawing the test, test records and print test reports and other functions.

2 Application

The instrument is widely used in the internal pressure test of all kinds of plastic pipes. It is the ideal testing instrument for construction industry, Plastic pipe producers, national testing sectors and the scientific research sectors.

3 Working Conditions

Following conditions must be satisfied to conduct a test:
3.1 Ambient Temperature: 10ºC~40ºC;
3.2 Ambient Temperature: 30%-80%;
3.3 Vibration-free,no corrosive medium environment;
3.4 Install and adjust the instrument to level on a solid foundation;
3.5 No strong electromagnetic interference and no strong wind resistance;
3.6 A indoor exhaust system is needed to prevent the instrume

 .Main specifications

1. Test stations :1-40

2. pressure adding range :0.4~10.000MPa
3. Max. working pressure of main pressure system 10MPa
4. high pressure piston pump
5 .pressure controlling precision :+2% and -1% of upper and lower limit of
test pressure value respectively
6. resolution of pressure value :0.001Mpa
7. transformer :test pressure sampling periods is 0.1 millisecond .
8. timing range :0-9999h
9. timing precision :1S
.Structure and theory
  The high pressure liquid generated by high pressure pump is transported to samples in media temperature constant tanks through high pressure hoses to carry out pipe long time hydrostatic pressure tests after being measured by main engine of pressure control system
