CE Certificate Current Transformer and Power Transformer Tester, CT PT Analyzer 0.02% Class
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Mass Scope of Workpiece：>20000kg
- Type：Universal Testing Machine
- Maxcapacity：>1000KN
- Load Way：Electronic Load
Base Info
- Model NO.：GDVA-405 CT PT Analyzer
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Usage：Transformer Tester
- Test Standards：IEC60044-1,2,5,6
- Voltage Output：0.1~180V (AC)
- Current Output：0.001~5A(RMS)
- Maximum Knee Voltage：45kv
- Power Supply：220V 50Hz
- Product Name：Current Power Transformer Tester CT PT Analyzer
- Current Measurement Range：0~10A
- Secondary Current：1A,3A,5A
- Power Output：500va
- Transport Package：Wooden Case
- Specification：65*46*40CM
- Trademark：Gold
- Origin：Chongqing
- HS Code：9031809090
- Production Capacity：200PCS,Month CT PT Analyzer
Description
GDVA-405 Current Transformer and Power Transformer Tester1 Test standards IEC60044-1, IEC60044-6, GB1208, GB16847, C57.13 2 Power supply AC220V±10%,50Hz/60Hz±10% 3 Power output 0.1~125V (AC) 4 Current output 0.001~5A(RMS) 5 Power output 300VA 6 Max. knee voltage measurement 45kv 7 Current measurement range 0~10A (automatically change range in 0.1/0.4/2/10A) 8 Current measurement error <±0.1%+0.01%FS 9 Voltage measurement range 0~200 V (automatically change range in 1V/10V/70V/200V) 10 Voltage measurement error < ±0.1%+0.01%FS 11 Turns ratio measurement range 1~30000;
1~2000 error<0.05%; 2000~5000 error>0.1%; 5000~35000 error<0.2% 12 Phase measurement error:±2min,resolution:0.01min 13 Coil resistance measurement Range: 0~8kΩ(automatically change range in 2ohm /20ohm /80ohm/800ohm/8kohm)
Error< 0.2%RDG+0.02%FS Maximum resolution: 0.1mΩ 14 Temperature measurement -50~100 Celsius degree, error<3 Celsius degree 15 CT Secondary burden Range 0-160ohm (automatically change range in 2ohm/ 20ohm/80ohm/160ohm)
Error <0.2%RDG+0.02%FS Maximum resolution 0.001ohm 16 PT Secondary burden Range 0-80kohm (automatically change range in 800ohm / 8kohm /80kohm)
Error <0.2%RDG+0.02%FS Maximum resolution: 0.1ohm 17 PT ratio measurement Range: 1~30000, 1~5000 error<0.2% 5000~30000 error<0.5% 18 Saved data groups >1000groups 19 Work condition Temperature:-10ºC-50ºC, moist:≤90% 20 Size 70*50*41CM 21 Weight 40kg

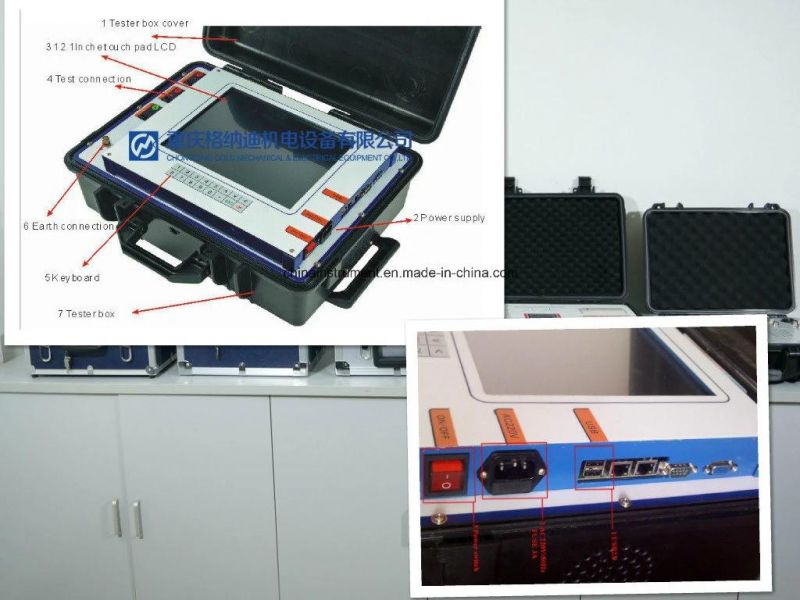

More details for Current Transformer and Power Transformer Tester:

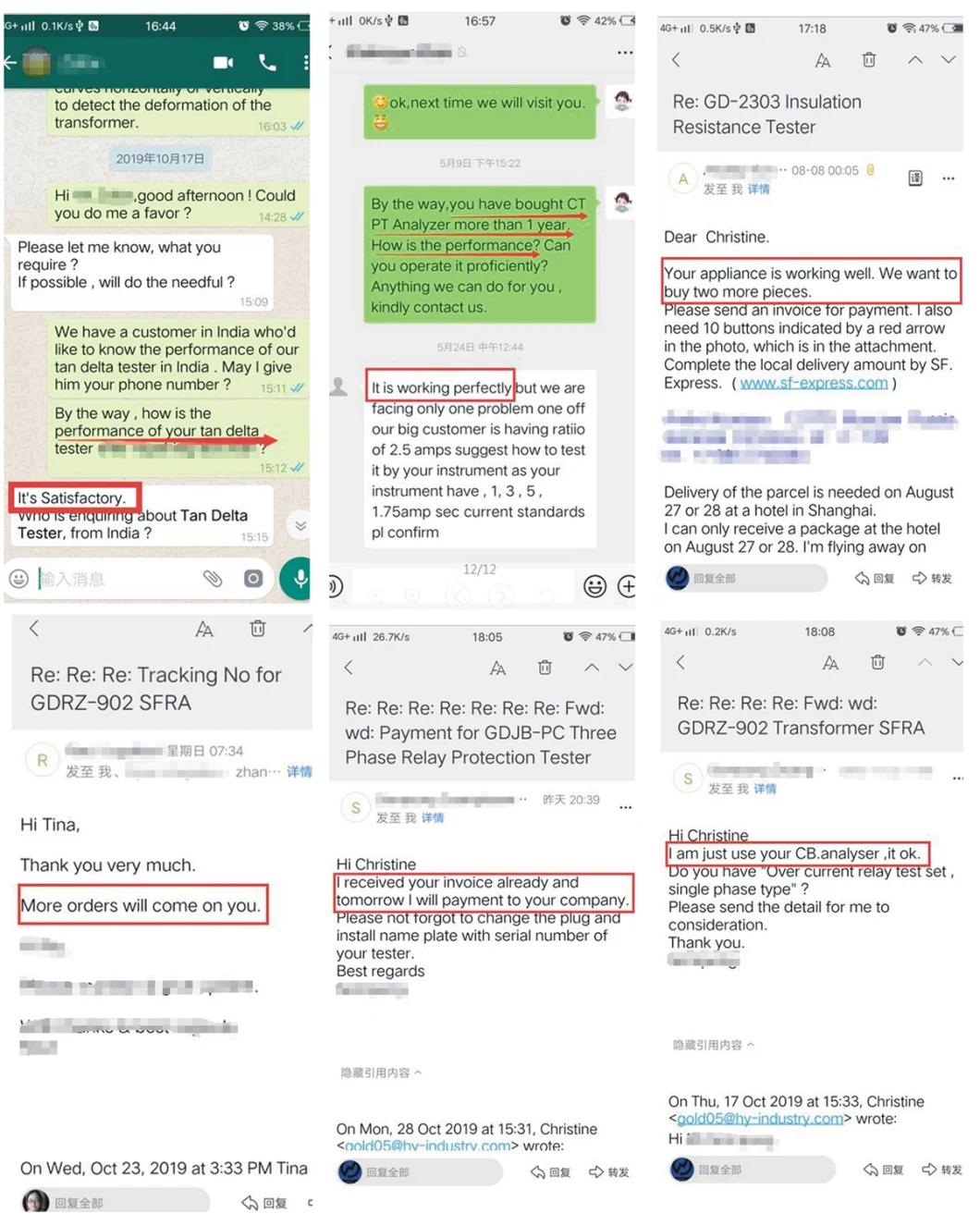

Order & Customer Feedback:

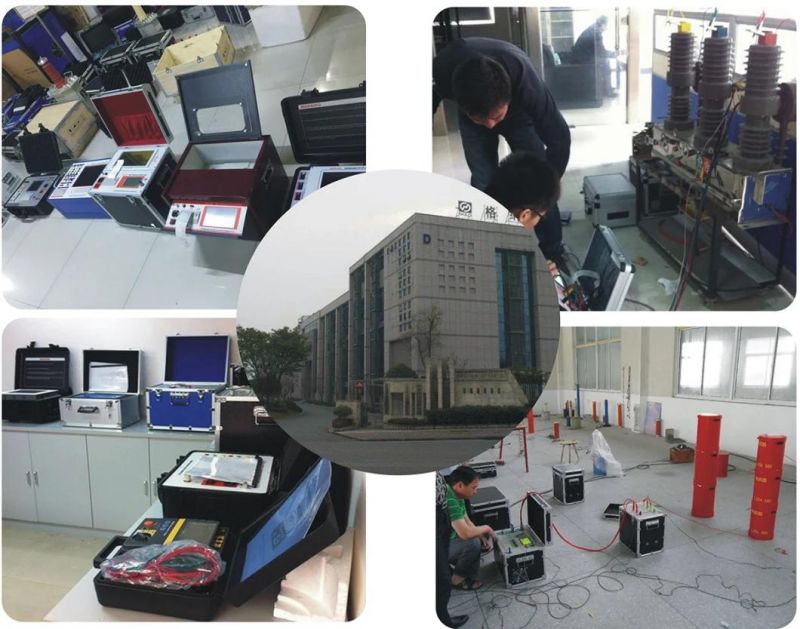

Our Company:
1~2000 error<0.05%; 2000~5000 error>0.1%; 5000~35000 error<0.2%
Error< 0.2%RDG+0.02%FS Maximum resolution: 0.1mΩ
Error <0.2%RDG+0.02%FS Maximum resolution 0.001ohm
Error <0.2%RDG+0.02%FS Maximum resolution: 0.1ohm
More details for Current Transformer and Power Transformer Tester:

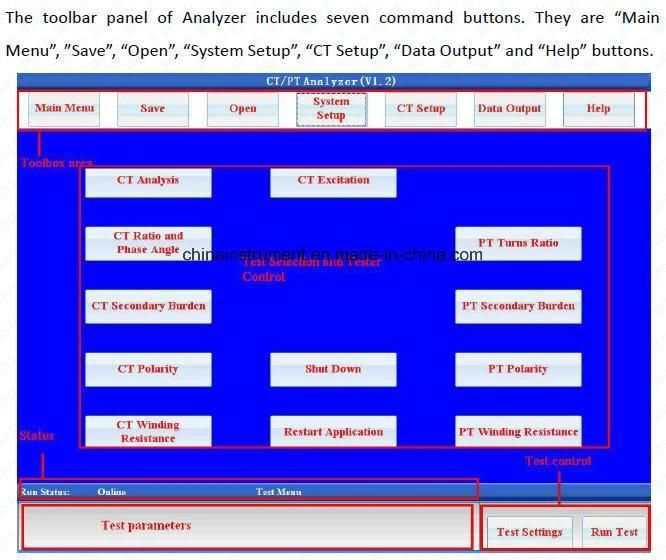

About CT/PT Analyzer software:
GDVA-405 Top-Rated Automatic Current Transformer and Potential Transformer CT PT Tester
Standard configuration for CT/PT Analyzer:
| Name | Quantity | Description |
| Host machine | 1 | |
| 3M mask cable | 2 | Test cable for power out and CT secondary connection |
| 10M mask cable | 1 | Test cable for CT primary connection |
| Grounding cable | 1 | |
| Big test pliers | 2 | One red and one black |
| Test gasket | 4 | Two red and two black |
| Test pin | 4 | Two red and two black |
| Test pliers | 12 | Three red and nine black |
| Short connection cable | 1 | Including six connection terminals |
| 3A fuse | 3 | |
| Power cable | 1 | |
| Accessories bag | 1 | |
| Production disk | 1 | Include Analysis application and user manual |
| User manual | 2 | |
| Inspection report | 1 | |
| Pass certificate | 1 |
