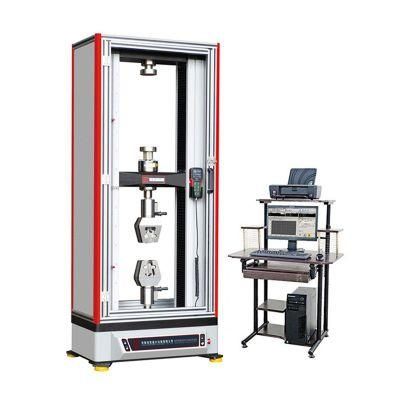

Metal/Plastic/Rubber Material Universal Tensile/Compression/Bending Strength Testing Machine (20/50/100/200/300/600KN)
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：24-Hour After-Sale Technical Support,Mail, Video
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
Base Info
- Model NO.：WDW-20,50,100,200,300,600
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC220V
- Oil Cylinder Position：None
- Certifications：Ce and ISO
- Load Accuracy：1 Class or 0.5 Class for Choice
- Load Resolution：1,300000
- Resolution of Deformation：0.04um
- Test Speed：0.05-1000 mm Per Min Stepless Arbitrary Setting
- Compression and Tensile Space：800 mm(Can Be Customized)
- Test Width：400mm
- Grips：Wedge Type or Customized
- Rang of Deformation：4 to 100 Percent Fs
- Load Range：2 to 100 Percent Fs
- Transport Package：Standard Wooden Export Box
- Specification：100N-600KN for choice
- Trademark：HST or OEM
- Origin：China
- HS Code：9024109000
- Production Capacity：300 Sets Per Month
Description
0.01mmTest speed(mm/min) 0.05-1000 0.05-500 0.05-500 0.05-200 0.05-200 Tensile space(mm) 800 700 700 550 700 Compression space(mm) 800 700 700 550 700 Test width(mm) 400 500 550 600 500 Thickness of beam(mm) 30 58 68 108 200

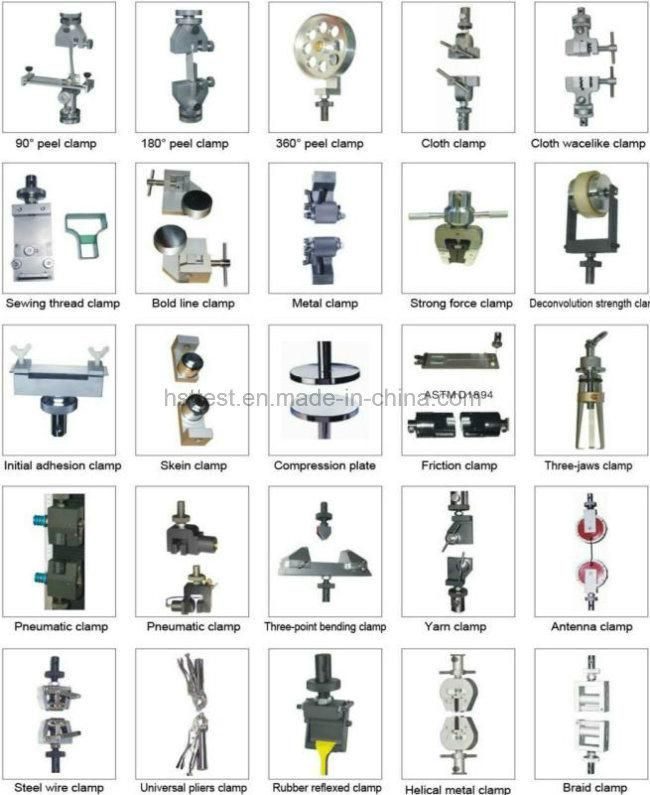

Fixtures for choice according to different material:

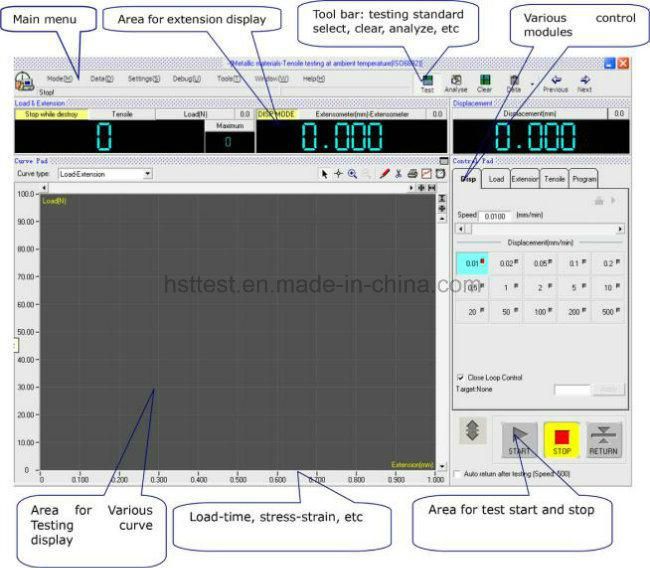

Machine software show:
Fixtures for choice according to different material:
Machine software show:
