• Model NO.：GD-13823
• Control Chamber Dimension：600(W)*600(D)*1600(H)mm
• Combustion Chamber Dimensions：3000(W)*3000(D)*2400(H)mm
• Weight：80kg
• Power Supply：AC220V+,-10%, 50Hz
• Transport Package：Packed in Veneer Case
• Specification：Refer to the specifications
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100 Set,Month

Basic Info.

Model NO. GD-13823 Control Chamber Dimension 600(W)*600(D)*1600(H)mm Combustion Chamber Dimensions 3000(W)*3000(D)*2400(H)mm Weight 80kg Power Supply AC220V+/-10%, 50Hz Transport Package Packed in Veneer Case Specification Refer to the specifications Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 100 Set/Month

Product Description

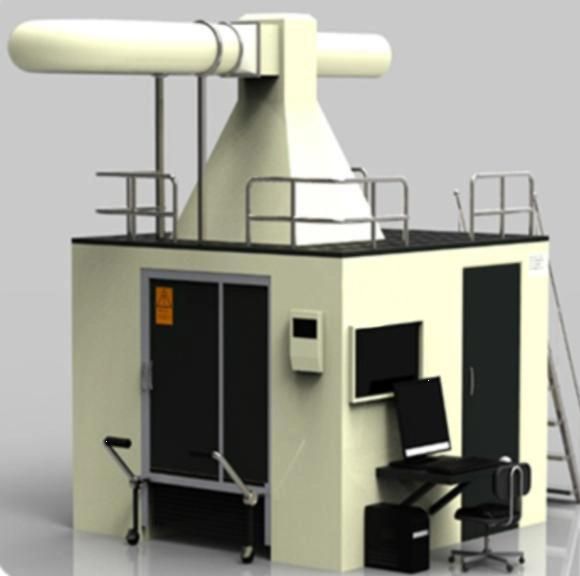

                      Test  Equipment for Building Materials and Products

Application:

• BS EN 13823 Building Material Single Burning Items, Single Burning Instrument SBI measures the flame retardant properties of building material exposed  to heat source.

• The specimen is put on the trolley beneath the ventilation system, reaction to the burner is inspected by software and viewing window.

• Mechanically we determine the combustion properties by H.R.R and S.R.R. other physical properties are monitored visually. Figra is the critical element.

• Besides, Oxygen consumption, CO, CO2 output, Smogra is also important.

Features:

• BS EN 13823 Building Material Single Burning Items, Single Burning Instrument SBI equipped with paramagnetic O2 analyser, and IR CO2 analyser.

• Monitor and figure out H.R.R, SPR, O2 consumption, and generation of CO, CO2.

• Gas flux control and digital display.

• One person can operate the instrument during test.

• RS232 interface of the control chamber can be connected to PC.

• Data acquiring and saved, display of real time temperature curve, CO2/O2 curve.

• Nice industrial design of looking and control.

• PC+ Labview software.

Standards:

• GB/T 20284-2006 Single burning test of building material or product;

• BS EN 13823 SBI measures the performance of building material, flooring material excluded, when flame attack is conducted for single item.

Specifications:

Name	BS EN 13823 Building Material Single Burning Items, Single Burning Instrument SBI
Dimension	3000(W)*3000(D)*2400(H)mm (combustion chamber) 600(W)*600(D)*1600(H)mm (control chamber)
Power	AC 220V, AC 380V, 50/60Hz
Weight	80kg (control chamber)
Air supply option	propane 95%
