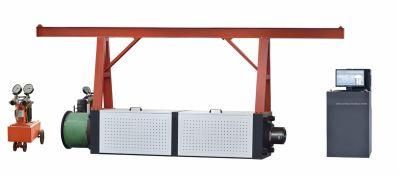

Strand Wire Prestress Relaxation Test Machine (WSC-600)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Material Testing Machine
  • Maxcapacity：600kn
  • Accuracy Grade：1
  • Loading Method：Static Load
  • Display：by Computer
  • Control：Computer Control

Base Info

  • Model NO.：WSC-600
  • Weight：750kg
  • Power Source：AC220V
  • Max. Test Force：600kn
  • Max. Tensile Space：1850mm
  • Transport Package：Wooden Case
  • Specification：2100*700*1470mm
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：10 Sets,Month

Description

Test force

Max. test force

600KN

Effective measuring range

1%-100% F.S.

Resolution

1/300000

Relative error of indication

±1%

Test Speed

Speed range

0.05-25mm/min

Relative error of indication

±0.5%

A long time constant deformation control error

4×10-4/24h

Displacement

Range

0-200mm

Resolution

0.001mm

Relative error of indication

±5%

Mainframe

Maximum space stretching

1850mm

concentricity

15%

Main frame outline diamension2100×700×1470mmWeight750Kg
