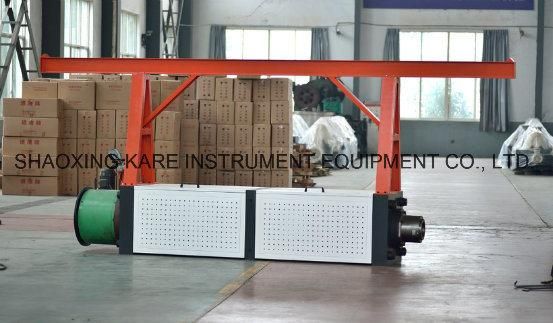

Static Load Anchorage Force Test Machine (MGW-6500)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Material Testing Machine
  • Maxcapacity：6500kn
  • Accuracy Grade：1
  • Loading Method：Static Load
  • Display：by Computer
  • Control：Computer Control

Base Info

  • Model NO.：MGW-6500
  • Weight：3800kg
  • Power Source：AC380V
  • Pump：Liuzhou Pump or Henan Pump for Selection
  • Piston Stroke：200mm
  • Transport Package：Wooden Case
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：5sets,Month

Description

Model & specification

MGW-6500

Max. test force

6500KN

Measuring range

4%-100% (full range without setp division equivalent three-step)

Measuring accuracy (test force)

Be superior then ±1% of value display

Measuring accuracy

0-200mm

Displacement mesuring range (displacement)

±1%

Repeatability

±0.5%

Relative resolution

±0.5%

Poston stroke

200mm

Tensile space

3800mm
