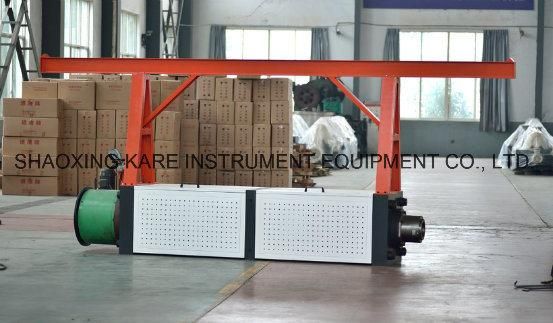

Static Load Anchorage Force Test Machine (MGW-5000)
SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.- Type：Material Testing Machine
- Maxcapacity：5000kn
- Accuracy Grade：1
- Loading Method：Static Load
- Display：by Computer
- Control：Computer Control
Base Info
- Model NO.：MGW-5000
- Weight：3500kg
- Power Source：AC380V

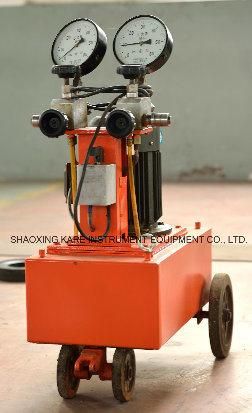

- Pump：Liuzhou Pump or Henan Pump for Selection
- Piston Stroke：200mm
- Transport Package：Wooden Case
- Origin：China
- HS Code：9024800000
- Production Capacity：5sets,Month
Description
Model & specification
MGW-5000
Max. test force
5000KN
Measuring range
4%-100% (full range without setp division equivalent three-step)
Measuring accuracy (test force)
Be superior then ±1% of value display
Measuring accuracy
0-200mm
Displacement mesuring range (displacement)
±1%
Repeatability
±0.5%
Relative resolution
±0.5%
Poston stroke
200mm
Tensile space
3400mm
