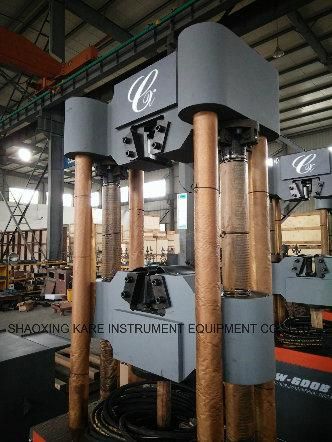

0.5 Grade Computerized Electro-Hydraulic Servo Universal Testing Machine (CXWAW-600B)
SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.- Type:Universal Testing Machine
- Maxcapacity:600kn
- Accuracy Grade:0.5
- Display:Computer
- Control:Computer Control
- Weight:2500kn
Base Info
- Model NO.:CXWAW-600B
- Power Source:AC380V
- Oil Cylinder Position:Under
- Column Qty:4
- Lead Screw Qty:2
- Transport Package:Wooden Case
- Origin:Zhejiang
- HS Code:9024101000
- Production Capacity:20 Sets,Month
Description
CXWAW-500(600)BMax. testing force 500KN (600) Measuring range 5~500KN (6~600KN) Force accuracy ±0.5% Max. tensile test space ≥700mm

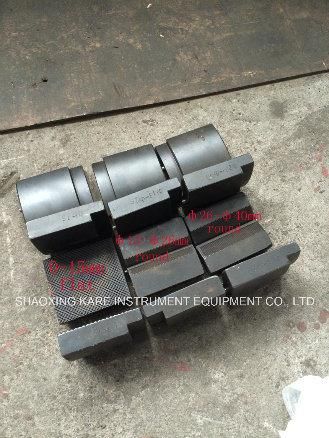

≥670mm Flat sample holding thickness 0-15mm Diameter of round specimen 13-40mm Piston stroke 250mm Upper and lower platen size (mm) Φ235 Bending test pressed rolling distance 100~600mm Tensile and compression space between two columns ≥565mm Max. platen rise speed ≥70mm/min Max. moving beam speed ≥300mm/min Motor power ≈2.1KW Main body dimension (L×W×H) (mm) 880×600×2240 Control & measurement cabinet dimension(L×W×H) (mm) 1080×650×1200 Weight ≈2500Kg Noise ≤75dB





≥670mm
