• Model NO.：CXDL-50
• Weight：200kg
• Power Source：AC220V
• Measuring Relative Error (No Higher Than：±1%
• Effective Test Stroke ：0-730mm
• Transport Package：Wooden Case
• Origin：Zhejiang
• HS Code：9024101000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. CXDL-50 Weight 200kg Power Source AC220V Measuring Relative Error (No Higher Than ±1% Effective Test Stroke  0-730mm Transport Package Wooden Case Origin Zhejiang HS Code 9024101000 Production Capacity 30 Sets/Month

Product Description

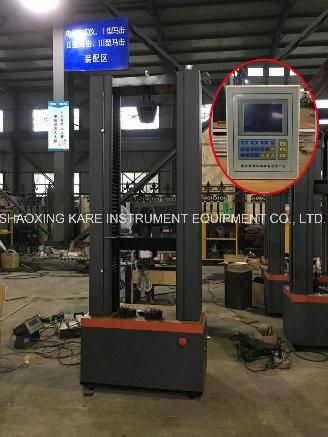

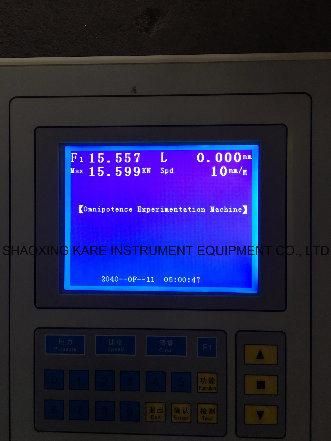

Model CXDL-50 Electronic Tensile Testing Machine, electronic universal testing machine UTM adopts DC speed regulating servomotor and reduction gears as the power source. It real-time displays test data and test status with LCD module. Professional designed servo control system realizes the PWM pulse-width modulation control mode. It really comes up with test speed closed-loop control mode. It is controlled by single chip automatically control.

CXDL-50 Electronic Tensile Testing Machine, electronic universal testing machine UTM could be used for measurement and test of mechanical property and analytical study of metal, nonmetal and composite material. It is a necessary equipment for manufacture, construction unit, product quality supervision and inspection bureau and building material test department. It also could be used in the university for teaching.

CXDL-50 Electronic Tensile Testing Machine, electronic universal testing machine UTM is widely used in fields of aerospace, petrochemical industry, machinofacture, wire, cable, weave, fiber, plastic, rubber, ceramics, food, medicinal packing, aluminum plastic tube, geotextile, film, wood, paper, metallic material and manufacturing.

You can record the max. Test force, fracture force value, yield value, max. Compression value manual. Calculate the extension percentage, strength, and other test data manual. You can connect it to the computer with RS232 port and deal with the test data.

It has the protection device like Position limiter; Emergency switch; The control system can protect automatically once over-load, over-currency, over-voltage, over-temperature.

Max. tensile force	50KN
Measuring relative error (no higher than)	±1%
Displacement relative error	±1%
Measuring range	2%-100% (0-10%, 0-20%, 0-50%, 0-100%)
Displacement speed	2, 5, 10, 20, 50, 100mm/min
Effective test stroke	0-730mm
Effective test width	360mm
Voltage	220V 50Hz
Outline dimension	360×380×1650mm
Weight	200Kg
