2018 Jp Fans Automatic Balancing Machines for Double Fans in Hot
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：20 Kg
- Type：Balancing Machine
- Maxcapacity：>1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：PRZD-20H
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Product Name：Automobile Cooling Fan Balancing Machine
- Application：Fans Balancing Machine
- Fans Size：650*500 mm Diameter
- Safety Cover：Automatic Door
- Power Supply：Single Phase, 220V, 50 Hz
- Max Achievable Unbalancing Amount：5 G.mm,Kg
- Operation：15′′ Touch Screen
- Certificates：Ce ISO SGS BV
- Package：One Fumigated Wooden Case
- Warranty：12 Months
- Transport Package：Packed in Fumigated Wood Box
- Specification：ISO9001: 2008 CE SGS
- Trademark：JP Balancer
- Origin：Shanghai China
- HS Code：903110009
- Production Capacity：1000 Sets,Month
Description

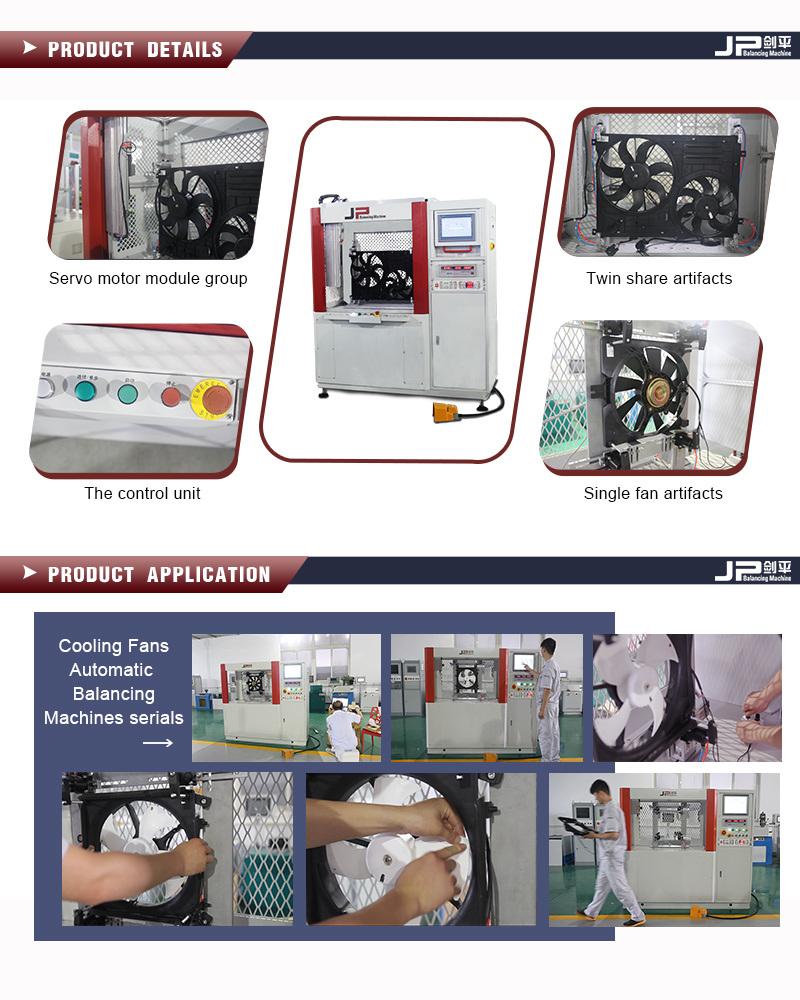

Product Features
1. Automatic Cover for safety protection
2. 12-inch Touch Screen
3. Advanced Measuring Software
4. Pneumatic tooling fixture with quick clamping
5. High precision unbalance measuring system for soft bearing
6. Wide Measuring range serves unbalance test to either single fan or double fans
7. test of the electrical performance, vibration or yaw is possible for the rotor (Extra installation needed)
Applicaiton
Mainly used for the overall balancing of the engine cooling fna and the radiator cooling fan assembly.
Equipped with 15-inch touch screen and JP-800 measuring system, it is able to perform current test and voltage test to the workpiece besides regular measuring. Pneumatic fixtures provide quick fastening, higher efficiency, easier operation and greater convenience.
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
