• Model NO.：DH-CE-01
• Testing Before Deliver：Yes
• After-sale Customer Service：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, Guangdong
• HS Code：9027809900
• Production Capacity：300 Sets,Month

Parameter itemTechnical indexMeasuring range(0~3000N)(0-30000N/M)

Resolution



1NAccuracy of the indicating valueError of indication±1%,variation of indication≤1%Test speed(12.5±2.5)mm/minDegree of parallelism for the upper and lower pressure plates<0.05mmThe standard pressure plate¢100mmThe maximum distance between upper and lower pressure plates.about 70mmDisplaying modeLCD display in EnglishPrinting function



High-speed thermal printer(printing content: serial number,the maximum value,the minimum value,peak value ,average value,etc)

Working power supplyAC220V 50HzMachine weightabout 45kgSize360mm × 330mm × 550mmDesign standardsCNS2956,JISP8126,TAPPIT472,GB/T2679.6-1996,GB/T6548-1998,GB/T6544-2008



Standard configuration: a piece of clamp



Optional configuration: edge pressure sampler; ring pressure sampler, ring pressure center plate; flat pressure fixture; bonding strength fixture (optional)



Edge pressure test sampler: mainly used for the sampling of edge pressure test and peel test



The technical parameters of the edge pressure test sampler:



The maximum thickness of sample:18mm

Standard length of sample: 100(80)mm±0.5 mm

Standard width of sample: (25±0.5)mm

Outline dimension: 390mm(length)×350mm(width)

Product net weight: ≤9.0kg

Product gross weight: ≤13.0kg



Ring pressure test sampler: The ring pressure special sampler is suitable for cutting the sample required for the paper ring pressure strength and the flat pressure strength test of corrugated core paper, conforms to the relevant provisions of the QB/T1671 standard, and is a necessary and dedicated sampler for paper ring pressure strength testing (RCT).The dedicated sampler is an ideal assistance tool for paper making, packaging, scientific research, and quality inspection,etc.



The main technical parameters of the ring pressure test sampler:

The sampling size: 152mmX12.7 mm

The sampling thickness: (0.1~1.0)mm

Outline dimensions (length X width X height),mm:380*120*250

Weight: about 10kg

Feature: Punching sampling, high sampling accuracy

Packaging & Shipping:

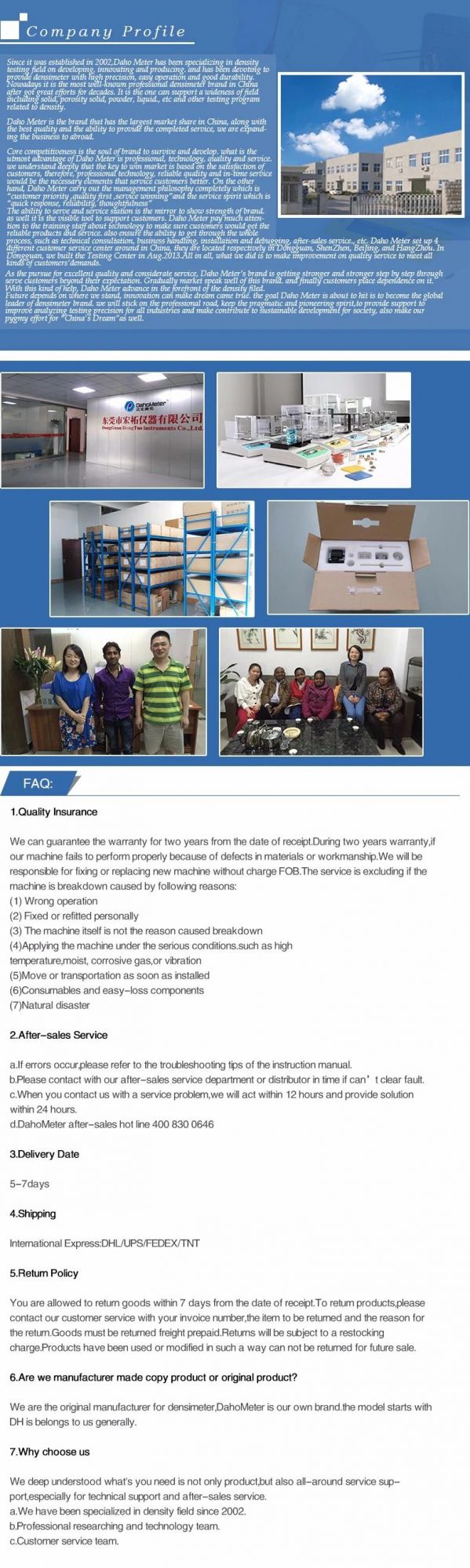

Company Information:
