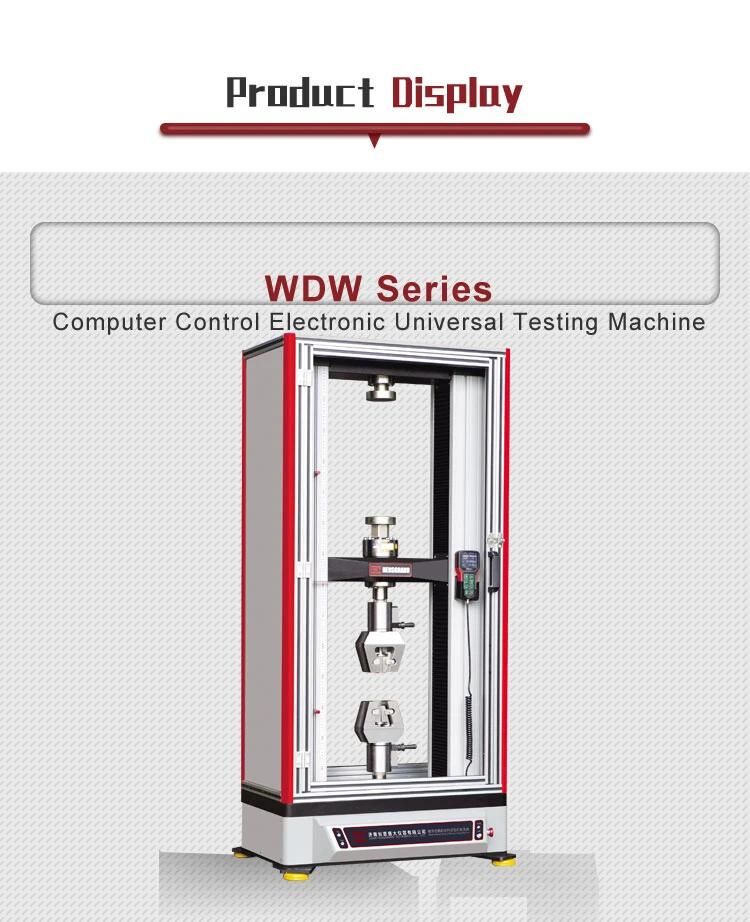

10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：WDW-10,20,50,100,200,300E
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：None
  • Certifications：CE and ISO
  • Load Accuracy：1 Class or 0.5 Class for Choice
  • Load Resolution：1,300000
  • Resolution of Deformation：0.04um
  • Test Speed：0.05-1000 mm Per Min Stepless Arbitrary Setting
  • Compression and Tensile Space：800 mm(Can Be Customized)
  • Test Width：400mm
  • Grips：Wedge Type or Customized
  • Rang of Deformation：4 to 100 Percent Fs
  • Load Range：2 to 100 Percent Fs
  • Transport Package：Standard Wooden Export Box
  • Specification：100N-600KN for choice
  • Trademark：HST or OEM
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：100 Sets Per Month

Description

Hall switch10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine

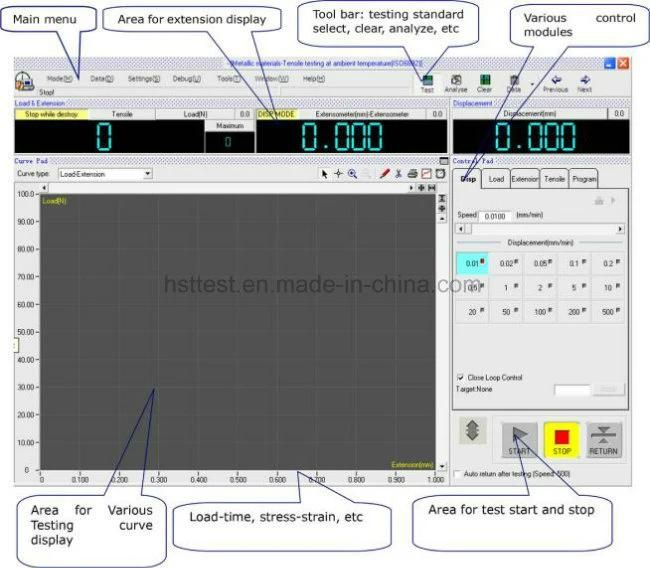

Machine software show:
10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine

Certifications show:
10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine
EXHIBITON
10/20/50/100/200/300kn Computer Universal Tensile Strength Testing MachineOUR Customers all over the world
10/20/50/100/200/300kn Computer Universal Tensile Strength Testing MachineTransactions trade:
CERTIFICATE

10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine

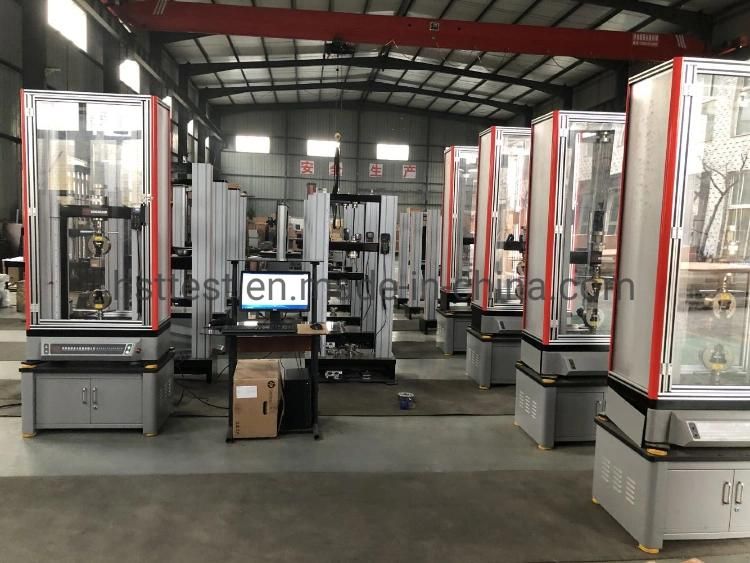

Machines in store and Company show:
10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine10/20/50/100/200/300kn Computer Universal Tensile Strength Testing Machine
Dear Customer, we have Electronic universal testing machines from 200N to 600KN for choice. All the machines could be OEM and customized.
For more informations please send enquiry directly to Sunny:Jinan Hensgrand Instrument Co., Ltd
ADD: NO. 4915, West Jingshi Road, Jinan 250012, PR CHINA.
Website: http://hsttest.en.made-in-china.com
