• Model NO.：GW-019B
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-019b
• Impact Energy：(En)200j, (BS, ANSI)100j
• Impact Head：20+,-0.2kg, 22.7+,-0.23kg
• Drop Height：1200mm
• Speed Meter：LCD Display
• Dimension：69*65*188cm
• Power：AC 220V, 50Hz
• Transport Package：Wooden Case
• Specification：69*65*188cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. GW-019B Loading Method Dynamic Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-019b Impact Energy (En)200j, (BS, ANSI)100j Impact Head 20+/-0.2kg, 22.7+/-0.23kg Drop Height 1200mm Speed Meter LCD Display Dimension 69*65*188cm Power AC 220V, 50Hz Transport Package Wooden Case Specification 69*65*188cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Sets/Year

Product Description

Safety footwear impact testing machine/equipemnt(GW-019B)

Brief introduction:
This equipment is mainly used for determination of impact resistance test safety shoes toes with a certain kinetic energy, and a certain height, to impact test of the steel toe of safety shoes, testing its subsidence degree, in order to understand the quality of safety shoes.

Technical Specifictions::

Model	GW-019B Safety footwear impact testing machine
Impact Energy:	(EN)200J,(BS,ANSI)100±J
Impact head:	20±0.2kg & 22.7±0.23kg
Drop height:	1200mm
Speed meter:	LCD display, accurately
Dimension:	690*650*1880mm
Weight:	205KGS
Power:	AC220V
This design with prevent the secondary impact and safety  case



Standard for:
GB/T20991-2007 5.4,ISO EN 12568,CSA,JIS

Attached accessories:
3pcs hexagon wrench
3pcs standard modeling clay moulds
5pcs modeling clay




What about the product quality?

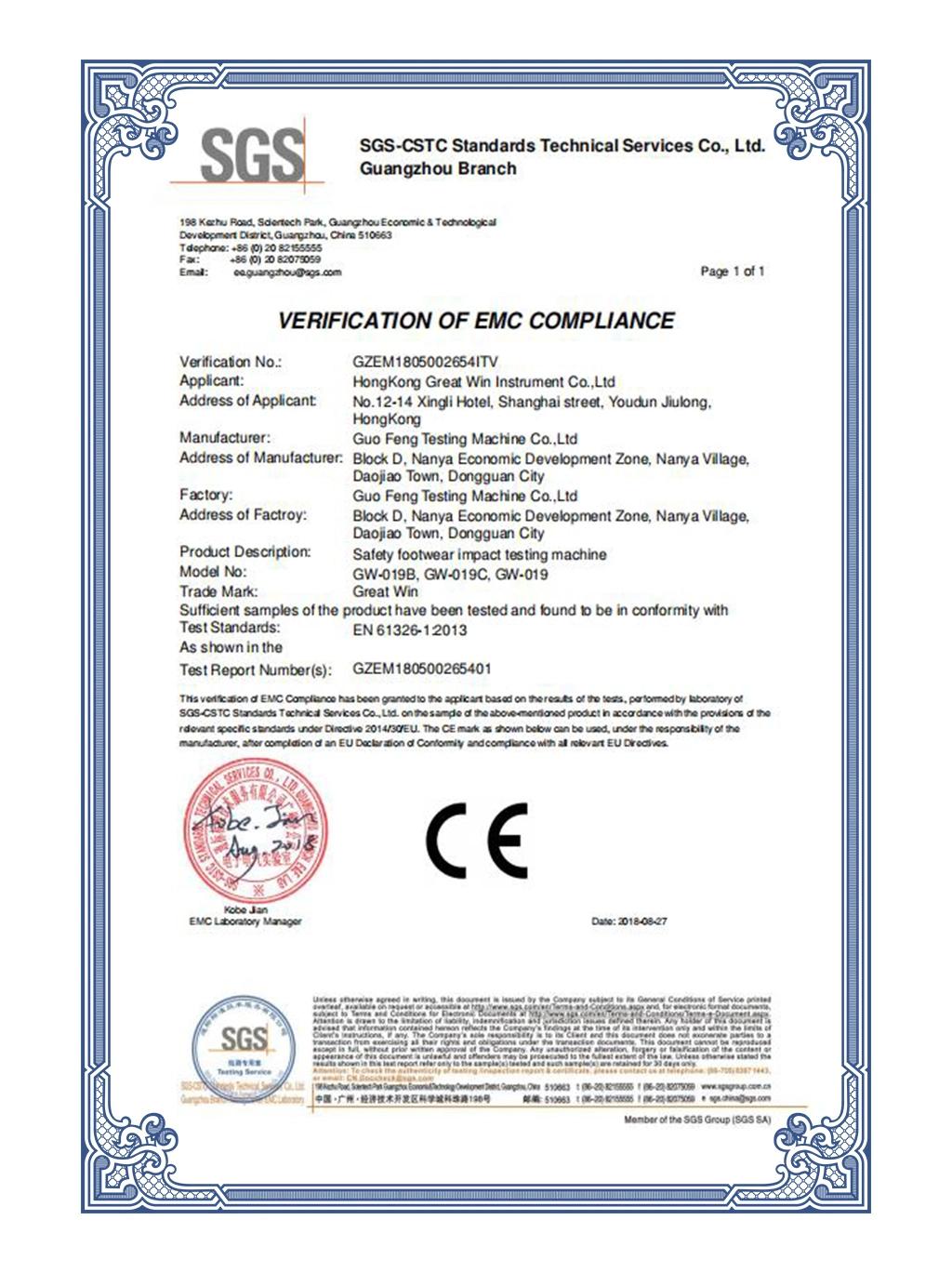

For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
