• Model NO.：STSZ-1Q
• Control：Manual Control
• Weight：46kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Specimen Size：39.1(Dia)×80mm
• Max. Axial Load：10kn
• Lift Speed Range(mm/Min)：0.003 to 4.800
• Max. Stroke：35mm
• Max. Confining Pressure：1MPa
• Max. Back Pressure：0.6MPa
• Pore Water Pressure：0-1MPa
• Volume Change Range：0-50ml, Min. Division 0.1ml
• Axial Displacement Range：0-30mm
• Transport Package：Export Standard Package
• Specification：610*550*590
• Trademark：YuFeng
• Origin：Zhejiang, China
• HS Code：9031809090
• Production Capacity：200PCS,Month

Basic Info.

Model NO. STSZ-1Q Control Manual Control Weight 46kg Power Source AC220V Oil Cylinder Position Under Specimen Size 39.1(Dia)×80mm Max. Axial Load 10kn Lift Speed Range(mm/Min) 0.003 to 4.800 Max. Stroke 35mm Max. Confining Pressure 1MPa Max. Back Pressure 0.6MPa Pore Water Pressure 0-1MPa Volume Change Range 0-50ml, Min. Division 0.1ml Axial Displacement Range 0-30mm Transport Package Export Standard Package Specification 610*550*590 Trademark YuFeng Origin Zhejiang, China HS Code 9031809090 Production Capacity 200PCS/Month

Product Description

STSZ-1Q 10KN Light-duty Soil Triaxial Test Machine / Apparatus
Product Description

Application: to measure soil shearing strength, thus analysizing soil stability and providing data

for construction projects. Perform UU, CU and CD triaxial tests.

Specification:

1. Specimen size: 39.1(Dia)×80mm
2. Max. axial load: 10KN
3. Lift speed range(mm/min): 0.003~4.800
4. Max. stroke: 35mm
5. Max. confining pressure: 1MPa
6. Max. back pressure: 0.6MPa
7. Pore water pressure:0-1MPa
8. Volume change range:0-50ml, min. division 0.1ml
9. Axial displacement range: 0-30mm

Packaging & Shipping


Company Information




Our Customers





FAQ

Are we a factory?

Yes,Factory + trade (integration),35years focusing on test instruments field.

What's the product delivery time?
Delivery time from 7 days-15 days according to the products.

What's your payment terms?
We accept T/T, L/C or Western Union.

What's your terms of trade?
We accept EXW, FOB, CNF, CIF, AND SO ON.

What's your services?
For our products, we will give your professional guidance ( Product introduction  and operation  manual )

Do you have any exhibitions?
Yes. We have many exhibitions in domestic and abroad. If you come to canton fair, pls contact with us, we will tell you booth No.


Our advantages

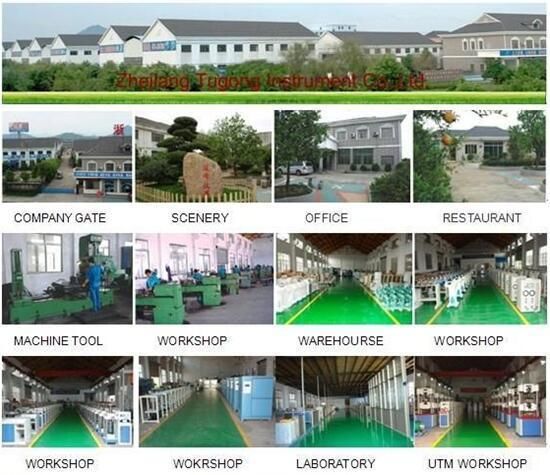

Company View
