• Model NO.：16-T0012,D
• HS Code：90248000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. 16-T0012/D HS Code 90248000 Production Capacity 10 Sets/Month

Product Description

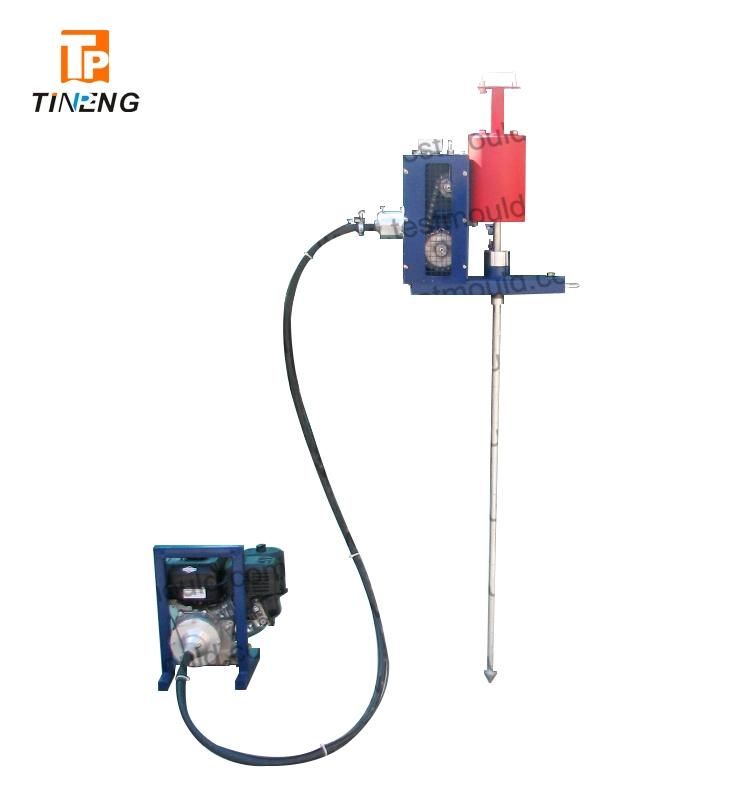

Motor operated Dynamic cone penetrometer

General description
    The machine is designed to perform mechanical resistance tests on soils.
    The test consists of letting a 20 kg hammer (or 30 kg) drop freely for 20 cm on rods diameter 22 mm, which push a conical standard point into the ground. Recording the number of blows necessary to make the point penetrate each 10 cm into the ground itself.


• The apparatus comprises a 4 stroke engine which drives, through a fl exible shaft, the lifting mechanism, a
20 kg weight, a 10 kg supplementary weight, 10 rods, 5 cones each of 500 and 1000 mm2 size, and rod lifting
device.
• Accessory 16-T0012/D7 Tripod to make easier the use of the apparatus.
• 1.9 kW 4 stroke engine
• Driving rate: up to 45 blows/min
• One year warrantee against any manufacturing defects.




Technical data
    (1). 4 stroke motor KW1.9 97CC - 4200 rpm.
    (2). Fuel: Unleaded Petrol (or super)
    (3). Mechanical transmission with flexible cable
    (4). Max. hammer rate 45 blows/min (adjustable).
    (5). Free fall height 20 cm
    (6). Hammer weight 20 kg + 10 kg extra
    (7). Rods Ø 2.2 cm, L 100 with ref. marks each 10 cm weight 2.9 kg/m.
    (8). Point Ø 3.56 cm − β = 60° − Surface area 10 cm2
    (9). Weight motor group = 18 kg
    (10). Weight hammer group 12.5 kg
    (11). Weight extractor 12 kg
