Yf Intelligent Electric Tetragenous Direct Shear Testing Instruments

Zhejiang Tugong Instrument Co., Ltd.
  • Type：Material Testing Machine
  • Maxcapacity：1.2kn
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital

Base Info

  • Model NO.：STSJ-5A
  • Control：Digital Display
  • Weight：100-500Kg
  • Power Source：AC220V
  • Product Name：Direct Shear Testing Instrument
  • Area of Soil Sample：30cm2
  • Lever Ratio：1:12
  • Vertical Loading：50, 100, 200, 300, 400(Kpa)
  • Max. Horizontal Loading：1.2kn
  • Shear Rate：0.01~25mm,Min
  • Specimens：4 Specimens in The Same Test
  • Working Voltage：AC220V±10%
  • Transport Package：Export Wooden Case
  • Trademark：YF
  • Origin：Made in China
  • Production Capacity：200PCS,Month

Description

Area of soil sample30cm2Lever ratio1:12Vertical Loading50,100,200,300,400(Kpa)Max.Horizontal loading1.2KNShear rate5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/minSpecimens4 specimens in the same tesWorking voltageAC220VMeasurement1160x900x1160mm(main frame),
500x500x1020mm(controller),
Weight:240kg
3.Features:
1.Stainless steel working table,
2.Stepping motor as pushing mechanism,
3.High precision,
4.Low noise,
5.MCU control,
6.Variable speed displayed by the controller,
7.Easy to operate,
8.ABS vertical type controller,
9.LCD display.

3.Why Choose Us?

1, Established in 1981, with the 35 years of development, YF has development more than 14 modernized standard workshops, which be equipped with complete vehicle, gear, milling, grinding and boring machine, and covered 26,680 sqm2 workshop.
2,YF obtained the ISO9001,14001 and European Standard CE certification.
3, YF brand was authorized as "ZheJiang Famous Brand"and "National Key New High-Tech Enterprise"
4. Full range of Products, including steel soil, asphalt, concrete, cement, motor and rock, offering you one-stop purchase, save your money and delivery time.
5. Great Production Capacity, 14 modernized standard workshops
6. Experienced  Engineer & Satisfactory After-sales Service
7.MOQ:1 set is available

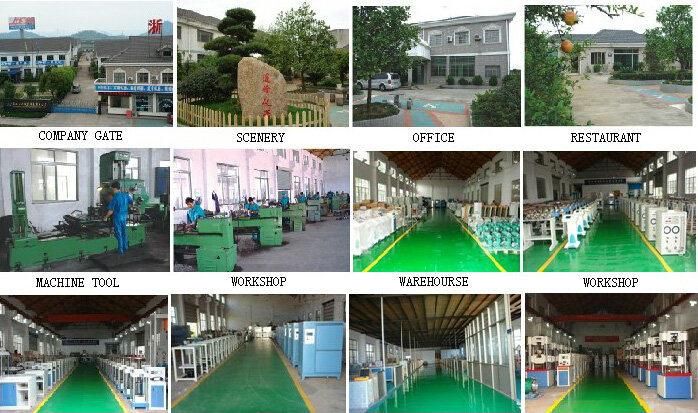

4.Production workshop
Yf Intelligent Electric Tetragenous Direct Shear Testing Instruments
5.Product Line
Yf Intelligent Electric Tetragenous Direct Shear Testing Instruments
6.Packaging
Packaging: Standard export wooden case
Delivery: About 3-20 days according to the order

Yf Intelligent Electric Tetragenous Direct Shear Testing Instruments
7.Our Service
1. Value clients, guarantee equipment quality and answer clients' questions anytime and anywhere.
2. Customizing machines according to clients' inquiry, such as different design, different brand parts, different colors, more function, designed logo etc.
3. If possible, Engineers could go to clients' factory in time for installation, training and trial production.
4. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
5.1 year free warranty, Lifetime technical service support.
8.FAQ
What's the delivery time?
Delivery time from 3 days-20 days according to the products.
What's your payment terms?
We accept T/T, L/C or Western Union.
What's your terms of trade?
We accept EXW, FOB, CNF, CIF, AND SO ON.
Do you have any exhibitions?
Yes. We have many exhibitions in domestic and abroad. If you come to canton fair, pls contact with us, we will tell you booth No..
Certificates (ISO9001 AND ISO 14001)
Yf Intelligent Electric Tetragenous Direct Shear Testing Instruments
