• Model NO.：LD-5
• HS Code：90248000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. LD-5 HS Code 90248000 Production Capacity 200 Sets/Month

Product Description

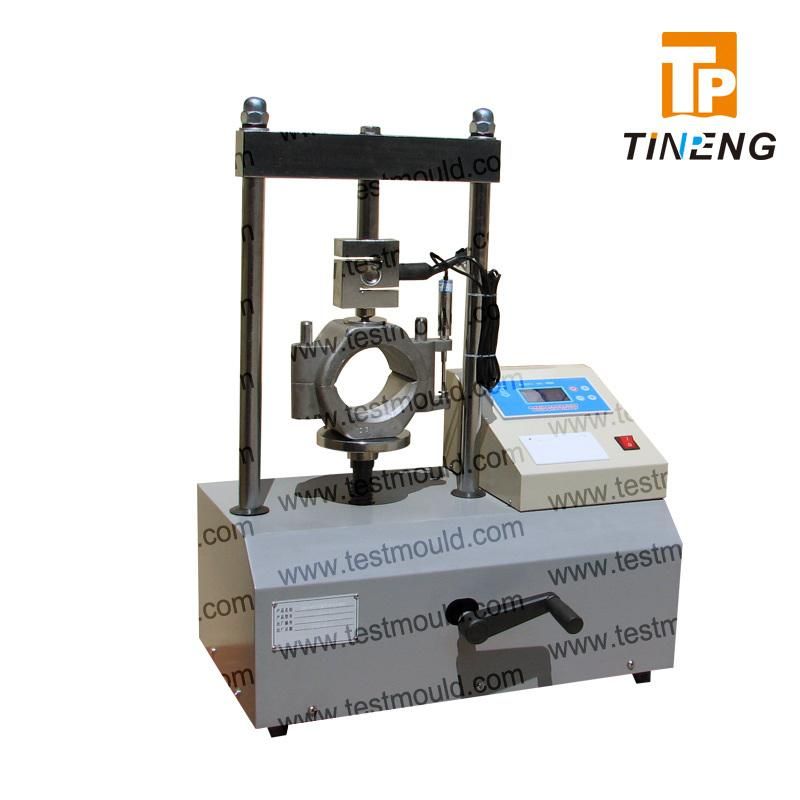

Marshall stability tester

STANDARD: ASTM D1559, AASHTO T245, NF P98-251-2, CNR NO. 30, ASTM D5581 (6" DIA. SPECIMENS)

Main features

1.  The whole experiment is controlled and tested automatically by this tester, the personnel errors are eliminated.
2.  Set with automatic protection function in over voltage, the window will show 99.99 when over voltage, the apparatus will stop forcing automatically to avoid damaging apparatus.
3.  Testing result can be printed.
4.  To load or unload all controlled automatically by the apparatus.
5.  Display adopts special chip to eliminate the flare phenomenon when testing.
6.  Add date and time when printing.

Model LD-5
Max Capacity: 50kN
Test Rate: 50.8mm/min
Cross Head Travel: 70mm
Displacement Probe Travel: 15mm
Verticial Clearance: 300mm
Horizontal Clearance: 270mm
Dimension(mm): 590(L)X310(W)X750(H)
Approx. Weight: 90kgs
Power: 220V, 50/60Hz, 1 ph, 0.5Hp,2.3A
