• Model NO.：SYD-3536
• HS Code：90248000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. SYD-3536 HS Code 90248000 Production Capacity 1000 Sets/Month

Product Description

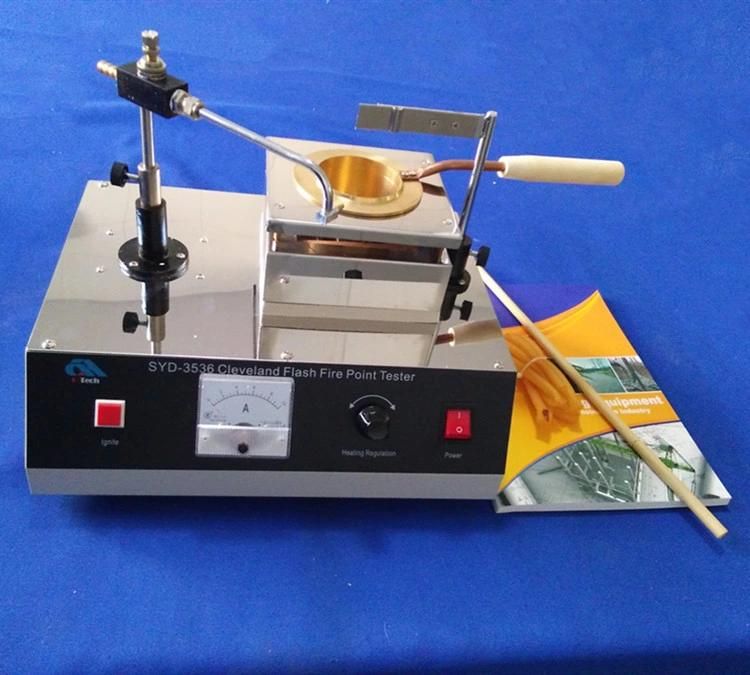

Cleveland flash and fire point tester

STANDARD: ASTM D92

    Used for determining the flash and fire point of petroleum products. It consists of a brass cup mounted on an electric heater with temperature controller. Conforming with the CE European directive, is supplied complete with double linefuse, hot plate control system and thermometer -6 +400°C.

Model SYD-3536
Power supply: AC 220V± 10%, 50 Hz;
Heating device: a quartz tube furnace heat, no fire, explosion, power 0 ~ 600W continuously adjustable
draw sweeping device: automatic sweep program
Thermometer: -6 ~ 400ºC,division 2ºC, technical conditions compliance with technical conditions GB/T514
                        thermometer liquid petroleum product testing
Ignition device: 1. ignition sources: gas (or other civil combustible gas, the same below);
                         2. nozzle diameter: 0.6 to 0.8 mm
Ambient temperature: -10 ºC ~ 50 ºC
Relative humidity: 85%
Power consumption: less than 650W
Dimensions: 350x300x400mm
Weight: 10kg
