• Model NO.：STPSY-3
• Loading Method：No
• Display：Electrical
• Control：Electrical Sand Tester
• Weight：30kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stpsy-3 Electrical Sand Tester
• Application：Detection Macro-Roughness and Sliding Resistance P
• Sand Funnel Capacity：Approximate 70 Ml
• Sand Funnel Bottom Opening Width：2.7 mm
• Sanding Belt Size：50 mm
• Moving Speed of The Sand Funnel：Approximate 1 mm,Second
• Moving Range of The Sand Funnel：Approximate 290 mm
• Outer Dimension：470X160X140 mm
• Motor Power：12V, 3.3A
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STPSY-3 Loading Method No Display Electrical Control Electrical Sand Tester Weight 30kgs Power Source AC220V Oil Cylinder Position No Product Name Stpsy-3 Electrical Sand Tester Application Detection Macro-Roughness and Sliding Resistance P Sand Funnel Capacity Approximate 70 Ml Sand Funnel Bottom Opening Width 2.7 mm Sanding Belt Size 50 mm Moving Speed of The Sand Funnel Approximate 1 mm/Second Moving Range of The Sand Funnel Approximate 290 mm Outer Dimension 470X160X140 mm Motor Power 12V, 3.3A Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

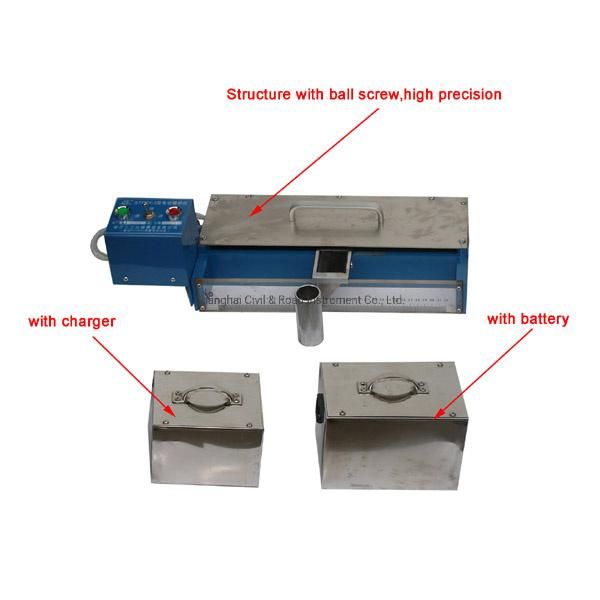

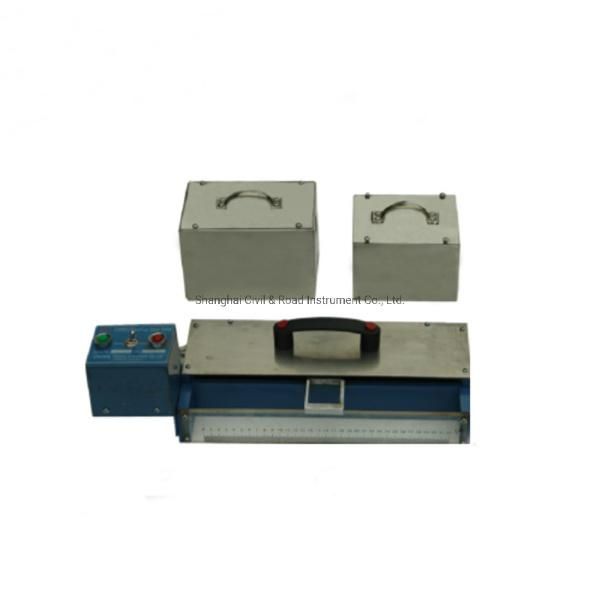

STPSY-3 Electrical Sand Tester

Product name	STPSY-3 Electrical Sand Tester
Application	Detection macro-roughness and sliding resistance property of road surface.
sand funnel capacity	approximate 70 ml
sand funnel bottom opening width	2.7 mm
Sanding belt size	50 mm
Moving speed of the sand funnel	approximate 1 mm/second
Moving range of the sand funnel	approximate 290 mm
Outer dimension	470×160×140 mm
Motor Power	12V, 3.3A
