• Model NO.：GDZJ-5S
• Weight：24 kg
• Power Source：AC220V
• Peak voltage：500-5000V continuous adjustment
• Peak error：<5%(1kV-5kV)
• Warranty：1 year
• Transport Package：Standard Export Wooden Box
• Specification：480*260*390mm
• Trademark：HV Hipot
• Origin：Wuhan, China
• HS Code：9030899090
• Production Capacity：5000set,Year

Basic Info.

Model NO. GDZJ-5S Weight 24 kg Power Source AC220V Peak voltage 500-5000V continuous adjustment Peak error <5%(1kV-5kV) Warranty 1 year Transport Package Standard Export Wooden Box Specification 480*260*390mm Trademark HV Hipot Origin Wuhan, China HS Code 9030899090 Production Capacity 5000set/Year

Product Description

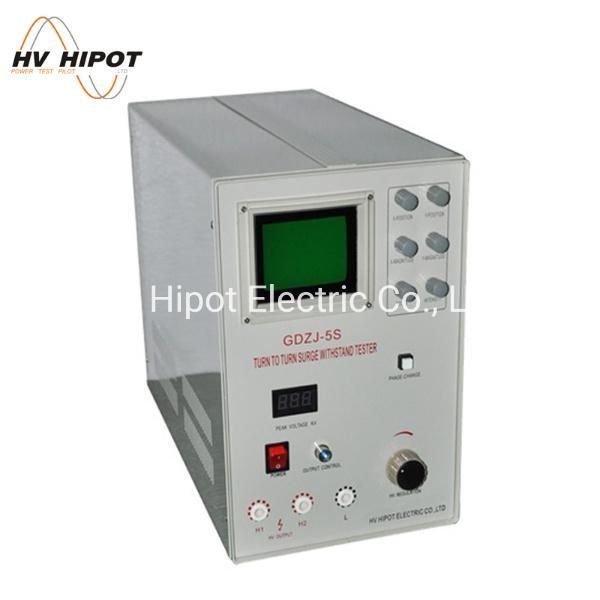

GDZJ-5S Turn to Turn Surge Withstand Tester for motor and transformer



General Information

GDZJ-5S is used to test turn-to-turn insulation strength of single phase motor, 3-phase motor, Micro motor, Special motor, electrical motor, transformer (including switching mode power supply transformer), relay and winding electrical equipment.

It can detect below faults:

• Turn-to-turn Insulation breakdown
• Corona discharge
• Winding connection mistake
• Winding disconnection
• Turn-to-turn difference
• Short-circuit between interphase,winding phase or iron core

Specifications

Peak voltage	500-5000V continuous adjustment
Peak error	≤ 5%(1kV-5kV)
Waveform rising time	0.5μS or 0.2μS
Power supply	220V±10%, 50HZ
Power consumption	≤ 100 W
Dimension	480*260*390mm
Weight	about 24kg

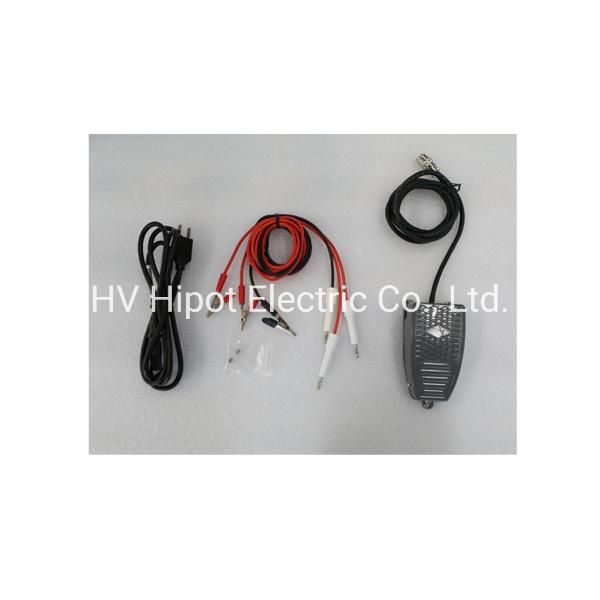

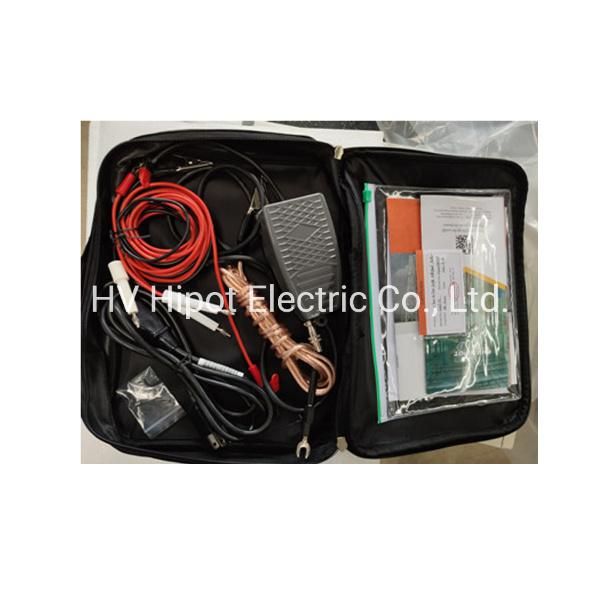

Accessories
