Helmet Goggles / Helmet Visor Shooter Testing Equipment

Dongguan Hong Tu Instrument Co., Ltd.
  • Type：Impact Testing Machine
  • Accuracy Grade：0.5
  • Display：Digital
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC220V

Base Info

  • Model NO.：HT-6023-B
  • Product Name：Helmet Goggles Helmet Visor Shooter Testing Equip
  • Testing Standard：Snell SA,K2010 En166 En168

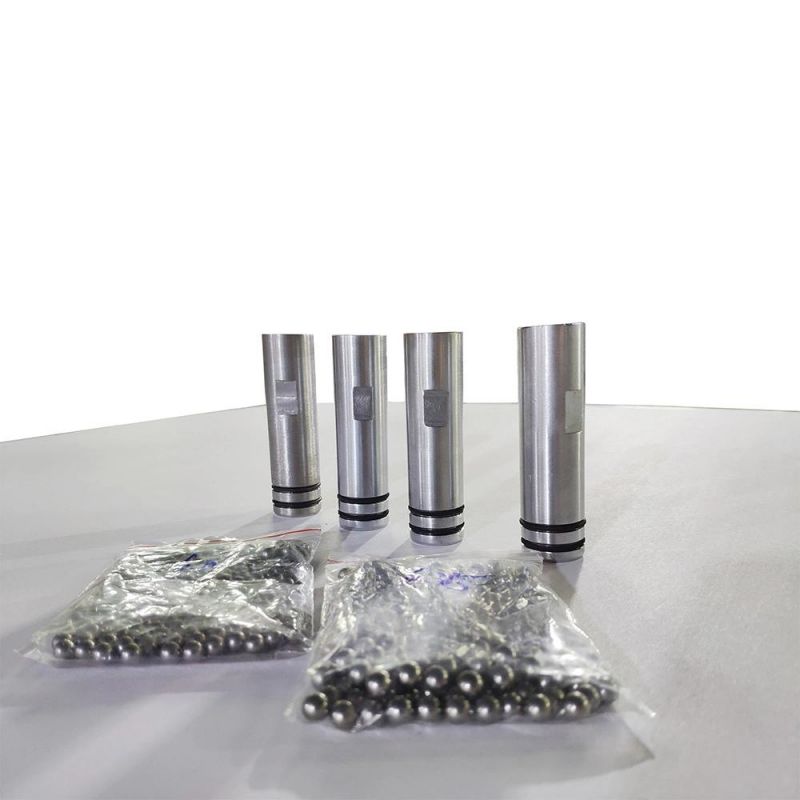

  • The Steel Ball Weight：1g, 0.86g, 1.06g
  • The Steel Ball Diameter：5.5mm, 6mm
  • Speed：45~200m,S
  • Testing Speed System：High Velocity Testing System
  • Control Ways：Touch Screen Control
  • Electricity：220V 50Hz
  • Transport Package：Wooden Case
  • Specification：GB 811-1998, SNELL SA,K 2010, DOT 218, AS1698
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：100 Sets Per Month

Description

Testing standardSNELL SA/K2010EN166EN168ANSI Z87.1WeightSteel ball 1gsteel ball 0.86gSteel ball 0.86gSteel ball 1.06gDiameter5.5mm6mm6mm6.35mmSpeed140m/s45~200m/s195m/s45~91.4m/s2.high velocity testing system, use high accurate laser testing velocity sense device
3.With the safety indicate light, when the door haven't close , the testing machine can't running testing
(double limit switch installation at the door handle position)
4.Touch screen control, with display speed : unit: ft/s, m/s, km/s
5.Headform material: silica gel , simulate person headform ( with ear , nose , mouth)
6.Compressor air source requirement : flow >500l/min, pressure >0.65Mpa
7.Electricity: AC 220V 50HZ

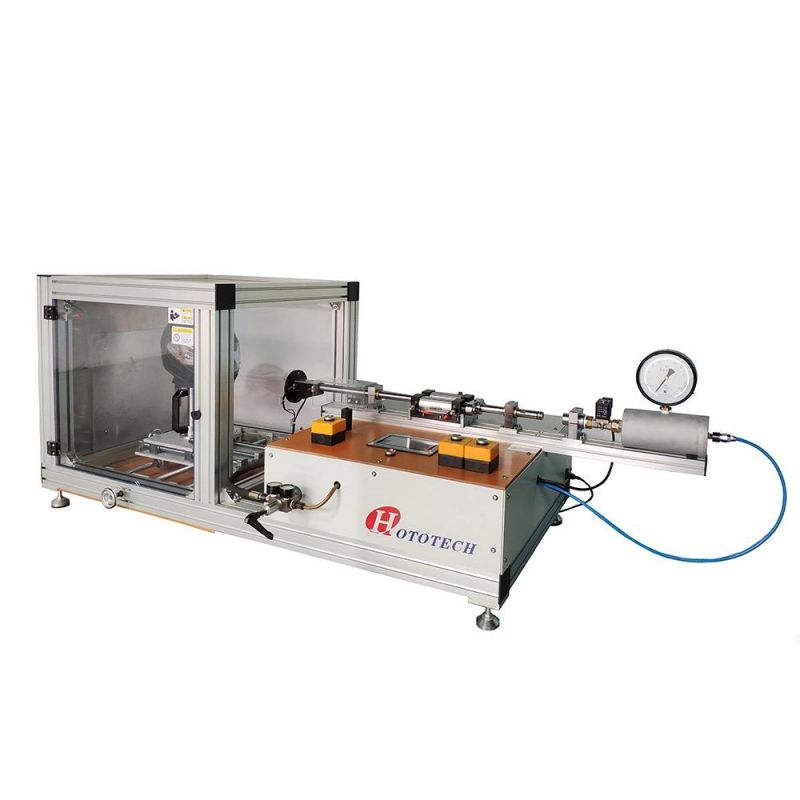

Testing Machine's picture

Helmet Goggles / Helmet Visor Shooter Testing Equipment
Helmet Goggles / Helmet Visor Shooter Testing Equipment
