High and Low Temperature Thermal Shock Chamber

Guangdong Komeg Industrial Co., Ltd.
  • Function：Reliability Test
  • Usage：Electric Component Tester, Lightning Protection Device Tester
  • Type：Electric Inductance Measuring Tester
  • Customized：Customized
  • Temp. Range：-70oc~+150oc
  • Temp. Constancy：+,-3 Oc,Min

Base Info

  • Model NO.：ESS-408SL15
  • Heater：Iron-Chrome Wire Heater
  • Blower：Centerifugal Blower
  • Observation Window：Glass Incorporating Heat Generator
  • Controller：Touch Screen Programmable Controller
  • Compressor：Semi-Hermetic Compressor(France Imported Tecumseh)
  • Cooling Mode：Water Cooled
  • Working Chamber Volume：225L
  • Transport Package：Strong Plywood Case, Meet International Standards
  • Specification：Standard and customized, ISO9001, SGS, CE, TUV, UL
  • Trademark：KOMEG
  • Origin：Dongguan, China
  • HS Code：90321000
  • Production Capacity：1000 Sets,Year

Description

Specifications Model ESS-SL225SL5225SL10408SL5408SL101000SL51000SL101000SL15Working Chamber Volume(L)2254081000Temp Rate of Change( ºC/Min)51051051015Performance -70ºC~+100ºC Rapid Temp Change -55ºC~+85ºC Full Linear ControlHumidity Constancy±0.5ºCTemp Constancy±3.0ºCExterior MaterialCold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless SteelInterior Material Stainless Steel Plate(SUS 304)Insulation MaterialRigid Polyurethane FoamSafety Devicesover pressure,over heat and over current protection for compressor, over temp. protection,CompressorSemi-Hermetic CompressorCooling ModeWater CooledControl systemBalanced Temperature & Humidity Control System(BTC type)HeaterIron-chrome wire heaterBlowerCentrifugal BlowerObservation WindowGlass incorporating heat generatorTemp SensorPt-100 ControllerTouch screen programmable controller Ambient Temp.+5ºC~+35ºCPowerAC 380V/50Hz 3phase 5 wires+ Ground wire Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available
Features of Different Cooling Mode for thermal shock chambers:

Since the cold chamber need huge cooling capacity for shocking, the chamber's cooling mode is often designed as air-cooled or water-cooled.

Air-cooled type need installation environment:
The room must be equipped with exhauster and air conditioner to make sure heat dissipation timely.
It's applied to small power products and cool areas.

Water-cooled type need installation conditions:
The customer must prepare water pipe and water tower (located outside) accordingly.
The water must be pure, or it will block the pipes and result in some maintenance trouble with time going.
It's often applied to large system with the features of better heat dissipation, longer service time, low noise but slightly higher price if count the fee of water tower and water pipes.Why Choose UsBeing a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipment are 7 x 24 hours tested before delivery. That explains why Komeg is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let Komeg's 26 years of professional experience work for you too.
High and Low Temperature Thermal Shock ChamberHigh and Low Temperature Thermal Shock ChamberHigh and Low Temperature Thermal Shock ChamberHigh and Low Temperature Thermal Shock ChamberHigh and Low Temperature Thermal Shock ChamberHigh and Low Temperature Thermal Shock ChamberHigh and Low Temperature Thermal Shock ChamberHigh and Low Temperature Thermal Shock ChamberHigh and Low Temperature Thermal Shock Chamber
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
7. Japan imported UP-10D Seamless Welding Machine, especially for copper pipe welding


Over 26 Years' Experience

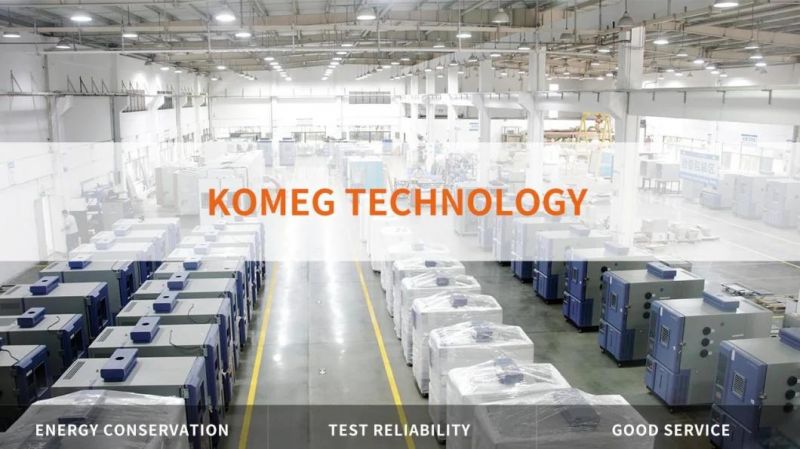

Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5, 000 square meters, with over 52 employees including 26 R&D engineers.High and Low Temperature Thermal Shock Chamber

We also have offices in Shenzhen and Songshan Lake National Hi-Tech Industrial Development Zone. Our product range includes programmable temperature and humidity chambers, thermal shock test chambers, walk-in chambers, burn-in room and aging test chambers, drying ovens, salt spray testers, as well as custom-made products for laboratories, research institutions, electronic communications and military enterprises.

Better Idea, Design and Quality
We strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands. That's why SGS, Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.

Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long
 After-sale ServiceIf you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
