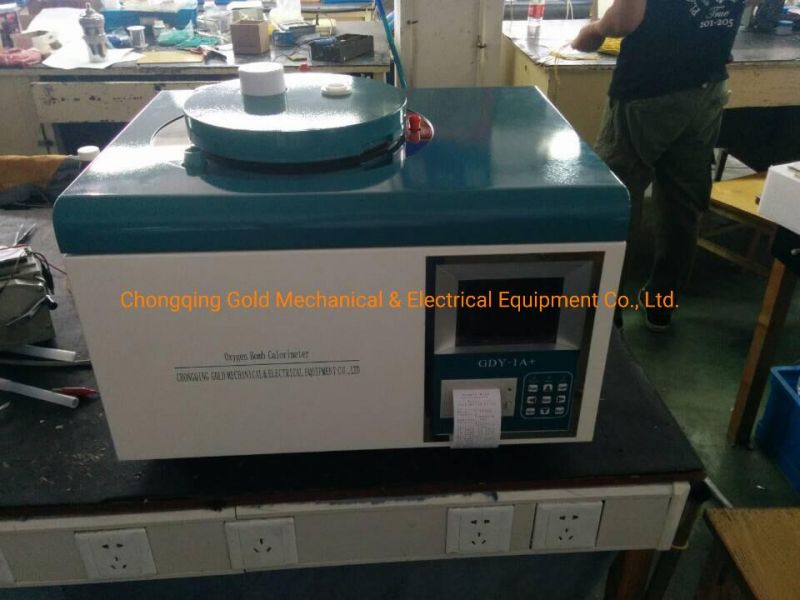

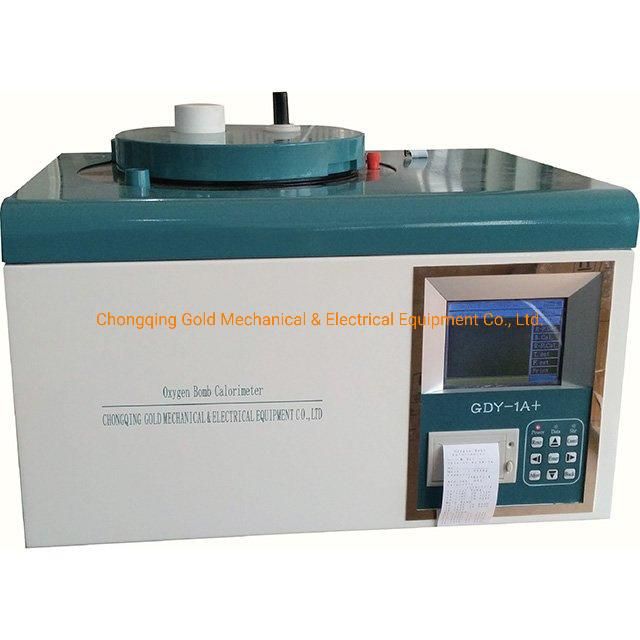

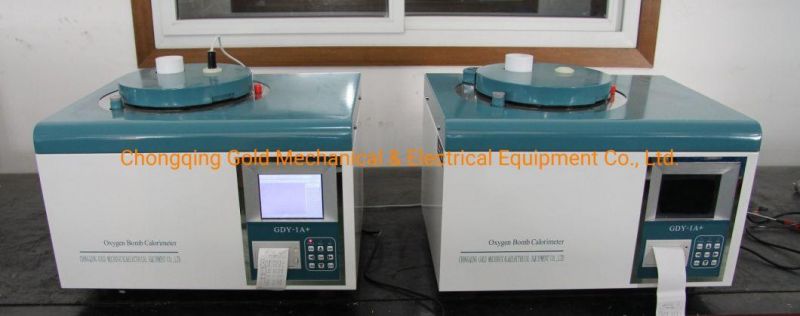

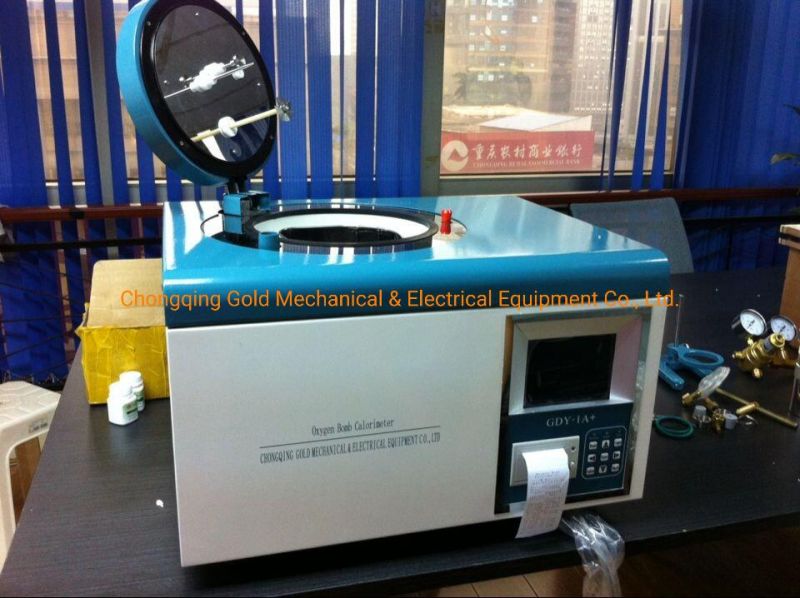

• Model NO.：GDY-1A+
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Transport Package：Wooden Case
• Specification：600mm*460mm*430mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200unit,Month

1. Heat capacity: 14400 J/K~15000 J/K2. Resolution: 0.001 K3. Measurement accuracy: ± 60J/g4. Repeatability : ≤0.2% (Grade C)5. Pressure endurance of oxygen bomb: 20 MPa6. Temperature measurement range: 10 ºC~28 ºC7. Ambient temperature: 20±5 ºC, the fluctuation is not more than 1 ºC during one test8. Data saved: 31 pieces9. Repeatability error:

 ≤0.2% (Grade C)

10. Power supply: AC 220V±5%, 50 Hz11. Dimension:600mm*480mm*460mm





I. Main technical features



1) The instrument uses a single-chip control technology, color LCD display, high-precision temperature

sensor and high-performance A / D conversion device, consisting of a high degree of automation, screen

effect is good, easy to use, convenient intelligent data compilation instrument

2) The instrument is fully automated in the testing process, after the sample in place, correct input various

parameters automatically without manual intervention to complete each test process; you can print

measurement data directly on the A4-format printer configuration after the end of the trial.

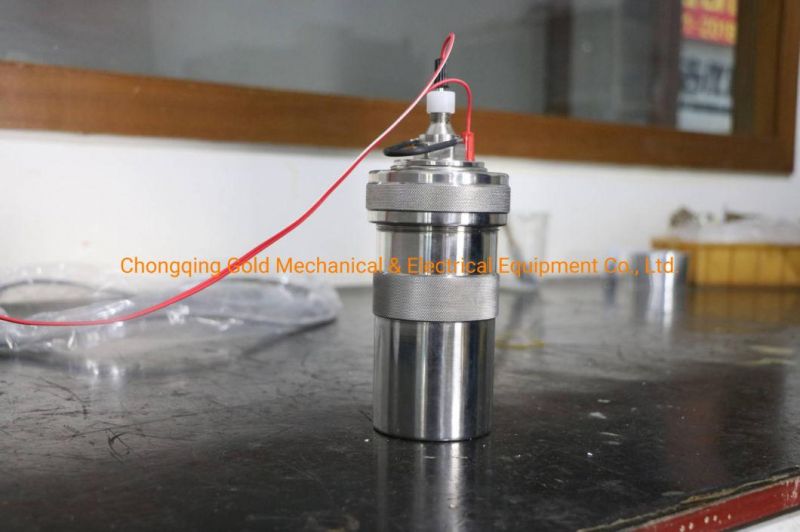

3) This instrument adopts the self sealing type oxygen bomb, all the structure is made of stainless steel,

and the strength is enough to withstand the pressure test of 20MPa at room temperature.

4) The inner tube of the instrument is made by stainless steel sheet, section of pears, put the barrel of

water was 3000 grams, water cylinder with electric blender, to ensure that the inner tube water bath temperature uniformity.

5) The instrument of the external water jacket is a double container and experiment when filled with water,

through the water jacket mixer to cylinder in uniform temperature, formed to meet the test requirements of the

constant temperature environment.



Oxygen Bomb Calorimater Selection List

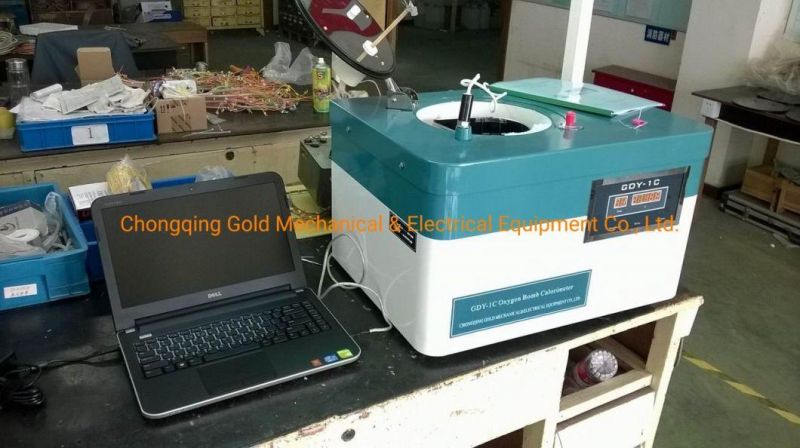

ItemGDY-1AGDY-1A+GDY-1CGDY-1DStructureDesk type all in oneDesk type computerDesk type all in oneAutomaticityManualAutomaticAtomatic(Laptop)StandardGB/T213 Test Method for Calorific Value of coal GB/T384 Test Method for Calorific Value of Petroleum Products
JJG672 Oxygen Bomb Calorimeter Q/VCZK 10 XRY Series Oxygen Bomb CalorimeterApplicationDetermine the calorific value of flammability material petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke
and paraffin, etc.Temperature
control range10ºC~ 35ºC 5ºC~40ºCAccuracy 0.001ºC Repeatability
error ≤0.2 %(C class) 0.0001ºCDisplay Digital LCD  Laptop screenTemperature
resolution (14000~15000)J/K   5MJ/kg~40MJ/kg

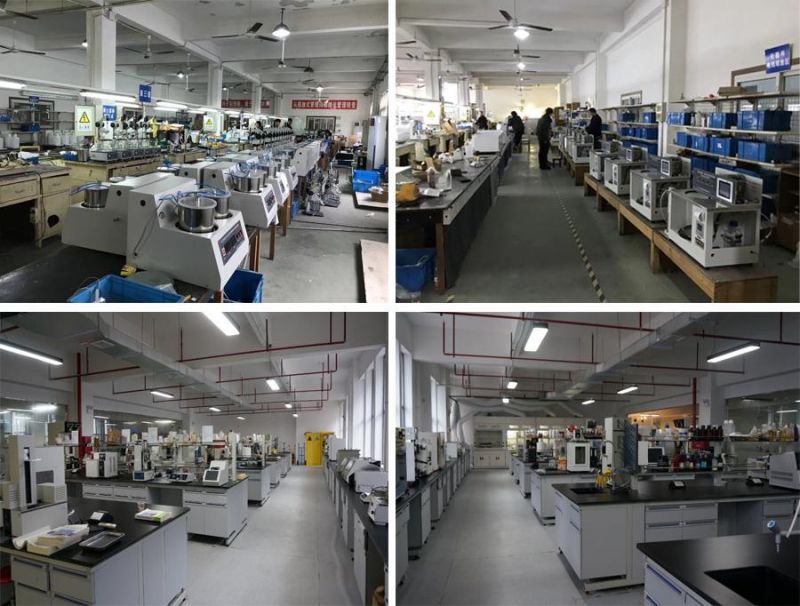

Workshop
