• Model NO.：GD-0689
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1.Standard configuration: Printer+Computer+GD 0689+Liquid injector2.Other optional parts: Solid sample injector, gas sample injector3.Sample types:  Solid, gas and liquid4.Determination method:   Ultraviolet fluorescence method(S)5.Sample injection quantity: Solid:1-20mg; Liquid:5-20μL; Gas:1-5mL6. Measuring range: 5ppm ~5000ppm(High concentration should be diluted,
 Low concentration gas sample is up to 0.1ppm)

7. Measuring range

Concentration values (ppm)Injection quantity(µL)RSD(%)5101050105100103



Temperature range:room temp~1150ºC
Temperature-controlled precision:±1ºC
Air supply requirements:High purity argon:above 99.9% ,
               High purity oxygen:above 99.9%
Power supply:AC220V±22V,50Hz±0.5Hz,1500 W
Size:Host:305(W)×460(D)×440(H)mm
Temp controller:305(W)×460(D)×440(H)mm
Weight:Host:20kg; Temp controller:40kg





• I. Main technical features

Based on Windows ( 7 , XP , Me, 98 ) English user's interface to make the operation more convenient and fast..

Operator only needs to click the mouse, and it can complete all of the parameter settings. The data collecting,

processing, storage and printing are fully controlled by computer.



Sulfur Content Tester Selection List



ItemGD-380B Sulfur Content Tester

GD-4294C X-ray

Fluorescence

Sulfur-in-Oil Analyzer

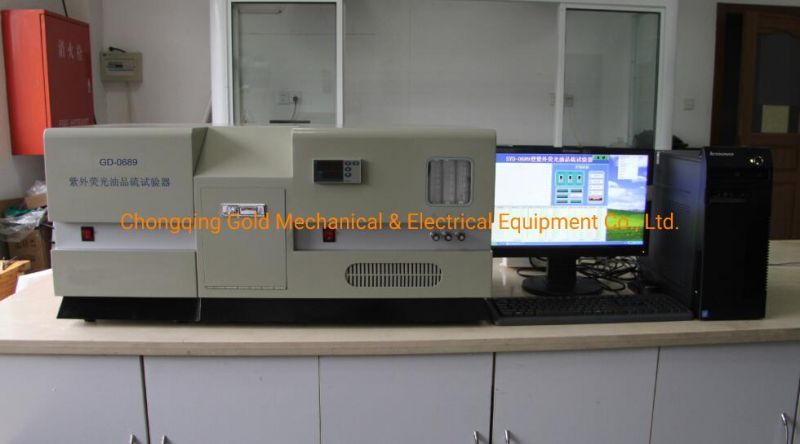

GD-0689 Ultraviolet Fluorescence
Sulfur-in-Oil AnalyzerGD-0253A Coulometric Sulfur AnalyzerPicture    Standards

ASTM D1266

Lamp method

ASTM D4294

 X-ray Fluorescence (XRF)

ISO 20846,ASTM D5453,ASTM D4629,ASTM D5762,ASTM D6069

Ultraviolet Fluorescence method

ASTM D3120,

ASTM D3246

ApplicationUsed to determine the sulfur content in
light oils(such as gasoline,kerosene)
which the Reid vapor pressure is not
higher than 600mmHg

Used to detect diesel,naphath,kerosene,

residual
oil,lubricant base oil,hydraulic oil,jet fuel,crude
oil,motor gasoline,and the sulfur content of other
distillate hydrocarbon.

Suitable to determine the total sulfur
content of liquid state hydrocarbon at
boiling range 25-400°C and the viscosity
0.2-10mm2/s at room temperature.Used
in total sulfur content range 1.0-
8000mg/kg naphth,distillate oil,engine fuel
and other oilsSuitable to determine the light petroleum
products at the boiling range 40-310°C.The
sulfur content range 0.5-1000ppm.If above
1000ppm sulfur content sample,detecting it
after attenuation.Not used in more than 10
times sulfur content of halogen
content,more 10% total nitrogen
content,heavy metal content more than
500ppm sample

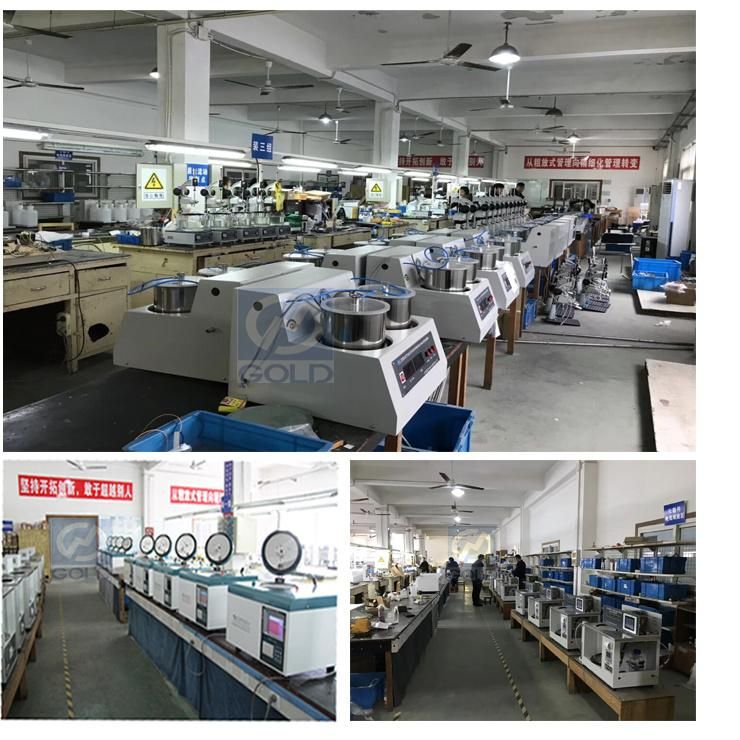

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China. Our products are sold to most countries in the world and they are highly popular because of our good

quality and after-sale service.




At present, there are more than 150 employees, of whom more than 70% are technical personnel with a college

degree or above. With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as the UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, the USA, Mexico, Kenya, Nigeria, South Africa, and other countries worldwide. And we have

gained a strong advantage and high reputation in the international market.

After several years' development, our products have become highly intelligent and wide coverage.
And our company has become one of the leading manufacturers of petroleum testing instrument and electrical testing

instrument.

Packing

Goods are packed in veneer case, which is firm and safe for overseas shipment.

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:

http://chinainstrument.en.made-in-china.com
